1. Introduction

1.1 Why autonomous navigation

Imagine a warehouse robot moving between shelves, picking up goods precisely, and avoiding forklifts and pedestrians that suddenly appear. Or consider a self-driving car traveling safely for hundreds of kilometers in complex traffic. Both depend on a carefully designed autonomous navigation system.

Traditional navigation revolves around the goal position. It combines sensing and localization, map-based planning, and local control, and corrects motion through sensor feedback. Actual systems may divide the modules and represent the map differently.
Figure: Traditional navigation revolves around the goal position. It combines sensing and localization, map-based planning, and local control, and corrects motion through sensor feedback. Actual systems may divide the modules and represent the map differently.

The core problems that autonomous navigation solves can be summarized in three questions:

  1. Where am I? (Localization)
  2. What is around me? (Perception and mapping)
  3. How should I move? (Planning and control)

These three problems are intertwined, and together they form a complete robot navigation loop.

1.2 Overview of the navigation algorithm stack

In a complete robot navigation system, sensor data passes through successive processing layers before it drives the actuators. The following diagram shows the overall data flow of the navigation stack:

%%{init: {'themeVariables': {'fontSize': '18px'}, 'flowchart': {'nodeSpacing': 24, 'rankSpacing': 32}}}%%
flowchart TB
    subgraph Sensors["Sensors"]
        direction LR
        L["LiDAR"]
        C["Camera"]
        I["IMU"]
        O["Odometry"]
    end

    subgraph Perception["Perception"]
        direction LR
        PF["Point Cloud Filtering"]
        FE["Feature Extraction"]
        SF["Sensor Fusion"]
    end

    subgraph LocalizationMapping["Localization and Mapping"]
        direction LR
        LOC["Localization<br/>EKF / PF / NDT"]
        MAP["Mapping / SLAM"]
    end

    subgraph Planning["Planning"]
        direction LR
        GP["Global Planner<br/>A* / RRT*"]
        LP["Local Planner<br/>DWA / TEB"]
        CM["Costmap"]
    end

    subgraph Control["Control"]
        PT["Path Tracking<br/>Pure Pursuit / LQR"]
    end

    subgraph Actuator["Actuation"]
        ACT["Chassis Drive"]
    end

    Sensors --> Perception
    Perception --> LocalizationMapping
    LocalizationMapping --> Planning
    CM --> Planning
    Planning --> Control
    Control --> Actuator
    Actuator -->|odometry feedback| Perception
Traditional robot navigation pipeline: mapping and localization (SLAM) from sensor data, then automatic navigation (planning + control) in the constructed environment map
Figure: Traditional robot navigation pipeline: mapping and localization (SLAM) from sensor data, then automatic navigation (planning + control) in the constructed environment map

1.3 Classical vs. learned navigation

Before the rise of deep learning, robot navigation relied mainly on modular, interpretable classical algorithm stacks. Each module has clear responsibilities and can be debugged and optimized independently. This article systematically introduces the core components of this stack.

Dimension Classical navigation End-to-end deep learning navigation
Interpretability ✅ Strong, each module can be analyzed ❌ Weak, black-box decisions
Generalization ❌ Weak, relies on a prior map ✅ Strong, transfers to new scenarios
Language understanding ❌ Does not support natural-language instructions ✅ Supported (VLN/VLA)
Debugging difficulty ✅ Low, modules can be debugged independently ❌ High, end-to-end failures are hard to trace
Computing requirements ✅ Low, can run on embedded hardware ❌ High, requires a GPU
Safety and reliability ✅ Predictable behavior ❌ Risk of out-of-distribution failures
Dynamic obstacle handling The local planning module can handle it Depends on training data coverage

This article focuses on the classical algorithm stack. For end-to-end learned navigation (VLN/VLA), see this site’s VLN Survey series.


2. Perception

Perception is the “eyes” of the navigation system. Sensors collect raw data, and processing turns it into reliable input for localization, mapping, and planning.

2.1 Sensor types and characteristics

Sensor Output data Accuracy Robustness to lighting Cost Typical rate Typical application
2D LiDAR Polar-coordinate point set High (cm level) ✅ Strong Medium 10–40 Hz Indoor mobile robots
3D LiDAR Point Cloud (xyz+intensity) High ✅ Strong High 10–20 Hz Autonomous driving
RGB-D camera Color image + depth image Medium (cm–dm level) ❌ Weak (outdoors) Low 30–90 Hz Short-range indoor use
Monocular camera RGB image Low (requires calibration) ❌ Weak Very low 30–120 Hz Visual odometry
Stereo camera Left and right RGB images Medium ❌ Weak Low–medium 30–60 Hz Visual SLAM
IMU Angular velocity + linear acceleration High in the short term ✅ Strong Extremely low 100–1000 Hz Pose estimation, fusion
Wheel odometry Encoder pulses Medium (errors accumulate easily) ✅ Strong Very low 50–200 Hz Short-term displacement estimation
GPS/RTK Latitude/longitude coordinates Standard 1–5 m, RTK cm level ✅ Strong Medium–high 1–10 Hz Outdoor global localization

LiDAR

LiDAR measures distance by emitting laser pulses and timing their return (Time of Flight, ToF). It works under any lighting condition and outputs an accurate spatial point cloud.

2D LiDAR (such as Hokuyo UTM-30LX and SICK TiM) outputs a set of polar-coordinate points on a single plane per scan, which suits flat indoor environments. 3D LiDAR (such as Velodyne VLP-16 and Ouster OS1) outputs a complete three-dimensional point cloud through multi-beam rotating scans, and is the core sensor for autonomous driving perception.

Depth camera (RGB-D)

RGB-D cameras (such as Intel RealSense D435 and Microsoft Kinect) acquire a color image and the depth of each pixel at the same time, using structured light or time-of-flight (ToF). The main limitations are that strong outdoor light interferes with structured light, and the sensing range is limited (usually 0.3–6m).

Figure: Visualization of a depth map captured by a depth camera

IMU and wheel odometry

An IMU (inertial measurement unit) combines a gyroscope, which measures angular velocity, and an accelerometer, which measures linear acceleration. Its output rate is high (100–1000 Hz), but errors accumulate through integration over time and cause drift.

IMU
Figure: IMU

Wheel odometry computes displacement from wheel encoders. It is accurate on flat ground but accumulates cumulative errors on slippery or uneven surfaces.

What the two have in common is high short-term accuracy; over the long term they must be fused with, and corrected by, other sensors.

2.2 Perception data processing

Point cloud filtering

Raw point clouds usually contain noise and irrelevant points, so they need preprocessing:

Voxel Grid Filter: Divide the point cloud space into small regular cubes (voxels) and replace the points in each voxel with their centroid. This preserves the overall shape of the point cloud while greatly reducing its density, which speeds up later processing.

Effect of voxel filtering: the original dense point cloud (left) is downsampled into a uniform, sparse point cloud (right)
Figure: Effect of voxel filtering: the original dense point cloud (left) is downsampled into a uniform, sparse point cloud (right)

Radius Outlier Removal: For each point, count the neighbors within radius r. If the count is below a threshold, the point is treated as noise and removed. This is well suited to removing isolated noise points.

Effect of radius filtering: isolated points (red) with too few neighbors are identified as noise and removed
Figure: Effect of radius filtering: isolated points (red) with too few neighbors are identified as noise and removed

Pass Through Filter: Directly crop the point cloud to a region of interest, for example keeping only points between 0.1m and 2m above the ground.

Rectangle fitting

LiDAR-based obstacle bounding-box estimation: Fit a minimum bounding rectangle to each clustered obstacle point cloud to estimate the obstacle’s length, width, orientation, and center position. This is a classic obstacle perception method in autonomous driving and is often used for vehicle detection.

Rectangle fitting on a point cloud: the clustered point cloud (left) is fitted with a minimum bounding rectangle (right, animated)
Figure: Rectangle fitting on a point cloud: the clustered point cloud (left) is fitted with a minimum bounding rectangle (right, animated)

Feature extraction

Feature extraction is crucial in visual SLAM and camera calibration:

  • Corner features: such as FAST (extremely fast) and Harris (classic)
  • Descriptors: such as ORB (rotation-invariant, binary, fast) and SIFT (scale- and rotation-invariant, accurate but slow)
  • Line features: for structured indoor environments (corridors, walls)
Corner feature detection: corner points in the image are the key elements matched in visual SLAM
Figure: Corner feature detection: corner points in the image are the key elements matched in visual SLAM

2.3 Sensor extrinsic calibration

When a system uses multiple sensors, it must know their relative poses (extrinsic parameters) in order to convert data from different sensors into the same coordinate frame.

UKF-based extrinsic estimation: Estimate the extrinsic parameters online with an unscented Kalman filter (UKF). Unlike offline calibration with a calibration target, this method can estimate and correct the extrinsics dynamically while the robot moves, which suits settings where a sensor’s mounting position may shift slightly.

Figure: Online automatic sensor calibration: the extrinsic parameters between sensors are estimated and corrected dynamically while the robot moves

Sensor time synchronization

Besides spatial calibration (extrinsics) between sensor frames, time synchronization is equally important. If the timestamps of different sensors are not aligned, the data will be “out of sync”. For example, using the IMU attitude from 0.1 seconds ago to process the current frame’s laser point cloud produces an error that cannot be ignored when the robot moves at high speed.

Time synchronization
Figure: Time synchronization

Hardware trigger synchronization: All sensors sample at the same instant, driven by an electrical signal. For example, the PPS (pulse-per-second) signal from GPS can act as a master clock that triggers the camera shutters and LiDAR scans. This is the most accurate method, with time errors down to microseconds, but it needs dedicated hardware circuitry.

Software timestamp interpolation: When hardware triggering is not feasible, stamp each sensor packet with a high-precision system clock (such as NTP/PTP), then align the data by timestamp in software. A common practice is to linearly interpolate the IMU data to the time of the nearest laser frame.

Impact of misaligned timestamps on SLAM: The robot keeps moving during a single laser scan (about 100 ms). If the IMU timestamps are not used for motion distortion correction, the scanned point cloud is distorted: the first and second halves of the scan are misaligned, which seriously degrades scan-matching accuracy. Tightly coupled systems such as LIO-SAM solve this with IMU pre-integration.

2.4 Sensor fusion

A single sensor often has limitations, and fusing several sensors lets them compensate for each other’s weaknesses.

EKF (Extended Kalman Filter) fusion: Fuses sensor data with different rates and error characteristics in one framework (for example high-rate IMU attitude, low-rate GPS position, and odometry displacement). The EKF alternates between a prediction step (propagating the state with the motion model) and an update step (correcting the prediction with sensor observations).

UKF (Unscented Kalman Filter) fusion: The EKF approximates a nonlinear system by first-order linearization, whereas the UKF uses sigma-point sampling to approximate the mean and covariance of the nonlinear transformation more accurately, giving higher accuracy in strongly nonlinear scenarios.

EKF sensor fusion data flow (using a multi-sensor robot as an example):

flowchart LR
    subgraph Sensors["Sensor inputs"]
        IMU["IMU\n100–1000 Hz\nHigh rate, accurate short-term"]
        ODO["Wheel odometry\n50–200 Hz\nAccurate on flat surfaces"]
        GPS["GPS/RTK\n1–10 Hz\nGlobal coordinates, low rate"]
        LID["LiDAR matching\n10–40 Hz\nMedium rate, provides position correction"]
    end

    subgraph EKF["EKF fusion core"]
        P["Prediction step\nKinematic model + odometry / IMU\nCovariance P grows"]
        U["Update step\nKalman gain K\nCovariance P shrinks"]
    end

    OUT["Fused pose\nPosition + velocity + orientation\nHigh-rate output"]

    IMU -->|Predict| P
    ODO -->|Predict| P
    GPS -->|Update| U
    LID -->|Update| U
    P --> U
    U --> OUT
    OUT -->|Recursive feedback| P

3. Localization

Localization solves the problem of “where am I”: given a map, the robot must estimate its position and orientation in that map in real time (its pose = position + orientation).

3.1 Problem definition

Localization problems fall into three categories:

  • Global localization: The robot does not know its initial position and must determine its pose from scratch. This is the hardest case, and particle filters handle it well.
  • Pose tracking: The approximate initial pose is known and is continuously corrected during motion. EKF/UKF specialize in this case.
  • Kidnapped robot problem: The robot is suddenly moved to an unfamiliar location during operation and must relocalize.

3.2 EKF Localization

Intuition: Imagine walking blindfolded and estimating your position from your step count and turning angle (this is “prediction”). Each time you lift the blindfold and glance at a landmark on the map, you use the landmark’s position to correct your estimate (this is “update”). The EKF (Extended Kalman Filter) is the mathematical version of this process.

State vector: $\mathbf{x} = [x, y, \theta]^T$ (position + orientation)

Two steps:

  1. Prediction step: Use the motion model (for example odometry data) to predict the pose at the next time step. The error covariance grows (uncertainty increases):
\[\hat{\mathbf{x}}_{t|t-1} = f(\mathbf{x}_{t-1}, \mathbf{u}_t)\]
  1. Update step: Use sensor observations (for example LiDAR sightings of landmarks) to correct the prediction. The error covariance shrinks (uncertainty decreases):
\[\mathbf{x}_t = \hat{\mathbf{x}}_{t|t-1} + \mathbf{K}_t (\mathbf{z}_t - h(\hat{\mathbf{x}}_{t|t-1}))\]

Here, \(\mathbf{K}_t\) is the Kalman gain, which determines whether to trust the prediction or the observation.

Intuition for the Kalman gain K: Suppose a friend tells you “you are now at the library entrance”, but your step count says you are inside the library. Whom should you trust? The size of K decides this trade-off:

  • K → 1 (trust the observation): When sensor noise is low and prediction uncertainty is large, the observation gets a large correction weight
  • K → 0 (trust the prediction): When sensor noise is high, the correction is small and the filter relies mainly on the motion model
\[\mathbf{K}_t = \mathbf{P}_{t|t-1} \mathbf{H}^T (\mathbf{H} \mathbf{P}_{t|t-1} \mathbf{H}^T + \mathbf{R})^{-1}\]

Here, $\mathbf{P}$ is the prediction uncertainty (larger P gives larger K, so the sensor is trusted more) and $\mathbf{R}$ is the sensor noise (larger R gives smaller K, so the prediction is trusted more). The figure below shows how the uncertainty ellipse changes through the predict-then-update process:

Change of the EKF uncertainty ellipse: the ellipse grows after the prediction step (uncertainty increases) and shrinks after the update step (sensor correction)
Figure: Change of the EKF uncertainty ellipse: the ellipse grows after the prediction step (uncertainty increases) and shrinks after the update step (sensor correction)

Suitable scenarios: Known map, known initial position, and a weakly nonlinear system. It is computationally efficient and suitable for real-time operation.

Figure: EKF localization simulation: the robot (blue) moves along its trajectory, the green ellipse is the estimated uncertainty, and red is the EKF localization result

3.3 UKF localization

Difference from the EKF: The EKF linearizes nonlinear functions to first order with a Taylor expansion, which causes larger errors in strongly nonlinear systems. The UKF (Unscented Kalman Filter) instead approximates the probability distribution after the nonlinear transformation with a carefully chosen set of sigma points. It needs no derivatives and is more accurate.

Sigma-point sampling: Draw $2n+1$ sigma points from the current mean and covariance, propagate them through the nonlinear function, and recompute the mean and covariance.

✅ Higher accuracy than the EKF, especially for motion models with strong nonlinearity ❌ Slightly higher computational cost than the EKF (about 2–3 times)

Figure: EKF vs. UKF simulation: the UKF's pose estimate (right) converges more accurately in strongly nonlinear scenarios

3.4 Particle filter localization

Intuition: Use thousands of “particles” (each one a hypothesis about the pose) to represent the probability distribution of the robot’s position. Each particle moves according to the motion model (with added random noise), and then receives a score (weight) based on the sensor observation: the closer a particle is to what is actually observed, the higher its weight. Finally, resampling discards low-weight particles and duplicates high-weight ones.

Figure: Particle filter localization simulation: the initial particles are uniformly distributed (global localization) and gradually converge to the true position as the robot moves and observes

AMCL (Adaptive Monte Carlo Localization): The widely used particle-filter localization package in ROS. It adapts the number of particles, reducing it once localization has converged to save computation.

The following figure shows the three core stages of the MCL algorithm:

Three stages of particle filtering (MCL): (1) particles spread out after the motion update, (2) observation weighting (larger particles = higher weight), (3) after resampling, the particles concentrate near the true position
Figure: Three stages of particle filtering (MCL): (1) particles spread out after the motion update, (2) observation weighting (larger particles = higher weight), (3) after resampling, the particles concentrate near the true position

MCL algorithm flow:

flowchart TD
    INIT["Initialization:\nSpread particles uniformly\n(global localization)\nor sample a Gaussian\n(known initial pose)"]
    MOTION["Motion update (sampling)\nMove each particle with the motion model\nAdd random motion noise"]
    OBS["Observation weighting\nUsing sensor data (laser/RGB-D)\nCompute each particle's observation probability\nwt = p(zt | xt, map)"]
    NORM["Normalization\nAll particle weights sum to 1"]
    RESAMP["Resampling\nDraw N particles with replacement, by weight\n(low weights are dropped, high weights are duplicated)"]
    EST["Pose estimation\nTake the highest-weight particle / weighted mean"]
    NEXT["Next time step"]

    INIT --> MOTION
    MOTION --> OBS
    OBS --> NORM
    NORM --> RESAMP
    RESAMP --> EST
    EST --> NEXT
    NEXT -->|New motion command| MOTION

Resampling details: Naive random resampling causes loss of particle diversity (the same particle is copied many times). Systematic resampling avoids this: it picks a random starting point in $[0, 1/N]$ and then samples N times at equal intervals, so each interval is sampled exactly once. This effectively prevents diversity loss, and the computational complexity remains $O(N)$.

AMCL’s adaptive particle count (KLD sampling): A fixed particle count wastes computation (once localization has converged, so many particles are unnecessary) and is unsafe (too few particles at initialization may miss the true position). KLD sampling computes the required number of particles dynamically from the volume of state space covered by the current particle set: the more spread out the particles are (the more grid cells are covered), the more particles are needed; once localization converges and the particles concentrate in a few cells, the required count drops accordingly. A typical AMCL range is 100–5000 particles.

✅ Supports global localization (parallel multi-hypothesis tracking, so it can handle the kidnapped robot problem) ✅ Handles nonlinear systems well, with no linearization needed ❌ High computational cost when the particle count is large ❌ Efficiency drops in high-dimensional state spaces (curse of dimensionality)

3.5 Scan-matching localization

Scan matching is another approach to localization: directly align the current LiDAR scan with a reference map (or with the previous scan) to solve for the pose transformation.

NDT registration

Idea: Divide the reference point cloud space into a regular grid and represent the points in each cell with a normal distribution (mean + covariance). The probability of the current scan’s points under these distributions is the matching score, and the pose is optimized to maximize it.

✅ Robust to changes in point cloud density ✅ Computationally efficient (especially in 3D scenes) ✅ One of the mainstream methods for autonomous-driving localization (HD-map-based localization)

NDT matching principle: alignment of the reference map (grid + normal distributions) with the current scan
Figure: NDT matching principle: alignment of the reference map (grid + normal distributions) with the current scan

ICP registration

Idea: Pair each point in the current point cloud with its nearest point in the target point cloud, compute the rigid transformation (rotation + translation) that minimizes the distance between the matched pairs, and iterate until convergence.

✅ Simple and intuitive, with high accuracy (after convergence) ❌ Sensitive to the initial pose and prone to local optima ❌ High computational cost, and real-time performance depends on point cloud density ❌ Prone to degeneracy in repetitive structures such as corridors

ICP iterations: the green current-frame point cloud is gradually aligned with the red reference point cloud, and the distance between nearest-point pairs shrinks with each iteration
Figure: ICP iterations: the green current-frame point cloud is gradually aligned with the red reference point cloud, and the distance between nearest-point pairs shrinks with each iteration

3.6 Comparison of localization methods

Method Suitable scenarios Global localization Computational cost Nonlinearity handling ROS support
EKF Known initial pose, weak nonlinearity ❌ Low First-order approximation robot_localization
UKF Known initial pose, moderate to strong nonlinearity ❌ Medium Sigma-point approximation robot_localization
Particle filter / AMCL Global localization, unknown initial pose ✅ Medium–high No approximation amcl
NDT Autonomous driving, high-precision map localization Requires initialization Medium — ndt_cpu
ICP Fine registration, short-range matching ❌ Medium–high — pcl_ros
Figure: Comparative simulation of EKF, UKF, and particle filter localization: accuracy and convergence speed in the same scenario

4. Mapping & SLAM

SLAM (Simultaneous Localization and Mapping) solves a chicken-and-egg problem: localization requires a map, and mapping requires knowing the location. The goal of SLAM is to perform localization and mapping together when no prior map is available.

4.1 Map representations

Different scenarios call for different map representations:

Binary occupancy grid

Divide the environment into equal-sized cells (usually 5–20 cm per cell) and store a probability value in each cell indicating whether it is occupied (occupied = 1, free = 0, unexplored = 0.5). This is the most commonly used map format in indoor robot navigation and is directly supported by the ROS map_server.

Figure: Construction of a binary occupancy grid map
Finished map: white = free, black = obstacle, gray = unexplored
Figure: Finished map: white = free, black = obstacle, gray = unexplored

Costmap

On top of the occupancy grid, inflation around obstacles creates a cost layer: the closer to an obstacle, the higher the cost. The robot then keeps a safe distance from obstacles during path planning without extra collision checks. The ROS Navigation Stack’s costmap_2d supports multi-layer costmaps (static layer + obstacle layer + inflation layer).

Figure: Costmap construction
Finished costmap: blue = low cost, red = high cost (near obstacles)
Figure: Finished costmap: blue = low cost, red = high cost (near obstacles)

Potential field map

The goal is treated as the “lowest point of potential energy” and obstacles as “sources of repulsion”, so the whole space forms a potential field. The robot finds a path by moving in the direction of gradient descent, much like a ball rolling down a slope to its lowest point. Its main drawback is that it easily gets trapped in local minima.

Potential field map: the goal (blue trough) produces attraction, obstacles (red peaks) produce repulsion, and the gradient direction points along the robot's direction of motion
Figure: Potential field map: the goal (blue trough) produces attraction, obstacles (red peaks) produce repulsion, and the gradient direction points along the robot's direction of motion

NDT Map

The normal distributions transform (NDT) map mentioned above suits high-precision autonomous driving scenarios. Each grid cell stores the statistical distribution of its points instead of the raw points, which compresses storage substantially while preserving localization accuracy.

EA-NDT processing pipeline: intermediate stages from the semantically segmented point cloud to the H-Map.
Figure: EA-NDT processing pipeline: intermediate stages from the semantically segmented point cloud to the H-Map.
Figure: NDT map construction

OctoMap (octree 3D map)

OctoMap is the de facto standard for 3D robot mapping and is directly supported by the octomap_server package in ROS. The core idea is to recursively subdivide 3D space with an octree. Each leaf node represents a voxel and stores the voxel’s occupancy probability.

Spatial subdivision principle:

graph TD
    R["🌐 Root node<br/>the whole space"]
    R --> N1["📦 Child node 1<br/>1/8 of the space"]
    R --> N2["📦 Child node 2<br/>1/8 of the space"]
    R --> ND["… 8 child nodes in total"]
    R --> N8["📦 Child node 8<br/>1/8 of the space"]
    N1 --> L1["🟩 Leaf node (voxel)<br/>Small enough, stop subdividing"]
    N1 --> L2["🟥 Leaf node (voxel)<br/>Small enough, stop subdividing"]
    N2 --> N21["📦 Keep subdividing<br/>into 1/8 child nodes"]
    N21 --> L3["🟨 Leaf node (voxel)"]

    style R fill:#4a90d9,color:#fff,stroke:#2c6fad
    style N1 fill:#6db8f2,color:#fff,stroke:#4a90d9
    style N2 fill:#6db8f2,color:#fff,stroke:#4a90d9
    style N8 fill:#6db8f2,color:#fff,stroke:#4a90d9
    style ND fill:#ccc,color:#555,stroke:#aaa
    style N21 fill:#a8d4f5,color:#333,stroke:#6db8f2
    style L1 fill:#52c41a,color:#fff,stroke:#389e0d
    style L2 fill:#ff4d4f,color:#fff,stroke:#cf1322
    style L3 fill:#faad14,color:#fff,stroke:#d48806

🟩 Free voxels 🟥 Occupied voxels 🟨 Unknown voxels Dark nodes = can still be subdivided

The voxel size (resolution) is typically set to 5–20 cm and can be adjusted as needed.

Occupancy probability update (Bayesian update): Each time a laser or depth-sensor ray passes through a voxel, the voxel’s log-odds of occupancy are updated:

\[L(n) = L(n-1) + \log\frac{P(\text{occ}|\text{hit})}{1 - P(\text{occ}|\text{hit})}\]

After accumulating multiple observations, each voxel is classified as occupied, free, or unknown.

Memory efficiency: OctoMap stores only occupied and free nodes; unknown space takes no memory. A large indoor scene (200m², 10cm resolution) usually needs only tens of MB, far better than storing a dense 3D occupancy grid.

Property OctoMap Raw point cloud
Memory Low (sparse octree) High (12–24 bytes per point)
Probabilistic update ✅ ❌
Unknown-space representation ✅ ❌
Multi-resolution queries ✅ ❌
ROS support octomap_server sensor_msgs/PointCloud2

✅ 3D obstacle perception (drone obstacle avoidance, robot-arm grasp planning) ✅ Supports dynamic updates (probability decays after an obstacle is removed) ❌ Does not retain color/semantic information (needs extensions such as ColorOctoMap / SemanticOctoMap)

Topological Map

All of the maps above (occupancy grid, NDT, OctoMap) are metric maps, which record the exact geometry of the space. A topological map is entirely different: it abstracts the environment into a graph of nodes (places) and edges (connections) and ignores precise geometry.

graph LR
    A["Entrance hall"] -->|"Corridor 15m"| B["Office area A"]
    A -->|"Stairs"| C["Second floor"]
    B -->|"Corridor 8m"| D["Conference room"]
    B -->|"Corridor 8m"| E["Rest area"]
    C -->|"Corridor 20m"| F["Office area B"]

A node usually corresponds to a semantic place (a room, doorway, or corridor intersection), and an edge records the reachability between adjacent nodes (sometimes with distance or direction information).

Dimension Metric map Topological map
Representation granularity Centimeter-level precise coordinates Nodes/edges (semantic)
Storage cost Large (grows linearly with area) Extremely small
Path planning Grid search (A*) Graph search (Dijkstra)
Suitable scale Small indoor scenes (<100m) Buildings, multi-floor sites, campuses
Localization accuracy High Low (localizes only to node granularity)

Hybrid schemes in practice: Most real systems use a hybrid topological-metric map. The topological layer does high-level planning across rooms (choosing which nodes to pass through), and the metric layer handles fine-grained local navigation and obstacle avoidance near each node. A typical implementation is the ROS topological_navigation package.

4.2 SLAM problem overview

The input to SLAM is a stream of sensor data (a sequence of laser scans or images, plus odometry), and the output is:

  1. Trajectory: the robot’s historical motion path
  2. Map: a spatial representation of the environment

A SLAM system is usually divided into a front-end and a back-end:

flowchart LR
    subgraph Frontend["Front-end (data association)"]
        A["Sensor data"] --> B["Feature extraction\nScan matching"]
        B --> C["Initial pose estimate\nOdometry"]
    end

    subgraph Backend["Back-end (optimization)"]
        C --> D["Factor graph construction"]
        D --> E["Loop closure detection\nLoop Closure"]
        E --> F["Graph optimization\ng2o / GTSAM"]
    end

    F --> G["Optimized trajectory\n+ global map"]

SLAM vs. pure localization: SLAM means “localizing while building a map” and is suited to the first exploration of an unknown environment. Once the map has been built and saved, later deployments only need pure localization on the known map: the input is sensor data and the output is the robot’s position in the known map, with no map maintenance or updating. Pure localization is much cheaper than SLAM: laser-based solutions use AMCL (adaptive Monte Carlo localization, a particle filter) or NDT-based localization, and vision-based solutions use relocalization. In real product deployments, the vast majority of robots run in “pure localization mode”, and SLAM is started only during the mapping phase or when the environment changes substantially.

4.3 LiDAR SLAM

Cartographer (Google)

Project homepage

Google’s open-source LiDAR SLAM system, which supports 2D and 3D mapping. Core ideas:

  • Submaps: Scan data are inserted in segments into local submaps, and each submap maintains its own consistency
  • Scan matching: When a new scan arrives, CSM (correlative scan matching) first provides an initial pose, and the Ceres Solver then refines it
  • Loop closure detection: When the robot returns to a previously explored area, loop closures are detected by brute-force search matching, which removes the accumulated error

✅ Supports real-time 2D/3D mapping ✅ Works very well in large-scale indoor scenes ✅ Well supported in ROS 2 (cartographer_ros)

Cartographer mapping pipeline
Figure: Cartographer mapping pipeline

GMapping

Project home page

A 2D LiDAR SLAM method based on particle filtering, in which each particle maintains its own grid map and pose estimate. It uses a Rao-Blackwellized particle filter to decompose the SLAM problem into conditionally independent localization and mapping parts.

✅ Simple to implement, suitable for small indoor scenes ✅ Good real-time performance ❌ Large scenes need many particles and a lot of memory ❌ Does not support 3D mapping

GMapping map construction
Figure: GMapping map construction

LOAM

Proposed by Ji Zhang et al. in 2014, LOAM is a milestone in 3D LiDAR SLAM. Core ideas:

  • Extract edge features and planar features from the point cloud
  • Use these two types of features for scan matching to estimate the pose between frames
  • Run two threads in parallel: high-rate odometry and low-rate mapping
The LOAM software system
Figure: The LOAM software system

Author project homepage

LeGO-LOAM

Project homepage

A lightweight version of LOAM optimized specifically for ground mobile robots. It uses ground segmentation and extracts features separately from ground and non-ground points, which greatly reduces computation and allows real-time operation on embedded platforms (such as Jetson).

The LeGO-LOAM system
Figure: The LeGO-LOAM system

LIO-SAM

Project homepage

Tightly coupled LiDAR-inertial odometry that jointly optimizes LiDAR and IMU data in a factor graph framework. IMU pre-integration provides point cloud deskewing and an initial pose estimate, and LiDAR matching then corrects it. Accuracy and robustness are better than loosely coupled schemes.

The LIO-SAM system
Figure: The LIO-SAM system

LIO-SAM tightly coupled architecture (IMU pre-integration + LiDAR factor graph):

flowchart LR
    subgraph Input["Input data"]
        IMU2["IMU\nHigh rate, ~200 Hz"]
        LID2["3D LiDAR\n10–20 Hz"]
        GPS2["GPS (optional)\nGlobal constraints"]
    end

    subgraph Frontend2["Front-end"]
        PREINT["IMU pre-integration\nInter-frame pose initial value\nPoint cloud deskewing"]
        FEAT["Feature extraction\nEdge features\nPlanar features"]
        SCAN["Scan matching\nFeature points → map points\nLM optimization"]
    end

    subgraph Backend2["Back-end (GTSAM factor graph)"]
        FG["Factor graph"]
        IMUFac["IMU pre-integration factor"]
        LIDFac["LiDAR odometry factor"]
        GPSFac["GPS factors (optional)"]
        LOOP2["Loop closure factor\nKd-tree search"]
        OPT2["iSAM2 incremental optimization"]
    end

    OUT2["Optimized trajectory\n+ global point cloud map"]

    IMU2 --> PREINT
    LID2 --> FEAT
    PREINT --> SCAN
    FEAT --> SCAN
    GPS2 --> GPSFac
    SCAN --> LIDFac
    PREINT --> IMUFac
    IMUFac --> FG
    LIDFac --> FG
    GPSFac --> FG
    LOOP2 --> FG
    FG --> OPT2
    OPT2 --> OUT2

4.4 Visual SLAM

Visual SLAM uses cameras instead of LiDAR. It is cheaper but more sensitive to lighting.

ORB-SLAM3

One of the most mature visual SLAM systems today, supporting monocular / stereo / RGB-D / fisheye cameras + IMU.

Project homepage

Key techniques:

  • Feature extraction: ORB (Oriented FAST and Rotated BRIEF) descriptors, which are fast and rotation-invariant
  • Tracking: match the current frame against map points and solve for the pose with PnP
  • Local mapping: maintain a local map and optimize it with Bundle Adjustment
  • Loop closure detection: appearance-similarity detection based on a Bag of Words (BoW) model

ORB-SLAM3 three-thread architecture:

flowchart TB
    CAM["Camera input\n(monocular / stereo / RGB-D / fisheye)"]

    subgraph T1["Thread 1: Tracking (real-time)"]
        ORB_EXT["ORB feature extraction"]
        POSE_EST["Pose estimation\nMap point matching → PnP\nConstant-velocity model as initial value"]
        TRACK_ST{"Tracking successful?"}
        RELOC["Relocalization\nBoW retrieves candidate frames\nPnP + RANSAC"]
    end

    subgraph T2["Thread 2: Local Mapping (somewhat slower)"]
        KF_INSERT["Keyframe insertion"]
        MAP_PT["Map point triangulation\nCreate new map points"]
        LOCAL_BA["Local Bundle Adjustment\nCovisible keyframes + joint optimization of map points"]
        KF_CULL["Keyframe culling\n90% of map points seen in other frames → remove redundant KF"]
    end

    subgraph T3["Thread 3: Loop Closing (slower)"]
        BOW_DETECT["BoW loop closure detection\nCandidate similar frames"]
        GEOM_VERIFY["Geometric consistency check\nEssential matrix verification"]
        LOOP_FUSE["Loop closure fusion\nMerge map points"]
        GLOBAL_BA["Global Bundle Adjustment\ng2o / graph optimization"]
    end

    CAM --> ORB_EXT
    ORB_EXT --> POSE_EST
    POSE_EST --> TRACK_ST
    TRACK_ST -->|"No"| RELOC
    TRACK_ST -->|"Yes, and keyframe conditions are met"| KF_INSERT
    KF_INSERT --> MAP_PT
    MAP_PT --> LOCAL_BA
    LOCAL_BA --> KF_CULL
    KF_INSERT --> BOW_DETECT
    BOW_DETECT --> GEOM_VERIFY
    GEOM_VERIFY --> LOOP_FUSE
    LOOP_FUSE --> GLOBAL_BA

Keyframe selection strategy: ORB-SLAM3 does not insert a keyframe at every frame. A keyframe is triggered by the following conditions: (1) the time since the previous keyframe exceeds a threshold; (2) the number of map points observed in the current frame drops below a threshold (tracking is getting weak); (3) the local map does not have too many keyframes waiting to be processed (to avoid a backlog). This strategy keeps keyframes evenly distributed in space and time and avoids redundancy.

Map point management: Each map point records which keyframes observed it and the ORB descriptor in each of those frames (the mean serves as the representative descriptor). Map points are divided into local map points (seen in recent keyframes) and global map points (the full history). During tracking, only local map points are used for matching (fast), and during BA only covisible keyframes are optimized (local BA).

Relocalization after tracking loss: When tracking fails over consecutive frames, the system enters relocalization mode: (1) use the current frame’s BoW vector to retrieve similar frames from the keyframe database; (2) verify geometric consistency of the candidate frames with PnP + RANSAC; (3) once a matching frame is found, recover the pose and reinitialize tracking. BoW retrieval is extremely fast (O(1) order) and completes within milliseconds.

✅ High accuracy, and supports multiple camera types ✅ Strong loop closure detection in large-scale scenes ❌ Pure vision easily loses tracking in low light or fast motion

VINS-Mono / VINS-Fusion

VINS-Mono VINS-Fusion

A visual-inertial SLAM system open-sourced by the Hong Kong University of Science and Technology. It tightly couples the camera and the IMU and estimates the pose jointly through nonlinear optimization (sliding-window BA). VINS-Fusion further supports stereo and GPS fusion, and is a common solution in autonomous driving and drones.

✅ Tightly coupled, high precision ✅ More robust to pure camera rotation and weakly textured scenes ✅ Supports online extrinsic calibration

Visual-inertial system (VINS) with stereo vision
Figure: Visual-inertial system (VINS) with stereo vision

DSO (direct sparse odometry)

Project homepage

A representative direct method, which minimizes the photometric error of image pixel intensities directly, without extracting feature points.

Comparison with feature-based methods (ORB-SLAM3):

Dimension Feature-based method (ORB-SLAM3) Direct method (DSO)
Texture dependence Requires corner features Any image gradient
Weakly textured scenes ❌ Fails easily ✅ Relatively better
Motion blur ❌ Feature extraction becomes difficult ❌ Also degrades
Computational cost Medium High
Map density Sparse point cloud Semi-dense point cloud

RTAB-Map

Project homepage

Open-sourced by IntRoLab, it is currently the most widely used multi-modal graph-optimization SLAM system in the ROS ecosystem. It supports RGB-D cameras, stereo cameras, and 3D LiDAR input, and outputs occupancy grid maps and dense point cloud maps.

Core design: appearance-based memory management

The most distinctive feature of RTAB-Map is its online memory management mechanism: the system divides keyframes into “Working Memory (WM)” and “Long-Term Memory (LTM)”. When the number of nodes in WM exceeds its limit, the node that has gone unaccessed for the longest time is moved to LTM (similar to memory paging in an operating system). During loop closure detection, only WM is searched, which preserves real-time performance; after a loop closure is detected, the relevant nodes are woken up from LTM to take part in optimization. This mechanism lets RTAB-Map run in real time (>1 Hz) during large-scale, long-term mapping.

Key technical modules:

  • Appearance-based loop closure detection: Extract SURF/ORB features from keyframes, compute inter-frame similarity with a Bag of Words (BoW) model, and trigger geometric verification (PnP + RANSAC) when a threshold is exceeded
  • Graph optimization back-end: Globally optimize the pose graph with g2o/GTSAM to remove accumulated drift
  • Multi-sensor front-end:
    • RGB-D mode: ICP point cloud matching + visual odometry (VO)
    • LiDAR mode: ICP/NDT scan matching
    • Stereo mode: disparity-based depth estimation + VO
  • Output maps: 2D occupancy grid map (directly usable in the ROS Navigation Stack) + 3D colored point cloud
flowchart LR
    subgraph Input["Input"]
        RGBD["RGB-D / Stereo\n/ 3D LiDAR"]
        IMU2["IMU (optional)"]
    end

    subgraph Frontend["Front-end: odometry"]
        VO["Visual / LiDAR odometry\nICP / VO"]
    end

    subgraph Memory["Memory management"]
        WM["Working memory (WM)\n(keyframes of the most recent N frames)"]
        LTM["Long-term memory (LTM)\n(historical keyframes, dormant)"]
        WM <-->|"Swap in / swap out"| LTM
    end

    subgraph Loop["Loop closure detection"]
        BOW2["BoW similarity search\n(within WM only)"]
        GEO["Geometric verification\nPnP + RANSAC"]
    end

    subgraph Backend["Back-end: graph optimization"]
        PG["Pose graph\ng2o / GTSAM"]
    end

    subgraph Output["Output maps"]
        OCC["2D occupancy grid map"]
        PC["3D colored point cloud"]
    end

    RGBD --> VO
    IMU2 --> VO
    VO -->|"New keyframe"| WM
    WM --> BOW2
    BOW2 --> GEO
    GEO -->|"Loop closure constraint"| PG
    VO -->|"Odometry constraint"| PG
    PG --> OCC
    PG --> PC

✅ Multi-sensor support: RGB-D, stereo, and LiDAR can be used in one system ✅ Outputs standard occupancy grid maps that plug directly into the ROS Navigation Stack ✅ Online memory management, suited to long-term, large-scale mapping ✅ Built-in 3D point cloud maps, usable for downstream tasks such as grasping and 3D reconstruction ❌ The default parameters use a lot of memory in large scenes, so parameters such as Mem/STMSize need tuning ❌ Reliability drops in pure-vision mode in weakly textured or low-light environments

Dense visual mapping

ORB-SLAM3 and DSO output sparse / semi-dense point clouds, which cannot be used directly for downstream tasks such as grasp planning or 3D reconstruction. Dense mapping systems output complete 3D surface models, at the cost of more computation.

TSDF map representation

The Truncated Signed Distance Function (TSDF) is the core map representation of dense mapping. Space is divided into a voxel grid, and each voxel stores:

  • SDF value: the signed distance from the voxel to the nearest surface (positive = outside the surface, negative = inside, zero = on the surface)
  • Weight: the confidence accumulated over observations
\[\text{TSDF}(v) = \text{clip}\left(\frac{d(v)}{\delta},\ -1,\ 1\right)\]

Here, $\delta$ is the truncation distance, and $d(v)$ is the distance from the voxel center to the nearest surface. After multiple depth frames are fused, the Marching Cubes algorithm extracts a triangle mesh at TSDF=0, which is the reconstructed 3D surface.

KinectFusion

Introduced by Microsoft Research in 2011, KinectFusion was the first system for real-time dense reconstruction with an RGB-D camera, and it runs entirely on the GPU.

Pipeline:

flowchart LR
    RGBD["RGB-D frame"] --> ICP["ICP pose estimation\n(point-to-plane ICP, GPU)"]
    ICP --> TSDF_UPD["TSDF voxel update\n(parallel GPU writes)"]
    TSDF_UPD --> MC["Marching Cubes\nsurface extraction"]
    MC --> MESH["Triangle mesh"]
  • Front-end: Estimates the camera pose in real time with GPU point-to-plane ICP (no feature extraction; it aligns the depth-map point clouds directly)
  • Mapping: Projects the depth map along the ray direction and updates the TSDF voxels (GPU-parallel, extremely fast)
  • Limitations: The map resolution is fixed, and the scene size is limited by GPU memory (usually within 3m³). There is no loop closure detection, so long-term drift is noticeable

ElasticFusion

ICCV 2015. Built on KinectFusion, it adds an elastic deformation mechanism, replaces the voxel map with surfels (oriented surface elements), and supports non-rigid global optimization:

  • Surfel map: Each surfel stores position, normal vector, color, radius, and confidence
  • Elastic loop closure: After a loop closure is detected, instead of rigidly translating the map, a non-rigid elastic deformation is applied so that historical frames align smoothly
  • Effect: Suited to medium-scale indoor scenes (a single room), with much better reconstruction quality than KinectFusion

Dense visual mapping comparison

System Map representation Loop closure Scene scale Suitable scenes
KinectFusion TSDF voxels ❌ Small (3m³) Desktop-scale reconstruction
ElasticFusion Surfels ✅ (elastic) Medium (single room) Fine indoor reconstruction
RTAB-Map Point cloud + occupancy grid ✅ Large (multiple rooms) Navigation + coarse reconstruction
ORB-SLAM3 Sparse point cloud ✅ Large Mainly for localization

Neural implicit SLAM

Since 2021, NeRF and 3D Gaussian Splatting have entered SLAM, bringing a new paradigm for map representation: instead of discrete voxels or point clouds, neural networks implicitly encode the scene’s geometry and appearance.

NeRF basics review

A Neural Radiance Field (NeRF) uses an MLP to map spatial coordinates and viewing direction to color and volume density:

\[(\mathbf{c}, \sigma) = F_\theta(\mathbf{x}, \mathbf{d})\]

Pixel colors are obtained by volume rendering integration, the photometric loss is computed against the real image, and the network weights are optimized by backpropagation. The optimized network serves as an “implicit map” of the scene from which new views can be rendered at any viewpoint.

IMAP(2021)

The first system to use NeRF for real-time SLAM. A single MLP jointly optimizes the camera pose and the scene representation:

  • Tracking: Fix the network weights and optimize the current frame’s pose (minimizing rendering error)
  • Mapping: Fix the poses and optimize the network weights (updating the implicit map from historical keyframes)
  • Limitations: A single MLP has limited capacity and loses detail in large scenes; it is also slow and cannot run in real time

NICE-SLAM(2022)

Introduces a multi-resolution feature grid in place of a single MLP, removing iMAP’s capacity bottleneck:

  • Three feature grids (coarse, medium, and fine) capture geometry at different scales
  • Local updates: only the currently observed grid region is updated, which avoids global forgetting
  • Faster than iMAP, and suited to medium-sized indoor scenes (TUM and Replica datasets)

3D Gaussian Splatting SLAM(2023-2024)

3DGS-SLAM uses 3D Gaussian ellipsoids in place of NeRF’s volume density field. Rendering is more than 100 times faster (real-time rendering at >30 fps), and it has spawned a number of real-time SLAM systems:

System Map representation Real-time Features
MonoGS (2024) 3D Gaussian ✅ Monocular camera, geometry-aware tracking
SplaTAM (2024) 3D Gaussian ✅ RGB-D, explicit density control
Gaussian-SLAM 3D Gaussian + submap ✅ Large scene submap stitching

Comparison of NeRF/3DGS SLAM and traditional SLAM:

Dimension Traditional SLAM (ORB-SLAM3) NeRF-SLAM 3DGS-SLAM
Map representation Sparse point cloud Implicit MLP 3D Gaussian ellipsoids
Novel-view rendering ❌ ✅ (slow) ✅ (real time)
Localization accuracy High Medium Medium
Mapping speed Real time Slow (offline) Near real time
Memory Low Medium High (large number of Gaussians)
Downstream tasks Navigation View synthesis, simulation View synthesis, simulation

Outlook: Neural implicit SLAM currently lags behind traditional SLAM in localization accuracy and real-time performance. However, the high-quality, renderable maps it produces have unique value for visual perception and simulation data generation in embodied AI, and it is a current research hotspot.

4.5 SLAM backend optimization

The SLAM front-end provides an initial pose estimate for each frame, but noise accumulates and the error grows over a long run. The goal of back-end optimization is global consistency.

Bundle adjustment

Bundle Adjustment is the core of visual SLAM back-end optimization. The goal is to adjust the camera poses and the 3D map point positions simultaneously so that the reprojection error of all map points across all camera frames is minimized.

Bundle adjustment
Figure: Bundle adjustment

Intuitive analogy: Imagine several photos of the same scene taken from different angles, plus initial (noisy) 3D coordinates of the landmarks in the scene. BA simultaneously fine-tunes each photo’s camera position and orientation as well as each landmark’s 3D coordinates, so that the sum of deviations between the “landmark projections computed from the camera parameters” and the “feature positions actually seen in the photos” is minimized.

\[\min_{\{P_i\}, \{X_j\}} \sum_{i,j} \| u_{ij} - \pi(P_i, X_j) \|^2\]

Here, $P_i$ is the camera pose, $X_j$ is the 3D coordinate of the map point, $u_{ij}$ is the observed image coordinate, and $\pi(\cdot)$ is the projection function.

Local BA vs. Global BA trade-offs:

  • Local BA (ORB-SLAM3’s real-time optimization): Optimizes only the latest covisible keyframes and the map points they observe. The computational cost is small and it runs in real time (millisecond level). Drawback: local BA cannot remove global drift.
  • Global BA (triggered after a loop closure): Optimizes all keyframes and map points of the entire map, giving good global consistency. Drawback: the computation grows with map size, and large scenes may take seconds or even minutes, so it can only run offline or once after a loop closure is detected.

Factor graphs

Model the SLAM problem as a factor graph: nodes (variables) represent robot poses and map points, and edges (factors) represent sensor constraints (such as relative poses between adjacent frames and loop closure constraints). Solving it means finding the variable estimates that minimize the sum of all constraint errors.

graph LR
    X0((X0)) -->|Odometry| X1((X1))
    X1 -->|Odometry| X2((X2))
    X2 -->|Odometry| X3((X3))
    X3 -->|Odometry| X4((X4))
    X4 -->|Loop closure detection| X0
    X0 -->|GPS| G0["GPS factor"]
    X2 -->|LiDAR| L0["LiDAR factor"]
    style X0 fill:#4a9,color:#fff
    style X4 fill:#4a9,color:#fff
    style G0 fill:#fa4,color:#fff
    style L0 fill:#fa4,color:#fff

Loop closure

The task of loop closure detection is to determine whether the robot has returned to a place it has visited before, so that a loop closure constraint can be added to remove accumulated error. The process has two stages: appearance retrieval (quickly recalling candidate frames) and geometric verification (eliminating false recalls).

The two-stage loop closure detection pipeline
Figure: The two-stage loop closure detection pipeline
Loop closure detection result
Figure: Loop closure detection result

Stage 1: Appearance retrieval with a Bag of Words model

The most mainstream loop closure retrieval scheme in visual SLAM is implemented by the DBoW2 / DBoW3 library (the ORB-SLAM series and RTAB-Map are both built on it).

(1) Offline: build a visual dictionary

Extract ORB / BRIEF descriptors from a large number of images and use k-means clustering (usually a hierarchical k-ary tree) to quantize the high-dimensional descriptor space into $K$ “visual words”. The dictionary is fixed once training is complete and does not need to be updated at runtime.

Original descriptor space (128-dimensional float or 256-bit binary)
        ↓  Hierarchical k-means
Visual dictionary (tree structure, leaf nodes = visual words)

(2) Online: image → BoW vector

Extract ORB descriptors for each keyframe, quantize each descriptor to its nearest visual word, count the word frequencies, and apply weighting to obtain a sparse vector:

\[v_i = \left[ \text{tf-idf}(w_1),\ \text{tf-idf}(w_2),\ \ldots,\ \text{tf-idf}(w_K) \right]\]

Here, the TF-IDF weight is $= \text{tf}(w, f) \times \log\frac{N}{n_w}$, where $N$ is the total number of frames in the database and $n_w$ is the number of frames containing the word $w$. Common words (such as edges and corners) get low weights, and rare words (such as distinctive textures) get high weights.

(3) Candidate frame retrieval

When a new keyframe arrives, its BoW vector is compared by cosine similarity with all frames in the database, and the Top-K frames are selected as loop closure candidates. Because the vectors are sparse and dictionary lookup is $O(1)$, retrieval is extremely fast (on the order of milliseconds).

Key limitation: BoW is a purely appearance-based method, and similar lighting or scenes produce false positives, so its results must be verified geometrically.


Stage 2: Geometric consistency verification with RANSAC

For each candidate frame recalled by BoW, verify whether the 3D geometry between the current frame and the candidate frame is self-consistent.

(1) Feature point matching

Between the current frame and the candidate frame, perform brute-force matching on the ORB descriptors to obtain a set of corresponding point pairs ${(p_i, p_i’)}$.

(2) Estimate the essential or homography matrix with RANSAC

The matched pairs contain many outliers (mismatches caused by occlusion and repeated textures), so solving directly with all points yields a wrong geometric relationship. The RANSAC approach:

Repeat N times:
  1. Randomly sample a minimal set of points (5 for the essential matrix, 4 for the homography)
  2. Solve for the E or H matrix from the minimal set
  3. Count the inliers consistent with E/H
Return the solution with the most inliers

The essential matrix $E$ (general rotation + translation, no planar assumption) satisfies the epipolar constraint:

\[p'^T E\, p = 0, \quad E = t^\wedge R\]

Here, $R$ is the rotation matrix and $t^\wedge$ is the skew-symmetric matrix of the translation vector.

(3) Inlier threshold test

  • Number of inliers $\geq$ threshold (such as 30) → loop closure confirmed: compute the relative pose $T_{loop}$ of the current frame with respect to the candidate frame and add it to the pose graph as a constraint
  • Too few inliers → candidate rejected, and no loop closure is produced this time
flowchart LR
    KF["New keyframe"] --> BOW["BoW search\nTop-K candidate frames"]
    BOW --> MATCH["ORB descriptor\nbrute-force matching"]
    MATCH --> RANSAC["RANSAC\nestimate E / H"]
    RANSAC --> CHECK{"Inliers ≥ threshold?"}
    CHECK -->|"Yes"| LOOP["Confirm loop closure\nAdd pose graph constraint"]
    CHECK -->|"No"| REJECT["Reject candidate"]
    LOOP --> OPT["Trigger global graph optimization\n(g2o / GTSAM)"]

Loop closure detection for LiDAR SLAM

LiDAR SLAM has no images and cannot use BoW. The following approaches are commonly used:

Method Principle Representative system
ICP brute-force search Traverse historical submaps and verify matches with ICP Cartographer
Kd-tree distance search Restrict the search range with GPS/odometry priors, then verify with ICP LIO-SAM
Scan Context Encode the point cloud as a 2D descriptor (top-down polar histogram); fast retrieval and rotation invariance SC-LIO-SAM

Scan Context is the mainstream approach to LiDAR loop closure detection in recent years. It projects the 3D point cloud onto a top-down polar grid, records the maximum height in each cell, and produces a fixed-size 2D matrix as a “fingerprint” of the point cloud. The similarity between two frames is made rotation-invariant by a column-shift search, and retrieval is much faster than frame-by-frame ICP.

Main back-end optimization libraries

  • g2o (General Graph Optimization): a general graph optimization library, used by ORB-SLAM2/3
  • GTSAM (Georgia Tech Smoothing and Mapping): a factor graph optimization library, used by LIO-SAM
  • iSAM2 (Incremental Smoothing and Mapping 2): the incremental optimization algorithm in GTSAM, which supports real-time updates without re-optimizing the whole graph each time

4.6 LiDAR vs. visual SLAM comparison

Dimension LiDAR SLAM Visual SLAM
Sensor cost High (hundreds to tens of thousands of yuan) Low
Accuracy High (cm level) Medium (scene-dependent)
Lighting dependence None Yes (struggles in low light / overexposure)
Map type Point cloud / occupancy grid Sparse / semi-dense point cloud
Dynamic obstacle handling Average Difficult
Corridor degeneracy Prone (lacks geometric constraints) Depends on texture
Representative algorithms Cartographer, LIO-SAM ORB-SLAM3, VINS-Mono
Typical applications Indoor robots, autonomous driving Drones, handheld devices

RTAB-Map spans both columns: it accepts both LiDAR and visual input, and its accuracy and suitable scenarios fall between the two. It is the most comprehensive out-of-the-box solution in the ROS ecosystem.

4.7 SLAM degeneracy and deployment

SLAM systems often perform well in laboratory environments but meet various degenerate scenarios in real deployments, causing localization failures or map errors. Understanding these scenarios and choosing algorithms accordingly is the key to engineering practice.

Challenging scenes
Figure: Challenging scenes

4.7.1 Geometric degeneracy

Corridor degeneracy: LiDAR SLAM faces severe challenges in long corridors. The walls on both sides are highly symmetrical, and the laser point cloud looks almost identical along the corridor direction, so displacement along the corridor cannot be constrained (scan matching lacks constraints along that direction). The symptom is drift along the corridor while lateral localization remains good.

Countermeasures:

  • Combine with an IMU or wheel odometry to constrain motion along the corridor
  • Use 3D LiDAR to add constraints from ceiling and floor structures
  • LIO-SAM’s IMU pre-integration provides constraints in the degenerate direction

Open outdoor degeneracy: In environments lacking 3D structure, such as large parking lots and fields, the laser point cloud is sparse and NDT/ICP struggle to converge. Countermeasure: fuse global GPS constraints.

4.7.2 Dynamic environment challenges

SLAM assumes a static environment, but in reality pedestrians, vehicles, and moving furniture cause dynamic interference:

  • Ghost map points: Dynamic obstacles are wrongly built into the static map
  • Tracking failure: A large number of dynamic objects makes scan matching fail
  • False loop closures: BoW recalls the wrong keyframes after the scene layout changes

Countermeasures:

  • Dynamic object filtering on point clouds (based on motion consistency detection)
  • Semantic segmentation to filter dynamic categories (pedestrians, vehicles) from point clouds
  • Motion segmentation in visual SLAM

4.7.3 Lighting and weather

Visual SLAM is extremely sensitive to lighting:

Scenario Impact on feature-based methods Impact on direct methods
Low light (night) ORB feature extraction fails Photometric error computation becomes unstable
Overexposure (backlight) Feature descriptors become unstable Gradients in saturated regions are zero
Fast motion Motion blur, blurred features Violates the brightness-constancy assumption
Rain/fog Features are obscured Reduced visibility

Countermeasures:

  • Visual-inertial SLAM (VINS-Mono / ORB-SLAM3 IMU mode): the IMU maintains short-term localization when feature tracking fails
  • HDR cameras or active illumination (structured light) to adapt to lighting changes
  • Event cameras are immune to motion blur and are a current research hotspot

4.7.4 Long-term map maintenance

Long-term deployment faces map aging: seasonal changes (falling leaves, snow), renovations, and moved furniture can invalidate the original map.

Mitigation strategies:

  • Incremental map update: When sensor observations disagree with the existing map beyond a threshold, trigger a local map update
  • Multi-map management (supported by ORB-SLAM3): Create a new submap when the scene changes or tracking is lost, and merge after recovery
  • Semantic maps: Replace raw points with semantic labels (door / wall / column); semantic features are more stable than geometric ones

4.7.5 Embedded compute limits

Robots are often equipped with embedded platforms (Jetson Nano / Xavier / Orin) with limited computing power, while a complete SLAM system demands considerable compute:

Component CPU compute requirement GPU acceleration feasibility
ORB feature extraction Medium (SIMD can accelerate) ✅ (CUDA ORB)
LiDAR scan matching (NDT/ICP) High Partial (PCL GPU)
Bundle Adjustment Extremely High ✅ (g2o CUDA)
Loop closure detection (BoW search) Low Unnecessary
Particle filter (AMCL, 500 particles) Low Unnecessary

Practical suggestions:

  • Prefer lightweight systems: LeGO-LOAM (embedded-friendly) and AMCL (low-compute localization)
  • Accelerate the front-end (feature extraction, scan matching) on the GPU wherever possible
  • Run back-end optimization at a reduced rate (10 Hz front-end + 1–2 Hz back-end BA)
  • Use iSAM2 incremental optimization to avoid re-optimizing the full graph

Note: More details on real-world deployment of visual SLAM (scenario adaptability research related to TITS 2026) will be added later.

4.8 Summary of commonly used datasets

Dataset Sensors Scenario Main purpose URL
KITTI LiDAR + stereo + GPS/IMU Outdoor roads Visual/LiDAR odometry, 3D object detection kitti.is.tue.mpg.de
TUM RGB-D Indoor RGB-D SLAM evaluation vision.in.tum.de
EuRoC Stereo + IMU Indoor drone VIO evaluation rpg.ifi.uzh.ch
nuScenes 6 cameras + LiDAR + radar + GPS/IMU Outdoor roads Autonomous driving perception nuscenes.org
Newer College 3D LiDAR + IMU Outdoor campus 3D LiDAR SLAM ori.ox.ac.uk
Hilti SLAM Multiple LiDARs + cameras + IMU Construction sites Multi-sensor SLAM evaluation hilti-challenge.com

5. Path planning

Path planning solves the problem of “how should I get there”: finding a collision-free path from the start to the goal in a known (or locally known) map.

5.1 Global path planning: search methods

Search algorithms look for the optimal path on a discretized grid map.

Dijkstra’s algorithm

Idea: Starting from the start node, explore all reachable nodes in order of increasing cost, like ripples spreading outward, until the goal is found. It is guaranteed to find the lowest-cost path (optimality).

✅ Guaranteed optimal solution ❌ No directionality: many nodes are expanded on a large map, so it is inefficient ❌ Time complexity $O(V \log V + E)$, where $V$ is the number of nodes and $E$ is the number of edges

Figure: Dijkstra search process (left) and navigation result (right): the expanded nodes spread in concentric circles with no directionality

A* (A-Star) algorithm

Idea: On top of Dijkstra, add a heuristic function h(n) (an estimate of the cost from the current node to the goal, usually the Euclidean or Manhattan distance). This gives the search a clear direction and explores nodes that “look closer to the goal” first.

\[f(n) = g(n) + h(n)\]

Here, $g(n)$ is the actual cost from the start to node $n$, and $h(n)$ is the heuristic estimate.

✅ Guaranteed optimal solution (when $h(n)$ does not overestimate the actual cost) ✅ Much faster than Dijkstra (directional search) ❌ Still computationally heavy in high-dimensional spaces (such as 3D)

Choosing the heuristic function h(n): Different heuristics suit different movement constraints:

Heuristic function Formula Suitable scenario Properties
Manhattan distance $|dx| + |dy|$ Only 4-directional movement (up, down, left, right) Admissible for 4-connected movement
Euclidean distance $\sqrt{dx^2 + dy^2}$ Movement in any direction Admissible for movement in any direction
Octile distance $\max(|dx|,|dy|) + (\sqrt{2}-1)\min(|dx|,|dy|)$ 8-directional movement (including diagonals) Tighter than Euclidean in 8 directions (faster search)

Admissibility: $h(n)$ must never overestimate the true cost, which ensures that A* finds the optimal solution. If $h(n) = 0$, A* reduces to Dijkstra (slowest, but optimal). The larger $h(n)$ is, the faster the search, but it may overestimate the cost and lose optimality.

The following figure shows A*’s search process on a 10×10 grid:

A* search illustration: gray = evaluated (closed set), orange = to be evaluated (open set), green = optimal path; obstacles (dark) are bypassed
Figure: A* search illustration: gray = evaluated (closed set), orange = to be evaluated (open set), green = optimal path; obstacles (dark) are bypassed
Figure: A* search process (left) and navigation result (right): the search is directional, and the expanded nodes concentrate toward the goal

Bidirectional A*

Search from the start and the goal simultaneously, and stop when the two search fronts meet. The average number of nodes searched is about half that of one-way A*, which suits cases where the start and goal are far apart.

Figure: Bidirectional A* search (left, expanding from both ends at once) and navigation result (right)

Hybrid A*

Problem with standard A*: It searches on a grid and ignores the vehicle’s kinematic constraints. A car cannot move sideways and has a minimum turning radius.

Hybrid A* improves on this by discretizing the vehicle’s continuous state space ($x, y, \theta$) and considering executable steering actions (such as arcs of different curvatures) when expanding each node, so the generated path is actually feasible for vehicles with nonholonomic constraints (differential-drive or Ackermann).

✅ Generates kinematically feasible paths ✅ Suited to parking scenarios and narrow passages ❌ Higher computational cost than standard A* ❌ Needs post-processing such as Reeds-Shepp curves for smoothing

Figure: Hybrid A* search (left) and navigation result (right): a smooth, feasible path that respects the vehicle's kinematic constraints

Engineering optimizations for A*

In real engineering applications (such as autonomous driving or mobile robots), paths generated by plain A* often have redundant nodes and sharp corners. Mainstream optimization strategies include:

  1. Adaptive heuristic weight: Introduce a dynamic weight coefficient $\lambda$ so that the heuristic weight varies with position: \(f(n) = g(n) + (1 + \lambda \cdot \frac{d_{to\_end}}{d_{total}})h(n)\) Increase the weight near the start to speed up the search (similar to greedy search), and decrease it near the goal to preserve path optimality.

  2. Path simplification (Douglas-Peucker algorithm): The raw paths produced by A* often contain many redundant collinear nodes. The Douglas-Peucker (DP) algorithm removes unnecessary intermediate points while preserving the path’s topology, which greatly simplifies the path description and makes the subsequent trajectory smoothing more efficient.

  3. Smoothing (B-spline curves): Fit the simplified key points with a B-spline or a fifth-order polynomial. This turns A*’s polyline path into a continuous, higher-order differentiable smooth curve that respects the chassis dynamics constraints (such as a centripetal acceleration limit).

A* path optimization pipeline: original grid path (left) → DP-simplified key points (middle) → B-spline smoothed trajectory (right)
Figure: A* path optimization pipeline: original grid path (left) → DP-simplified key points (middle) → B-spline smoothed trajectory (right)
Before optimization, A* has dense search points (Fig. 2a) and many turning points on the path. After optimization, the number of search points drops sharply (Fig. 2b) and the path is simpler and smoother, improving both search efficiency and path quality.
Figure: Before optimization, A* has dense search points (Fig. 2a) and many turning points on the path. After optimization, the number of search points drops sharply (Fig. 2b) and the path is simpler and smoother, improving both search efficiency and path quality.

Fast Marching Method (FMM)

Idea: FMM was proposed by J.A. Sethian in 1996 and models path planning as a wavefront propagation problem. A “time wavefront” propagates outward from the goal, and the shortest arrival time $T(\mathbf{x})$ at each grid cell is recorded, building a global arrival time field. For planning, gradient descent along $-\nabla T$ from the start yields the globally optimal path.

FMM planning process: speed field W(x) (left, low speed near obstacles) → arrival time field T(x) (middle, low cost in blue regions) → gradient descent path (right)
Figure: FMM planning process: speed field W(x) (left, low speed near obstacles) → arrival time field T(x) (middle, low cost in blue regions) → gradient descent path (right)

Eikonal Equation:

\[|\nabla T(\mathbf{x})| = \frac{1}{F(\mathbf{x})}\]

Here, $T(\mathbf{x})$ is the minimum time (path cost) for the wave to reach the point $\mathbf{x}$ from the goal, and $F(\mathbf{x}) > 0$ is the propagation speed at that point: $F=1$ in free space and $F \to 0$ near obstacle edges. Assigning it through the costmap’s distance transform naturally incorporates terrain costs.

Core algorithm steps (narrow-band propagation, Dijkstra-like):

  1. Initialize: goal $T_{goal}=0$, all other nodes $T=\infty$; push the goal onto a min-heap
  2. Pop the heap top (the node with the smallest current $T$) and mark it as “determined”
  3. For each undetermined neighbor, compute a candidate arrival time with the Eikonal update formula:

Let $T_h = \min(T_{left}, T_{right})$ and $T_v = \min(T_{up}, T_{down})$ (the smallest determined value in each pair of opposite directions). Then:

\[T_{new} = \begin{cases} \dfrac{T_h + T_v + \sqrt{2/F^2 - (T_h - T_v)^2}}{2} & \text{if } |T_h - T_v| < 1/F \\ \min(T_h, T_v) + \dfrac{1}{F} & \text{otherwise (one-sided update)} \end{cases}\]
  1. If $T_{new}$ is smaller than the current value, insert (or update) the neighbor in the min-heap
  2. Repeat steps 2–4 until the heap is empty

Path extraction: Starting from the start, perform gradient descent along $-\nabla T$. Because the Eikonal equation guarantees that the $T$ field is monotonic with no local minima, gradient descent always converges to the goal and yields the globally optimal path.

✅ Naturally smooth paths: the wavefront propagates continuously, with no grid aliasing ✅ Build once, query from anywhere: after the $T$ field is built, gradient descent can start from any point, which suits repeated queries to the same goal ✅ Naturally incorporates non-uniform terrain cost through $F(\mathbf{x})$ (slope, ground type, etc.) ✅ Globally optimal (in the continuous sense), with none of the local-minimum problems of the classical potential field method ❌ Cannot be accelerated with a heuristic and must traverse the entire map, $O(N \log N)$ ($N$ is the total number of grid cells) ❌ Not suited to single-query planning on very large maps (A* is faster) ❌ At low resolution the gradient descent path is still slightly jagged and needs post-processing smoothing

Comparison with other algorithms:

Dimension FMM Dijkstra A*
Core model Continuous Eikonal equation Discrete graph search Discrete graph + heuristic
Path smoothness Naturally smooth Jagged Jagged (needs post-processing)
Single-query speed Slow (full map) Slow (full map) Fast (directional)
Multi-query ✅ (build once) Must be rerun each time Must be rerun each time
Non-uniform cost ✅ ($F$ field) ✅ (edge weights) ✅ (edge weights)

Typical applications: terrain path planning (rovers on non-uniform ground), full-grid potential field construction in ROS navfn, image distance transforms and skeleton extraction, and geodesic distance computation in computer graphics.

Fast Marching Square(FM²)

FM² was proposed by Garrido et al. (2006) as an extension of FMM. Its core idea is to run FMM twice in series. By constructing a speed field proportional to the distance to obstacles, the wavefront automatically “bypasses” dangerous regions, producing a natural, safe, and smooth path.

FM² planning process: original binary map (far left) → dilated map (second from left) → arrival time field T(x) (second from right) → safe path (far right). The path naturally stays away from obstacle edges
Figure: FM² planning process: original binary map (far left) → dilated map (second from left) → arrival time field T(x) (second from right) → safe path (far right). The path naturally stays away from obstacle edges

Two-stage algorithm:

  1. Stage 1: construct the speed field $W(\mathbf{x})$: Run FMM with all obstacle cells as sources ($T=0$) to obtain the arrival-time distance field from every point in the map to the nearest obstacle, then normalize it into a speed field:

    \[W(\mathbf{x}) = f\!\left(d_{\text{obs}}(\mathbf{x})\right), \quad W \in (0,\,1]\]

The closer to an obstacle, the smaller $W(\mathbf{x})$ is (the lower the speed); $W \to 1$ at the center of free space.

  1. Stage 2: path planning: Run FMM again with the goal as the source and $W(\mathbf{x})$ as the propagation speed to compute the arrival time field $T(\mathbf{x})$; the path is obtained by descending along $-\nabla T$ from the start.

Why the path is naturally safe: Near obstacles $W$ is low, so the wave propagates slowly and $T$ is high. Gradient descent therefore detours automatically into “high-speed zones” where $W$ is large (away from obstacles), keeping a safety margin without any post-processing.

✅ The speed field inherently encodes path safety, so there is no need to inflate obstacles or set a safety radius parameter ✅ Both FMM passes guarantee global optimality and smooth paths ✅ Applicable to spaces of any dimension (including high-dimensional robot-arm planning) ❌ Two full-map FMM passes, twice the computation of standard FMM ❌ The speed field may suppress speed too much in narrow passages, giving an overly conservative path

Main variants:

Variant Improvement
FM²* Adds a goal heuristic in the second stage so that the wavefront propagates directionally, avoiding unnecessary full-map expansion and improving speed
FMDirectional Fixes FM²’s overly large safety margin in open spaces, making the path hug the traversable side of obstacles more closely
Fast Marching Learning (FML) Uses past path experience to modify the speed field, enabling trajectory reuse and faster planning

5.2 Global planning: sampling-based methods

Sampling-based algorithms construct a path by random sampling. They do not need an explicit grid map and suit high-dimensional spaces and scenarios with complex geometric constraints.

RRT

Idea: Grow a tree from the start. Each time, pick a random point, find the nearest node on the tree, extend a small step toward the random point, and add the new node to the tree if there is no collision. A path is found when some tree node comes close enough to the goal.

Core steps:

  1. Initialization: a tree $\mathcal{T}$ containing only the start $x_{start}$
  2. Random sampling $x_{rand} \sim \mathcal{U}(\mathcal{X})$ (sometimes the goal is sampled directly with probability $p_{goal} \approx 5\%$ to speed up convergence)
  3. Nearest neighbor $x_{near} = \arg\min_{x \in \mathcal{T}} |x - x_{rand}|$
  4. Steering $x_{new} = x_{near} + \delta \cdot \frac{x_{rand} - x_{near}}{|x_{rand} - x_{near}|}$, where $\delta$ is the step size (step_size)
  5. Collision check: If $x_{near} \to x_{new}$ is obstacle-free, add $x_{new}$ to the tree with edge weight $\delta$
  6. Repeat until $|x_{new} - x_{goal}| < \epsilon$

Key parameter step_size: if it is too large, the tree cannot get past obstacles; if it is too small, convergence is extremely slow. It is usually set to 1%–5% of the map diagonal.

✅ Handles high-dimensional spaces naturally (robot-arm planning) ✅ No rasterization required ❌ No optimality guarantee (the path found is usually quite winding) ❌ The final path needs extra smoothing (B-spline or shortcut smoothing is commonly used)

Figure: RRT random tree expansion (left) and planned path (right): the path is winding and not optimal

RRT*

An improved version of RRT that adds two key steps to the standard algorithm: Choose Parent and Rewiring.

Choose Parent: Rather than simply taking the nearest neighbor, consider the nodes in the radius-$r$ neighborhood \(\mathcal{X}_{near}\) and choose the parent with the lowest cost from the start:

\[x_{parent} = \arg\min_{x \in \mathcal{X}_{near}} \left[ \text{cost}(x) + d(x, x_{new}) \right]\]

Rewiring: After adding $x_{new}$, check every node $x_{near}$ in \(\mathcal{X}_{near}\). If routing through $x_{new}$ lowers the cost of reaching $x_{near}$, remove $x_{near}$’s old parent edge and make $x_{new}$ its new parent.

The search radius $r$ shrinks as the number of samples $n$ grows: $r(n) = \gamma \left(\frac{\log n}{n}\right)^{1/d}$ ($d$ is the spatial dimension), which ensures asymptotic optimality while keeping the computation under control.

✅ Asymptotic optimality (the more samples, the better the path) ✅ Shares RRT’s sampling framework and is easy to implement ❌ Each new node requires traversing its neighbor set; the per-step time complexity $O(\log n)$ is higher than RRT’s $O(1)$ ❌ Slow convergence, and there may not be enough sampling time in real-time planning

Figure: RRT* search process (left, the path keeps improving after rewiring) and planned path (right): smoother than RRT

Bidirectional RRT*

Grow an RRT* tree (\(\mathcal{T}_a\), \(\mathcal{T}_b\)) from each of the start $x_{start}$ and the goal $x_{goal}$. Each iteration alternately expands the two trees:

  1. Perform one RRT* expansion step on \(\mathcal{T}_a\) to obtain a new node $x_{new}$
  2. Try to connect $x_{new}$ to its nearest node $x_{b,near}$ in \(\mathcal{T}_b\) with a collision-free path
  3. If the connection succeeds, merge the two sub-paths into a candidate complete path, and keep the complete path with the lowest cost
  4. Swap the roles of the two trees (\(\mathcal{T}_a \leftrightarrow \mathcal{T}_b\)) and continue iterating

The advantage is that the two trees “grow toward each other”, which effectively avoids the blind diffusion of a one-way tree in a wide space. The search volume drops from $O(r^d)$ to $O(2 \cdot (r/2)^d)$, and convergence is about an order of magnitude faster than one-way RRT*.

Figure: Bidirectional RRT* search (left, the red and blue trees meet) and planned path (right)

Informed RRT*

A further improvement: once an initial solution $c_{best}$ is found, sampling is restricted to an ellipsoidal region. The two foci of the ellipse are $x_{start}$ and $x_{goal}$, the semi-major axis is $a = c_{best}/2$, and the semi-minor axis is:

\[b = \frac{1}{2}\sqrt{c_{best}^2 - \|x_{goal} - x_{start}\|^2}\]

Intuition: Only points inside the ellipse can yield a path cost lower than $c_{best}$ (the ellipse is defined precisely as the set of points whose summed distance to the two foci is $\leq c_{best}$). As the path keeps improving, $c_{best}$ decreases and the ellipse keeps shrinking, so sampling becomes more and more focused and no samples are wasted in irrelevant regions.

When sampling, a uniform random point $x_{ball} \sim \mathcal{U}(\mathcal{B}^d)$ in the unit ball is mapped into the ellipsoid’s coordinate frame by an affine transformation: $x_{rand} = C \cdot L \cdot x_{ball} + x_{center}$, where $C$ is the rotation matrix (aligning the ellipsoid’s major axis with the $x_{start} \to x_{goal}$ direction) and $L = \text{diag}(a, b, \ldots, b)$.

Figure: Informed RRT* search (left, the elliptical sampling region shrinks as the path improves) and planned path (right)

5.3 Local planning and obstacle avoidance

Global planning assumes a static map, but real environments contain dynamic obstacles (pedestrians, other robots). Local planning replans in real time while the robot moves, to handle dynamic obstacles.

DWA

Idea: Sample velocity commands $(v, \omega)$ within the reachable velocity window (limited by acceleration) around the robot’s current velocity, predict each resulting trajectory with the motion model, score it on goal heading + speed + obstacle distance, and execute the best command.

Constructing the dynamic window: The velocity space $(v, \omega)$ must satisfy three constraints at once, so take their intersection:

  • Velocity limits: $v \in [v_{min}, v_{max}]$, $\omega \in [\omega_{min}, \omega_{max}]$
  • Dynamic window (acceleration limits): \(v \in [v_c - \dot{v}_{max} \cdot \Delta t,\ v_c + \dot{v}_{max} \cdot \Delta t]\), and similarly for $\omega$
  • Admissibility constraint: The distance to the nearest obstacle along the trajectory is $> 0$ (and the robot can brake before reaching the obstacle)

Scoring function:

\[G(v, \omega) = \sigma\bigl(\alpha \cdot \text{heading}(v,\omega) + \beta \cdot \text{dist}(v,\omega) + \gamma \cdot \text{velocity}(v,\omega)\bigr)\]

The three components mean:

  • $\text{heading}$: the angle between the trajectory’s end direction and the direction to the goal (smaller is better; encourages turning toward the goal)
  • $\text{dist}$: the distance to the nearest obstacle along the trajectory (larger is better; encourages staying away from obstacles)
  • $\text{velocity}$: the forward speed $v$ itself (larger is better; encourages moving fast)
  • $\sigma(\cdot)$ is a normalization function, and $\alpha, \beta, \gamma$ are weights

✅ Fast computation (millisecond level), suited to real-time obstacle avoidance ✅ ROS dwa_local_planner works out of the box ❌ The velocity search space is limited, so it easily fails in narrow passages ❌ Considers only short-horizon trajectories (about 1–3 s) and cannot handle obstacles that require a “detour”

Improved variant: Fuzzy DWA The scoring weights of traditional DWA ($\alpha, \beta, \gamma$) are fixed, which makes it hard to balance “high-speed driving” against “obstacle avoidance in tight spaces”. Fuzzy DWA introduces a fuzzy inference engine that takes the goal distance and the nearest obstacle distance as inputs and adjusts the weights dynamically. For example, when an obstacle is very close, it greatly increases $\beta$ (the obstacle avoidance weight) and reduces $\gamma$ (the speed weight), making avoidance smoother and less abrupt.

The dynamic window approach
Figure: The dynamic window approach

TEB

Idea: Treat the path as a “rubber band” and add the time dimension to make it a “timed elastic band”. TEB models local planning as a sparse nonlinear least-squares optimization:

State representation: The path is represented by a sequence of timestamped poses \(\mathcal{B} = \{x_i, \Delta T_i\}_{i=1}^{n}\), where $x_i = (p_x, p_y, \theta)$ and $\Delta T_i$ is the time interval between adjacent waypoints.

Optimization objective (a weighted sum of multiple constraints):

\[\min_{\mathcal{B}} \sum_k \gamma_k f_k(\mathcal{B})\]

The meaning of each constraint term:

Constraint term Meaning
$f_{short}$ Shortest path length (smallest sum of waypoint distances)
$f_{obs}$ Obstacle distance constraint (all waypoints stay away from obstacles by $> d_{min}$)
$f_{kin}$ Kinematic feasibility (nonholonomic constraints: curvature $\leq \kappa_{max}$, minimum turning radius)
$f_{vel}$ Velocity constraints ($v \leq v_{max}$, $\omega \leq \omega_{max}$)
$f_{acc}$ Acceleration constraints ($|\dot{v}| \leq a_{max}$, $|\dot{\omega}| \leq \alpha_{max}$)

The optimization uses the g2o sparse graph optimization framework: each waypoint is a node and each constraint is an edge, and Levenberg–Marquardt or Gauss-Newton iterations solve the problem. It usually converges within 10–30 iterations.

✅ Generates smooth, kinematically feasible trajectories ✅ Supports dynamic obstacles (obstacles are also modeled as nodes in the graph) ✅ Supports reversing (allows $v < 0$) ❌ Higher computational cost than DWA, about 50–200 ms ❌ Complicated parameter tuning (the constraint weights $\gamma_k$ interact with each other) ❌ Sensitive to the quality of the initial path; when the global plan is poor, the local optimization may fall into a local optimum

Timed Elastic Band
Figure: Timed Elastic Band

Potential field method

The simplest and most intuitive local obstacle avoidance method: the goal generates an attractive force field and obstacles generate a repulsive force field, and the robot moves down the gradient of the potential field.

Attractive potential (parabolic: the farther from the goal, the stronger the attraction):

\[U_{att}(q) = \frac{1}{2} k_{att} \cdot d^2(q, q_{goal})\]

Repulsive potential (active when the distance to an obstacle satisfies $d(q, O) < Q^*$):

\[U_{rep}(q) = \begin{cases} \dfrac{1}{2} k_{rep} \left(\dfrac{1}{d(q,O)} - \dfrac{1}{Q^*}\right)^2 & \text{if } d(q,O) \leq Q^* \\ 0 & \text{otherwise} \end{cases}\]

The resultant force on the robot is the negative gradient: $F(q) = -\nabla U_{att}(q) - \nabla U_{rep}(q)$, and the robot moves in the direction of the resultant force.

Cause of local minima: In an obstacle-dense region, at some point the attractive force can be exactly equal and opposite to the repulsive force. The gradient is then zero and the robot is trapped at a “false goal”.

Mitigations: random perturbation (random walk), increasing the potential weight of the global goal, leading the way with global planning, and so on.

✅ Simple to implement and extremely fast to compute (O(number of obstacles)) ✅ Produces continuous force commands, suitable for direct coupling with a controller ❌ Local minimum problem (the robot may get stuck at an equilibrium between attraction and repulsion) ❌ In a narrow passage the repulsive forces from both sides add up, the resultant force points perpendicular to the passage, and the robot cannot get through ❌ Near the goal the attraction approaches zero, so if repulsion is still present the robot may fail to reach the goal

Figure: Potential field obstacle avoidance demo: the robot moves under attractive and repulsive forces and may stall at a local minimum

MPPI (Model Predictive Path Integral)

Idea of Model Predictive Path Integral: MPPI is a stochastic variant of model predictive control (MPC). At the current time step it samples a large number of random control sequences forward (in parallel on the GPU), simulates the future states of each trajectory with the motion model, computes an information-theoretic weighted average of the sequences according to trajectory cost as the current control output, and then repeats in a receding-horizon fashion.

Figure: MPPI path tracking simulation: a large number of trajectories are sampled in parallel on the GPU (translucent lines), and their weighted average gives the optimal control

Algorithm flow:

  1. Take the current control sequence $U = {u_0, u_1, \ldots, u_{T-1}}$ and sample $K$ disturbance sequences $\epsilon^{(k)} \sim \mathcal{N}(0, \Sigma)$
  2. For each trajectory $k$, simulate $T$ steps forward in parallel and compute its cost: \(S^{(k)} = \sum_{t=0}^{T-1} \left[ c(x_t^{(k)}) + \lambda \, u_t^\top \Sigma^{-1} \epsilon_t^{(k)} \right] + \phi(x_T^{(k)})\) Here, $c(x_t)$ is the state cost (collision penalty, path deviation, etc.), $\phi$ is the terminal cost, and $\lambda$ is the temperature parameter.
  3. Compute the exponential weight of each trajectory (the lower the cost, the larger the weight): \(w^{(k)} = \frac{\exp\!\left(-\frac{1}{\lambda} S^{(k)}\right)}{\sum_{j=1}^K \exp\!\left(-\frac{1}{\lambda} S^{(j)}\right)}\)
  4. Update the control sequence with the weighted average: $u_t \leftarrow u_t + \sum_k w^{(k)} \epsilon_t^{(k)}$
  5. Execute $u_0$, shift the sliding window forward one step, and repeat

The temperature parameter $\lambda$ controls the exploration-exploitation trade-off: as $\lambda \to 0$, almost only the lowest-cost trajectory is used (greedy); as $\lambda \to \infty$, all trajectories are weighted equally (purely random).

✅ No need to solve an optimal control problem (only forward simulation, no gradients) ✅ Naturally supports nonlinear systems and non-convex cost functions (such as step costs for collisions) ✅ GPU-parallel sampling ($K$ up to $10^3 \text{–} 10^4$) can handle complex obstacle distributions ❌ Requires a fairly accurate motion model (accumulated simulation error causes trajectory deviation) ❌ Computationally heavy; a GPU is usually needed to reach a real-time control rate ($\geq 10$ Hz)

Parameter tuning guide:

The core parameters of MPPI fall into three groups: sampling scale, exploration intensity, and cost design.

① Sampling scale: $K$ (number of trajectories) × $T$ (number of prediction steps) × $dt$ (step size)

These three jointly determine the computational cost and planning quality, and should be fixed first.

Parameter Nav2 default Physical meaning Tuning direction
$K$ (batch_size) 2000 Total number of trajectories per parallel sampling When GPU compute is sufficient, try increasing it (4000–8000) for better trajectory diversity
$T$ (time_steps) 56 Number of forward prediction steps per trajectory Increase for complex scenes (narrow passages, sharp turns) and for high-speed scenes
$dt$ (model_dt) 0.05 s Time interval per step Total prediction window $= T \times dt$, usually kept at 2–5 s

Rule of thumb: First fix $dt = 0.05$ s, set $T \times dt$ to 1.5 times the time the robot needs to traverse the longest obstacle corridor at maximum speed, and then choose $K$ according to the GPU’s computing power.

② Exploration intensity: $\lambda$ (temperature) and $\Sigma$ (noise covariance)

$\Sigma$ determines the amplitude of the trajectory perturbations, and $\lambda$ determines how strongly high-cost trajectories are suppressed.

Parameter Nav2 default Problem if too small Problem if too large
$\lambda$ (temperature) 0.3 Trusts only a handful of low-cost trajectories; poor robustness to noise All trajectories get nearly equal weights, so the control output jitters randomly
$\sigma_v$ (vx_std) 0.5 m/s Trajectories cluster near the current speed and detours cannot be explored Too many high-speed / reversing trajectories, so control is not smooth
$\sigma_\omega$ (wz_std) 0.5 rad/s Insufficient steering exploration, so avoidance in narrow spaces fails easily Trajectories scatter and the output control turns sharply and often

Tuning approach: First set $\sigma_v, \sigma_\omega$ to 30%–50% of the speed upper limit, then check the coverage of the trajectory bundle in simulation. If the trajectories are all piled together, increase the noise; if they diverge wildly, reduce it. Tune $\lambda$ between 0.1 and 1.0: use a small value (more conservative) in scenes with dense obstacles and a large value (smoother) in open scenes.

③ Critics (cost evaluators): the cost plugin system of Nav2 MPPI

Nav2’s nav2_mppi_controller splits the cost function $c(x_t)$ into a set of pluggable critic plugins. Each critic computes its own score, and the final cost is the weighted sum:

\[c(x_t) = \sum_i w_i \cdot \text{Critic}_i(x_t)\]

Each critic can be switched on or off individually with enabled: true/false, and weight controls its share of the total cost. Nav2’s built-in critics are listed below:

Critic Default weight Scoring criterion Typical tuning scenario
ObstaclesCritic 10.0 Penalizes entering obstacle regions according to the costmap value (LETHAL/INSCRIBED incur an extremely high penalty) Increase when obstacle avoidance is weak; reduce appropriately in open scenes
CostCritic 3.81 Scores by the continuous gradient of the costmap, “softer” than ObstaclesCritic Use together with ObstaclesCritic to provide smooth repulsion
GoalCritic 5.0 Penalizes the distance between the predicted trajectory’s endpoint and the navigation goal Dominates behavior when approaching the goal; can be reduced when far from it
GoalAngleCritic 3.0 Penalizes deviation between the robot’s heading and the goal heading Increase when precise alignment is needed after reaching the goal
PathAlignCritic 14.0 Penalizes the trajectory’s (lateral) deviation from the global path Increase when accurate path following is needed; reduce in dynamic obstacle avoidance scenarios
PathFollowCritic 4.0 Encourages the trajectory to advance along the global path (forward progress) Increase when the robot repeatedly spins in place
PathAngleCritic 2.0 Penalizes the angle difference between the robot’s heading and the path tangent Increase when the robot moves sideways or understeers
PreferForwardCritic 5.0 Penalizes reverse motion ($v_x < 0$) Can be disabled or set to 0 in scenes that allow reversing (parking)
TwirlingCritic 10.0 Penalizes continuous rotation in place (oversteering) Increase this weight when the robot keeps spinning in front of obstacles

Relative weighting: The summed weight of the obstacle critics (ObstaclesCritic + CostCritic) should usually be greater than that of the path-tracking critics (PathAlignCritic + PathFollowCritic); otherwise the robot will run into dynamic obstacles in order to follow the path.

Recommended tuning sequence:

  1. Keep only ObstaclesCritic + CostCritic and tune until the robot goes around obstacles without colliding.
  2. Add PathAlignCritic + PathFollowCritic and tune until the robot follows the global path.
  3. Add GoalCritic + GoalAngleCritic to ensure the correct pose on arrival at the goal.
  4. Add TwirlingCritic / PreferForwardCritic as needed to fix specific motion defects.
  5. Do not change several weights at once. Change one at a time and observe the change in behavior before continuing.

Example YAML configuration:

FollowPath:
  plugin: "nav2_mppi_controller::MPPIController"
  batch_size: 2000
  time_steps: 56
  model_dt: 0.05
  vx_std: 0.5
  wz_std: 0.5
  temperature: 0.3
  critics:
    - plugin: "nav2_mppi_controller::ObstaclesCritic"
      enabled: true
      weight: 10.0
    - plugin: "nav2_mppi_controller::PathAlignCritic"
      enabled: true
      weight: 14.0
    - plugin: "nav2_mppi_controller::GoalCritic"
      enabled: true
      weight: 5.0
    - plugin: "nav2_mppi_controller::TwirlingCritic"
      enabled: true
      weight: 10.0

Whole-body collision checking

The DWA / TEB / potential field / MPPI methods above all approximate the robot as a point or a circle and then inflate obstacles by a fixed radius. That approximation is accurate for circular chassis (sweepers, circular AGVs), but for quadruped robots, forklifts, and long, narrow AGVs, any single inflation radius is wrong:

How the inflation radius is chosen Collision model footprint 0.50 m wide door Consequence
① By width, $r = 0.16$ m Diameter 0.31 m Passage allowed Once the robot turns inside the doorway, its actual lateral extent becomes 0.70 m → missed detection, hits the wall
② By length, $r = 0.35$ m Diameter 0.70 m Passage rejected The robot could clearly pass by going straight → too conservative, takes the long way around
③ Orientation-aware double cylinder Heading straight 0.31 m / turned sideways 0.70 m Passes when going straight, rejected when turned Neither misses collisions nor is overly conservative

(The example body is 0.70 m × 0.31 m, close to the body size of the Unitree Go2)

Idea: Cover the robot body with a small number of geometric primitives so that the collision region changes with orientation. A common practice for quadruped robots is double-cylinder coverage: place two vertical cylinders along the body’s longitudinal axis and pre-inflate the occupancy map by the cylinder radius and the upper and lower clearances, so that whole-body collision checking reduces to querying the voxels at the two circle centers. Two point queries cost almost the same as the point model, while the accuracy approaches that of the rectangular model.

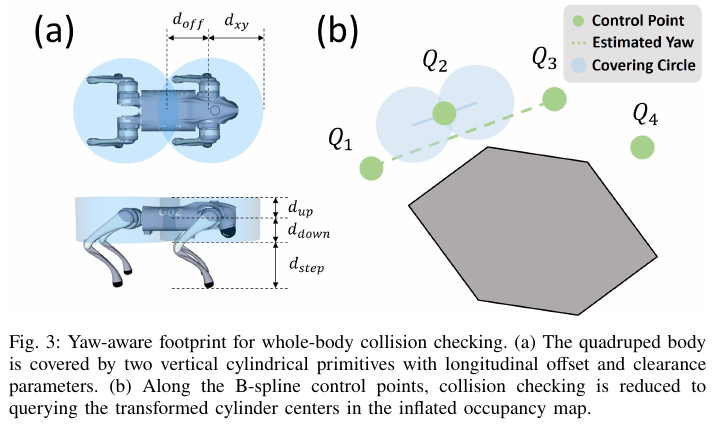

Orientation-aware double-cylinder footprint. (a) The robot body is covered by two vertical cylinders, parameterized by longitudinal offset and clearances; (b) Along the B-spline control points, collision checking reduces to querying the transformed circle centers in the inflated occupancy map
Figure: Orientation-aware double-cylinder footprint. (a) The robot body is covered by two vertical cylinders, parameterized by longitudinal offset and clearances; (b) Along the B-spline control points, collision checking reduces to querying the transformed circle centers in the inflated occupancy map

Key parameters:

Parameter Meaning Choice of value
$d_{off}$ Longitudinal offset of each cylinder center from the body center The two cylinders must cover the front and rear ends of the body, usually 1/4 of the body length
$d_{xy}$ Horizontal clearance (cylinder radius) Slightly larger than half the body width, leaving a margin for localization error
$d_{up}$ Upward clearance Covers the maximum vertical height of the body and overhead sensors, plus a safety margin; used to distinguish overhead obstacles that truly block the way from tabletops/shelves with enough clearance
$d_{down}$ Downward clearance The body’s nominal center height minus $d_{step}$
$d_{step}$ Maximum step height that can be crossed Determined by the robot’s locomotion ability; obstacles lower than this are excluded from the inflation zone

The pair $d_{up}$ and $d_{down}$ gives something a 2.5D elevation map cannot: an elevation map flattens a tabletop into “terrain” and cannot express whether the robot can pass under the table, whereas the upper and lower clearances clearly distinguish “something is above your head but high enough” from “something is under your feet but low enough”.

Where does the orientation come from? Making yaw an optimization variable increases the state dimension and solver complexity. A cheaper approach is to derive the orientation from the local tangent of the position trajectory:

\[\psi_i = \mathrm{atan2}\!\left(\mathbf e_y^\top (Q_{i+1} - Q_{i-1}),\; \mathbf e_x^\top (Q_{i+1} - Q_{i-1})\right)\]

Here, $Q_i$ is a B-spline control point, and $Q_{i+1} - Q_{i-1}$ is a finite-difference approximation of the local direction of motion.

Why this works: A quadruped’s heading can be decoupled from its direction of motion, but aligning the body with the direction of motion exactly minimizes the lateral projection in a narrow passage. This is not only the most natural behavior at execution time (the controller can simply track the trajectory tangent), it also keeps collision checking consistent with actual execution, with no extra yaw control variables.

3D planning for ground robots: suppressing the z gradient

Directly optimizing a ground robot as a “flying 3D rigid body” leads to an absurd result: the planner finds that jumping over the obstacle gives the shortest path and lifts the trajectory upward. That is fine for drones, but entirely infeasible for ground robots, which must stay in contact with the ground.

The correct approach is to let obstacle avoidance happen mainly in the horizontal direction, while the vertical direction only follows the terrain trend:

  1. Height-regularized initialization: First generate an initial path with a polynomial, then redistribute the height linearly between the start and the local goal according to cumulative horizontal arc length. The $xy$ projection stays unchanged and $z$ becomes a linear profile along the horizontal travel distance, which serves as a stable vertical baseline before optimization.
  2. Projected A* guidance: After a colliding segment is detected, the detour is not searched in the full 3D grid but restricted to a tilted search surface interpolated from the heights of the two endpoints. Each search node is represented only by “horizontal grid coordinates + interpolated height”, which reduces the search space from 3D to 2.5D and fits the terrain slope naturally.
  3. z-gradient suppression: Suppress the vertical component during optimization updates, and convert all repulsion into lateral deformation.

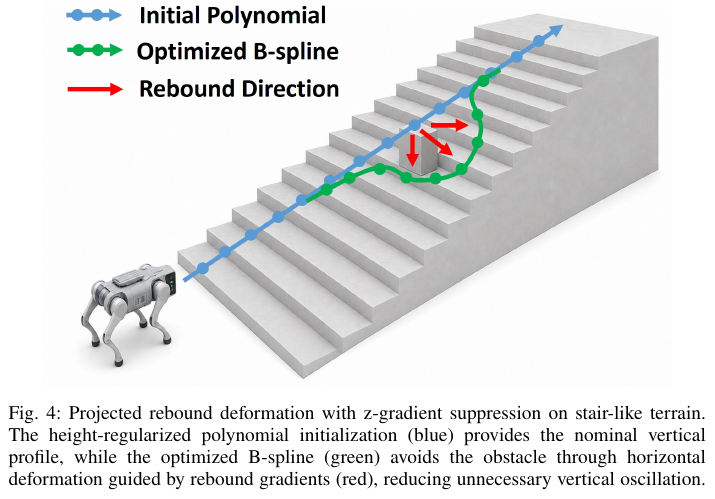

Projected rebound deformation on staircase terrain. Blue is the height-regularized polynomial initialization, which provides a nominal vertical profile; green is the optimized B-spline, which avoids obstacles through horizontal deformation guided by the red rebound gradient and avoids unnecessary vertical oscillation
Figure: Projected rebound deformation on staircase terrain. Blue is the height-regularized polynomial initialization, which provides a nominal vertical profile; green is the optimized B-spline, which avoids obstacles through horizontal deformation guided by the red rebound gradient and avoids unnecessary vertical oscillation

Without this step, the 3D planner would produce a short path that “flies over the obstacle” in the staircase scene; with it, the trajectory keeps the climbing tendency induced by the stairs while avoiding the obstacle laterally.

Local map boundaries and dead-end recovery

During long-distance navigation, the robot maintains only a robot-centered sliding occupancy map (a fixed-size circular buffer: when the map shifts, only the cells being replaced are overwritten and the overlapping region is kept, achieving zero copy). This brings back an old problem that DWA/TEB also encounter: the local planner gets stuck when a subgoal falls behind a newly observed obstacle, or simply outside the map boundary.

The boundary fallback strategy converts “planning failure” into “bounded recovery actions”:

  1. Temporarily add a one-cell-wide virtual free layer outside the rolling map boundary, used only to generate hypothetical paths and not treated as executable free space;
  2. If the goal is unreachable within the map, A* search is allowed to enter the virtual layer;
  3. Take the boundary voxel where the hypothetical path leaves the rolling map as the fallback target, replacing the original local goal;
  4. Generate the final path within the actual rolling map using whole-body collision checking.

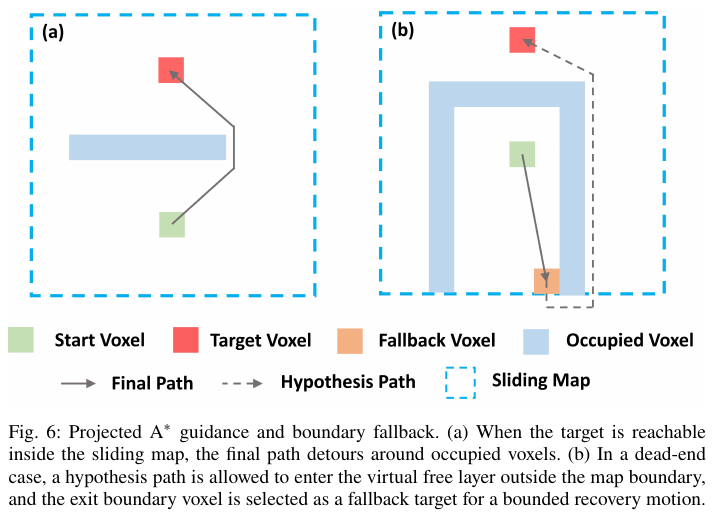

Projected A* guidance and boundary fallback. (a) When the goal is reachable within the rolling map, the final path goes around the occupied voxels; (b) In a dead end, hypothetical paths are allowed to enter the virtual free layer outside the map boundary, and the voxel where the path leaves the boundary is chosen as the fallback target, forming a bounded recovery motion
Figure: Projected A* guidance and boundary fallback. (a) When the goal is reachable within the rolling map, the final path goes around the occupied voxels; (b) In a dead end, hypothetical paths are allowed to enter the virtual free layer outside the map boundary, and the voxel where the path leaves the boundary is chosen as the fallback target, forming a bounded recovery motion

The effect is that the robot does not jitter in place in a dead end. Instead it walks toward the map edge to bring new area into view, and the next replanning round naturally gets it out of trouble.

✅ Collision accuracy close to rectangular/polygon models at a cost close to the point model (only 2 voxels are checked per query point) ✅ The upper and lower clearances clearly distinguish overhead obstacles from low obstacles that can be stepped over, which a 2.5D elevation map cannot do ✅ Orientation is induced by the trajectory tangent and adds no optimization variables ✅ Sliding map + boundary fallback: bounded memory, and the robot can escape from dead ends during long-distance navigation ❌ The double cylinder is still a conservative cover and is not accurate enough for more irregular bodies (such as a mobile platform with a robot arm) ❌ Relies on dense point clouds and high-rate odometry (typically 3D LiDAR + LIO); pure 2D LiDAR platforms cannot use it ❌ Compared with the pure 2D costmaps of DWA/TEB, the memory and update costs of the 3D occupancy grid are significantly higher

When is it needed? When the robot’s aspect ratio is > 2 and the working environment contains narrow passages comparable to the body size or overhanging structures (tables, shelves, pipes). A round chassis running in an open room needs only isotropic inflation, and adding this machinery would only increase cost.

Representative implementation: SCAN-Planner (arXiv:2606.19555, code) was validated on a Unitree Go2 with a Livox Mid-360 and FAST-LIO2, with all modules running in real time on a Jetson Orin NX. Simulation comparisons used MARSIM (40 m × 20 m, 100–500 random obstacles, 50 trials per group):

Method Success Rate ↑ Collision Rate ↓ SPL ↑
EGO-Planner-2D 0.96 0.04 0.88
EGO-Planner-3D 0.76 0.24 0.75
CMU-Planner 0.92 0.08 0.86
ART-Planner 0.44 0.56 0.31
SCAN-Planner 1.00 0.00 0.95

The long-range real-robot tests include cross-floor inspection of a three-story office building (149 m / 251 s) and campus-scale last-mile delivery (367 m / 589 s), where global routing is supplied by a commercial navigation map and local planning is handled by this method.

5.4 Costmap layers

ROS 1 vs. ROS 2: The costmap_2d plugin architecture is the same in both versions (layered overlay, layer plugins with the same names); only the namespace conventions in the YAML configuration differ slightly. Nav2 adds two new layers, VoxelLayer (3D voxel obstacles) and SpeedLimitLayer (regional speed limits); all other concepts are identical.

costmap_2d uses a layered overlay architecture: the layers are merged in order, and the final value of each grid cell is the maximum cost across layers:

Layer Function Typical update rate
Static layer (StaticLayer) Reads the occupancy grid map produced by SLAM and initializes the impassable regions Extremely low (loaded once at startup)
Obstacle layer (ObstacleLayer) Subscribes to laser / point cloud data and marks or clears obstacle cells by ray casting High (in step with the sensor frame rate, about 10–20 Hz)
Voxel layer (VoxelLayer, Nav2) 3D voxel-aware; filters floor/ceiling and projects to 2D High
Inflation layer (InflationLayer) The cost gradient spreading outward from LETHAL cells decays from 253 to 0 Updated together with the obstacle layer
Custom layer Keep-out zones, semantic annotations, speed-limit zones, etc. Custom
Costmap layer structure: the static, obstacle, and inflation layers are overlaid, and the maximum across layers gives the final costmap
Figure: Costmap layer structure: the static, obstacle, and inflation layers are overlaid, and the maximum across layers gives the final costmap

Cost values

Each grid cell stores a uint8 (0–255) cost value, with the following meanings:

Cost value Symbolic constant Meaning
0 FREE Free space, traversable
1–252 — Inflation gradient (higher closer to obstacles); the planner tries to avoid high-cost areas
253 INSCRIBED When the robot center is here, its footprint must touch an obstacle (equivalent to the inscribed circle just touching the edge)
254 LETHAL The obstacle itself (or the direct projection of an obstacle cell)
255 UNKNOWN Unknown area not yet observed by sensors

Footprint (robot footprint)

The footprint is the robot’s 2D polygon outline in the XY plane and is the basis on which the costmap computes dangerous areas. Two radii are derived from it:

  • Inscribed circle radius $r_{ins}$: the radius of the largest circle that fits inside the footprint. When the distance from the robot center to an obstacle is $\leq r_{ins}$, a collision is certain, corresponding to the INSCRIBED (253) cost
  • Circumscribed circle radius $r_{circ}$: the radius of the smallest circle that covers the footprint. When the distance from the robot center to an obstacle lies in $(r_{ins}, r_{circ}]$, a collision is possible (depending on orientation)

Configuration example:

# Circular robot (simple)
robot_radius: 0.22

# Non-circular robot (polygonal footprint)
footprint: [[-0.25, -0.20], [-0.25, 0.20], [0.25, 0.20], [0.25, -0.20]]

Inflation layer cost formula

\[\text{cost}(d) = \begin{cases} 254 & d \leq 0 \text{ (obstacle cell)} \\ 253 & 0 < d \leq r_{ins} \text{ (inside inscribed radius: collision)} \\ 253 \cdot e^{-k(d - r_{ins})} & r_{ins} < d \leq r_{inf} \text{ (inflation gradient)} \\ 0 & d > r_{inf} \end{cases}\]

Here, $d$ is the distance to the nearest obstacle, $r_{inf}$ is inflation_radius, and $k$ is cost_scaling_factor.

Parameter intuition:

  • The larger inflation_radius is, the wider the obstacle’s “range of influence”: narrow passages become harder to traverse, but paths are safer
  • The larger cost_scaling_factor is, the steeper the cost decay: the penalty near an obstacle is high but drops quickly with distance
  • Recommended value: inflation_radius = $r_{ins}$ + 0.1–0.3 m (the safety margin depends on localization accuracy and speed)

Global costmap vs. local costmap

The two costmaps are configured independently and serve different planners:

Item Global costmap Local costmap
Range The entire map (or a large area) A small window around the robot (such as 4 m × 4 m)
Follows the robot No (fixed in the map frame) Yes (rolling window, always centered on the robot)
Layers included Static layer + obstacle layer (optional) + inflation layer Obstacle layer + inflation layer (no static layer needed)
Update rate Low (the static layer barely changes) High (driven by real-time sensor data)
Consumer Global planner (A*, Navfn) Local planner (DWA, TEB, MPPI)
Main role Provides a collision-free skeleton of the global path Avoids dynamic obstacles in real time and executes smoothly

Key difference: The local costmap does not load the static layer, because the static layer is a large, globally consistent map, and loading it into a small window would miss “known obstacles” outside the window. The local map trusts only real-time data within the current sensor field of view.

5.5 Comparison of planning algorithms

Algorithm Type Optimality Completeness Speed Suitable scenarios
Dijkstra Search (global) ✅ Optimal ✅ Slow Small-scale grid maps
A* Search (global) ✅ Optimal ✅ Medium Indoor navigation, autonomous driving
Hybrid A* Search (global) Approximate ✅ Medium Vehicles with nonholonomic constraints (autonomous parking)
FMM Search (global) ✅ Optimal (continuous) ✅ Slow (full grid) Non-uniform terrain, multi-query planning, smooth-path requirements
RRT Sampling (global) ❌ Probabilistically complete Fast High-dimensional spaces, robot arms
RRT* Sampling (global) Asymptotically optimal Probabilistically complete Medium High-dimensional spaces
DWA Local Locally optimal ❌ Extremely fast Real-time obstacle avoidance for indoor mobile robots
TEB Local Locally optimal ❌ Medium Complex local environments that need smooth trajectories
Potential field Local ❌ ❌ Extremely fast Simple scenes, assisted guidance
MPPI Sampling (local) Asymptotically optimal Probabilistically complete Medium (GPU-accelerated) Nonlinear dynamics, off-road unmanned vehicles, dynamic obstacle avoidance

6. Path tracking

Path planning provides an ideal path, and the job of the path tracking controller is to make the robot actually follow it. Because of noise, model errors, and external disturbances in the real world, the controller must compute corrections in real time.

6.1 Pure Pursuit control

Intuition for Pure Pursuit control: Imagine you are driving, fixing your eyes on a target point a set distance ahead (the lookahead distance $L_d$) and constantly steering toward it. That is the idea behind Pure Pursuit.

Core formula:

\[\delta = \arctan\left(\frac{2L\sin\alpha}{L_d}\right)\]

Here:

  • $\delta$ = front wheel steering angle (the control output)
  • $L$ = wheelbase
  • $\alpha$ = the angle between the direction to the target point and the vehicle heading
  • $L_d$ = lookahead distance (usually 1–2 times the distance traveled at the current speed)
Pure Pursuit geometry: the rear axle center is the reference point; a circle of radius L_d (the lookahead distance) around it intersects the reference path at the target point T, and the angle α determines the front wheel steering angle δ
Figure: Pure Pursuit geometry: the rear axle center is the reference point; a circle of radius $L_d$ (the lookahead distance) around it intersects the reference path at the target point T, and the angle α determines the front wheel steering angle δ

✅ Extremely simple to implement ✅ Robust to path noise (a natural smoothing effect) ❌ The lookahead distance must be tuned by hand ❌ Large tracking error at high speed (purely geometric control that ignores dynamics)

Practical suggestions for tuning the lookahead distance $L_d$:

$L_d$ is the only key parameter that must be tuned in Pure Pursuit, and it has a large effect on performance:

$L_d$ setting Behavior Suitable scenarios
Too small (< 0.5m @ 1m/s) Steering is too aggressive and oscillates frequently —
Moderate Smooth tracking with slight path error General navigation
Too large (> 3m @ 1m/s) Cuts corners in “big arcs”; good on straights but large error in turns High-speed straight driving

Speed-adaptive parameter (Adaptive Pure Pursuit): Use $L_d = k \cdot v$, where typical values of $k$ are:

  • Indoor robots (up to 1 m/s): $k \approx 1.5 \text{–} 2.0$
  • Warehouse AGVs (up to 2 m/s): $k \approx 1.0 \text{–} 1.5$
  • Autonomous driving (up to 30 km/h): $k \approx 0.5 \text{–} 1.0$

Another practical tip: set a minimum value for $L_d$ (such as 0.3 m) to avoid the oscillation caused by the lookahead distance approaching zero at low speed.

Figure: Pure Pursuit path tracking simulation: the vehicle looks ahead to the lookahead point and smoothly tracks the reference path

6.2 Adaptive tracking control

Adaptive Pure Pursuit dynamically couples the lookahead distance $L_d$ to the speed:

\[L_d = k \cdot v\]

Here, $k$ is a proportional coefficient and $v$ is the current speed. At high speed the lookahead is longer (more stable), and at low speed it is shorter (more accurate). This solves the problem that a fixed lookahead distance performs very differently at different speeds.

Figure: Adaptive Pure Pursuit path tracking: the lookahead distance is adjusted dynamically with speed, giving stable performance across speed ranges

6.3 Rear wheel feedback control

Rear wheel feedback uses the center of the vehicle’s rear axle as the tracking reference point (rather than the front axle or the center of gravity) and directly eliminates the rear wheel’s lateral and heading errors relative to the reference path. It has stronger mathematical convergence guarantees than Pure Pursuit.

Figure: Rear wheel feedback path tracking simulation: with the rear axle as the reference point, the lateral error converges faster

6.4 Stanley controller

The control law proposed by the Stanford autonomous driving team (for the DARPA Challenge), based on the midpoint of the front axle:

\[\delta = \psi_e + \arctan\left(\frac{k \cdot e}{v}\right)\]

Here:

  • $\psi_e$ = heading error
  • $e$ = lateral deviation of the front axle from the path
  • $k$ = gain coefficient
  • $v$ = current speed

The first term corrects the heading error, and the second corrects the lateral deviation. The faster the vehicle moves, the smaller the lateral correction (to avoid sharp turns at high speed).

✅ More accurate than Pure Pursuit ✅ Good accuracy at low speed (parking) ❌ At extremely low speed, the $\arctan(k \cdot e / v)$ term saturates and must be handled specially ❌ Does not explicitly consider path curvature

Figure: Stanley controller path tracking simulation: heading error and lateral deviation are corrected simultaneously, with higher accuracy in turns

6.5 LQR path tracking

The Linear Quadratic Regulator (LQR) formulates path tracking as an optimal control problem. Under a linearized vehicle model, LQR solves for the optimal control law that minimizes the following cost function:

\[J = \sum_{t=0}^{\infty} \left( \mathbf{e}_t^T \mathbf{Q} \mathbf{e}_t + u_t^T \mathbf{R} u_t \right)\]

Here, \(\mathbf{e}_t\) is the tracking error (lateral deviation and heading error), $u_t$ is the control input (steering angle), and $\mathbf{Q}$ and $\mathbf{R}$ are weight matrices. A larger $\mathbf{Q}$ prioritizes reducing tracking error; a larger $\mathbf{R}$ prioritizes smoother control.

✅ Theoretically optimal and highly accurate ✅ Smooth system response ❌ Depends on an accurate linearized model ❌ Tuning the $\mathbf{Q}$ and $\mathbf{R}$ matrices requires experience

Figure: LQR path tracking simulation: the optimal control law minimizes tracking error, and the response is smooth and stable

6.6 Path tracking comparison

Controller Tracking accuracy Computational cost Number of parameters Suitable speed Typical application
Pure Pursuit Low–medium Very low 1 ($L_d$) Low–medium Simple indoor robots
Adaptive Pure Pursuit Medium Very low 1 ($k$) Full speed range General mobile robots
Stanley Medium–high Low 1 ($k$) Low–high Autonomous driving
Rear wheel feedback Medium–high Low Few Full speed range Differential-drive robots
LQR High Medium 2 ($\mathbf{Q}$, $\mathbf{R}$) Low–high Autonomous driving, high-precision robots

7. Kinematic models

Every path planning and motion control algorithm builds on a specific kinematic model, which determines its velocity constraints, trajectory curvature, and control variables. Different chassis structures have entirely different state equations, which directly determine which planning and tracking algorithms are usable and how constraints are modeled. This chapter systematically covers three mainstream models.


7.1 Differential drive

Mechanical configuration

A differential-drive chassis consists of two independently driven wheels (left wheel $\omega_L$, right wheel $\omega_R$) and a number of passive caster wheels. Steering is achieved through the speed difference between the two wheels. Typical platforms: TurtleBot, Husky, indoor mobile robots.

Differential-drive chassis structure: the left and right wheels are driven independently, r is the wheel radius, and 2b is the track width
Differential-drive chassis structure: the left and right wheels are driven independently, $r$ is the wheel radius, and $2b$ is the track width

Kinematic equations

Let the wheel radius be $r$ and the track width (the distance between wheel centers) be $2b$. Then:

\[v = \frac{r(\omega_R + \omega_L)}{2}, \quad \omega = \frac{r(\omega_R - \omega_L)}{2b}\]

The robot’s state $\mathbf{q} = [x, y, \theta]^\top$ in the world frame satisfies:

\[\dot{x} = v\cos\theta, \quad \dot{y} = v\sin\theta, \quad \dot{\theta} = \omega\]

In matrix form:

\[\dot{\mathbf{q}} = \begin{bmatrix} \cos\theta & 0 \\ \sin\theta & 0 \\ 0 & 1 \end{bmatrix} \begin{bmatrix} v \\ \omega \end{bmatrix}\]

The control inputs are the linear velocity $v$ and the angular velocity $\omega$. Each wheel’s rotation speed follows from the inverse kinematics:

\[\omega_R = \frac{v + b\omega}{r}, \quad \omega_L = \frac{v - b\omega}{r}\]

Constraints and properties

Property Description
Degrees of freedom 2 ($v$, $\omega$), nonholonomic constraint (cannot translate sideways)
Turning radius $R = v / \omega$, can be $0$ (rotate in place)
Instantaneous center of rotation Lies on the line through the two wheels; $\omega_L = -\omega_R$ rotates in place about the axle center
Velocity constraints $\vert v \vert \le v_{\max}$, $\vert\omega\vert \le \omega_{\max}$, and each wheel speed stays within the hardware limit

Impact on planning algorithms

  • DWA: The velocity sampling space is the two-dimensional rectangle in $(v, \omega)$. Rotation in place is supported, with no minimum turning radius constraint.
  • TEB: Can directly constrain $v$, $\omega$, and their derivatives (accelerations); the differential model leaves a lot of freedom in the optimization.
  • Pure Pursuit / LQR: $\omega$ is usually used as the control output, directly controlling the angular velocity.

7.2 Ackermann steering

Mechanical configuration

The Ackermann chassis follows the steering geometry of a car: rear-wheel drive and front-wheel steering, with the two front wheels turning about their own steering knuckles. Ideally the instantaneous centers of rotation of the four wheels are collinear, which eliminates tire sideslip. Typical platforms: autonomous passenger cars, AgileX Scout, Jackal (a small 4WD/Ackermann hybrid).

Ackermann steering geometry: the instantaneous centers of rotation of the four wheels are collinear, and the inner and outer wheels turn through different angles to eliminate sideslip
Ackermann steering geometry: the instantaneous centers of rotation of the four wheels are collinear, and the inner and outer wheels turn through different angles to eliminate sideslip

Geometric relations

Let the wheelbase (distance between the front and rear axles) be $L$ and the equivalent front wheel steering angle be $\delta$. The turning radius is then:

\[R = \frac{L}{\tan\delta}\]

The actual inner and outer front wheel angles satisfy (the full Ackermann condition):

\[\cot\delta_{out} - \cot\delta_{in} = \frac{W}{L}\]

Here, $W$ is the track width. In practice a single equivalent front-wheel steering angle $\delta$ is commonly used.

Kinematics (bicycle model)

Merging the front and rear wheels into a single wheel gives the classic bicycle model:

Simplified bicycle model: wheelbase L, front wheel angle δ, with the rear wheel as the reference point
Simplified bicycle model: wheelbase $L$, front wheel angle $\delta$, with the rear wheel as the reference point
\[\dot{x} = v\cos\theta, \quad \dot{y} = v\sin\theta, \quad \dot{\theta} = \frac{v\tan\delta}{L}\]

The control inputs are the longitudinal speed $v$ and the front wheel angle $\delta$, and the curvature is $\kappa = \tan\delta / L$.

Discretization (forward Euler, step $\Delta t$):

\[\begin{aligned} x_{k+1} &= x_k + v_k \cos\theta_k \cdot \Delta t \\ y_{k+1} &= y_k + v_k \sin\theta_k \cdot \Delta t \\ \theta_{k+1} &= \theta_k + \frac{v_k \tan\delta_k}{L} \cdot \Delta t \end{aligned}\]

Constraints and properties

Property Description
Degrees of freedom 2 ($v$, $\delta$), nonholonomic constraint
Minimum turning radius $R_{\min} = L / \tan\delta_{\max}$; cannot rotate in place
Curvature continuity The steering rate is limited by the steering actuator, so the path must have continuous curvature ($C^1$)
High-speed stability The tire slip angle cannot be ignored at high speed, so a dynamic model is needed instead

Impact on planning algorithms

  • Hybrid A*: With $(x, y, \theta)$ as the state, nodes are expanded with the Ackermann equations of motion, producing a continuous, curvature-bearing path that can be tracked directly.
  • TEB: Ackermann mode must be enabled to constrain $\lvert\delta\rvert \le \delta_{\max}$ and $\dot{\delta}$, which bounds the trajectory’s minimum curvature radius.
  • Pure Pursuit / Stanley: These output the front wheel angle $\delta$ and are tracking control laws derived specifically for Ackermann vehicles.
  • MPC: Uses the bicycle model as the prediction model and constrains $\delta$ and $\dot{\delta}$; suited to high-speed, accurate tracking.

7.3 Omnidirectional drive

Mechanical configuration

An omnidirectional chassis uses special wheels (Mecanum wheels or omni wheels) to translate independently in any direction within the plane without rotating the robot body. Typical structures:

Configuration Number of wheels Features
Three-wheel omnidirectional 3 The wheels are spaced 120° apart; simple structure and good adaptability to the ground
Four-wheel Mecanum 4 Rollers at 45° to the axles; the most common choice in industrial warehousing
Four-wheel omnidirectional (90° rollers) 4 Rollers perpendicular to the axles; weaker steering torque than Mecanum

Typical platforms: warehouse AMRs (Amazon Kiva class) and laboratory mobile manipulators (HSR, TIAGo).

Four-wheel Mecanum chassis layout: the rollers are at 45° to the axles; the front-left and rear-right rollers share one orientation, and the front-right and rear-left rollers the opposite one
Four-wheel Mecanum chassis layout: the rollers are at 45° to the axles; the front-left and rear-right rollers share one orientation, and the front-right and rear-left rollers the opposite one

Four-wheel Mecanum kinematic equations

Assume the four wheels form a rectangle with half wheelbases $l_x$ (longitudinal) and $l_y$ (lateral), wheel radius $r$, and rollers at $45°$ to the wheel axle. The inverse kinematics (robot velocity → wheel speeds) is then:

\[\begin{bmatrix} \omega_1 \\ \omega_2 \\ \omega_3 \\ \omega_4 \end{bmatrix} = \frac{1}{r} \begin{bmatrix} 1 & -1 & -(l_x+l_y) \\ 1 & 1 & (l_x+l_y) \\ 1 & 1 & -(l_x+l_y) \\ 1 & -1 & (l_x+l_y) \end{bmatrix} \begin{bmatrix} v_x \\ v_y \\ \omega_z \end{bmatrix}\]

Wheel numbering convention: $\omega_1$ = front left, $\omega_2$ = front right, $\omega_3$ = rear left, $\omega_4$ = rear right.

For forward kinematics (wheel speeds → robot velocity), take the pseudo-inverse of the matrix above (at full rank, $\frac{1}{4}$ times its transpose):

\[\begin{bmatrix} v_x \\ v_y \\ \omega_z \end{bmatrix} = \frac{r}{4} \begin{bmatrix} 1 & 1 & 1 & 1 \\ -1 & 1 & 1 & -1 \\ -\frac{1}{l_x+l_y} & \frac{1}{l_x+l_y} & -\frac{1}{l_x+l_y} & \frac{1}{l_x+l_y} \end{bmatrix} \begin{bmatrix} \omega_1 \\ \omega_2 \\ \omega_3 \\ \omega_4 \end{bmatrix}\]

State equation in the world frame (including heading angle $\theta$):

\[\dot{\mathbf{q}} = \begin{bmatrix} \cos\theta & -\sin\theta & 0 \\ \sin\theta & \cos\theta & 0 \\ 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} v_x \\ v_y \\ \omega_z \end{bmatrix}\]

Three-wheel omni kinematics

Three-wheel omnidirectional chassis: the three wheels are evenly spaced at 120°, and d is the distance from each wheel center to the chassis center
Three-wheel omnidirectional chassis: the three wheels are evenly spaced at 120°, and $d$ is the distance from each wheel center to the chassis center

The three wheels are spaced $120°$ apart. Let the mounting angle of wheel $i$ be $\phi_i = 120°(i-1)$:

\[\omega_i = \frac{1}{r}\left(-\sin\phi_i \cdot v_x + \cos\phi_i \cdot v_y + d \cdot \omega_z\right), \quad i=1,2,3\]

Here, $d$ is the distance from each wheel to the chassis center. The inverse solution is:

\[\begin{bmatrix} v_x \\ v_y \\ \omega_z \end{bmatrix} = \frac{2r}{3} \begin{bmatrix} -\sin\phi_1 & -\sin\phi_2 & -\sin\phi_3 \\ \cos\phi_1 & \cos\phi_2 & \cos\phi_3 \\ \frac{1}{2d} & \frac{1}{2d} & \frac{1}{2d} \end{bmatrix} \begin{bmatrix} \omega_1 \\ \omega_2 \\ \omega_3 \end{bmatrix}\]

Constraints and properties

Property Description
Degrees of freedom 3 ($v_x$, $v_y$, $\omega_z$), holonomic motion
Lateral translation Can move freely in any direction with no lateral constraint, giving the most freedom in path planning
Terrain adaptability Mecanum rollers contact the ground at small patches; slip is severe on uneven ground
Odometry accuracy Roller slip causes large errors in wheel odometry, so IMU/LiDAR fusion is required
Load capacity Weaker than differential/Ackermann because of stress concentration at the roller contacts

Impact on planning algorithms

  • Global planning: Standard A* / Dijkstra can plan directly on the grid map. The path has no curvature constraint, and the robot can move in any direction.
  • DWA: The velocity space expands to the three dimensions $(v_x, v_y, \omega_z)$ (or equivalently $(v, \theta_{vel}, \omega_z)$), giving a larger sampling space.
  • Path tracking: No complex tracking control law is needed. Simple PID controllers can control the $x$, $y$, and $\theta$ channels independently, since they are decoupled.
  • MPC: The prediction model is linear (ignoring slip) and the constraints are per-wheel speed limits, so the design is simpler than for Ackermann.

7.4 Comparison of the three models

Dimension Differential drive Ackermann steering Omnidirectional wheels (Mecanum)
Constraint type Nonholonomic (2-DoF) Nonholonomic (2-DoF) Holonomic (3-DoF)
Rotate in place Supported Not supported Supported
Lateral translation Not supported Not supported Supported
Minimum turning radius 0 $L/\tan\delta_{\max}$ 0
Path curvature requirement Low Requires continuous curvature Unconstrained
High-speed stability Medium High (mature automotive solution) Low (slip)
Odometry accuracy High Medium (tire slip) Low (roller slip)
Compatible planning algorithms DWA, TEB, Pure Pursuit Hybrid A*, TEB (Ackermann), Stanley, MPC A*, DWA (3D), decoupled PID
Typical application scenarios Indoor service robots Autonomous driving, outdoor vehicles Warehouse AMRs, mobile manipulation

Engineering selection principles: Prefer differential drive for narrow indoor passages (flexible turning, low cost); prefer Ackermann for high-speed outdoor use (good stability, mature tire models); use omnidirectional wheels for warehouse and manipulation scenarios that need lateral movement (high efficiency, but slip must be compensated).


8. Motion control

Path tracking (Chapter 6) solves the geometric problem of “which way to go”, while motion control solves the dynamic problem of “how to execute these commands accurately”, which requires accounting for the system model, physical constraints, disturbance rejection, and optimality. This chapter introduces the model-based control methods commonly used in robot navigation.

8.1 PID control

PID (Proportional-Integral-Derivative) is the most widely used controller in engineering and the foundation for understanding more complex control algorithms.

Control law:

\[u(t) = K_p e(t) + K_i \int_0^t e(\tau)\,d\tau + K_d \frac{de(t)}{dt}\]

Here, $e(t)$ is the error (such as lateral deviation or heading error), and the three terms are:

  • P (proportional): The larger the current error, the larger the correction; the response is fast but may overshoot.
  • I (integral): Eliminates steady-state error (accumulated past error); too large an integral gain can cause oscillation
  • D (derivative): Anticipates the error trend and suppresses overshoot; sensitive to noise

Discrete form (used in actual code):

\[u_k = K_p e_k + K_i \sum_{j=0}^{k} e_j \Delta t + K_d \frac{e_k - e_{k-1}}{\Delta t}\]
PID controller structure: the P, I, and D terms are computed in parallel and summed into the control output u(t); the output y(t) is fed back and compared with the setpoint r(t) to obtain the error e(t)
Figure: PID controller structure: the P, I, and D terms are computed in parallel and summed into the control output u(t); the output y(t) is fed back and compared with the setpoint r(t) to obtain the error e(t)

✅ Simple to implement, with intuitive parameter tuning ✅ No system model required (purely empirical tuning) ❌ Fixed parameters make it hard to adapt to nonlinear and time-varying systems ❌ Cannot handle constraints explicitly (such as maximum speed or maximum steering angle)

8.2 Fuzzy PID

Fuzzy PID is a direct evolution of PID: it keeps PID’s feedback loop structure and introduces a fuzzy inference system that self-tunes the three gains $K_p, K_i, K_d$ online, so the controller adapts automatically to different operating conditions.

System structure

flowchart LR
    E["e(t)\nError"] --> FIS
    DE["ė(t)\nError rate of change"] --> FIS
    subgraph FIS["Fuzzy inference engine"]
        F1["Fuzzification"] --> F2["Rule inference\nRule Inference"]
        F2 --> F3["Defuzzification"]
    end
    FIS -->|ΔKp, ΔKi, ΔKd| ADD["Parameter update\nKp = Kp₀+ΔKp\nKi = Ki₀+ΔKi\nKd = Kd₀+ΔKd"]
    ADD --> PID["PID control law\nu(t)"]
    PID --> Plant["Plant"]
    Plant -->|"y(t)"| FB(( ))
    FB --> E
    FB --> DE

Fuzzification

Map the continuous error $e$ and error rate $\dot{e}$ to 7 linguistic variables (fuzzy sets):

Symbol Meaning
NB Negative Big
NM Negative Medium
NS Negative Small
ZO Zero
PS Positive Small
PM Positive Medium
PB Positive Big

Each linguistic variable corresponds to a membership function (usually triangular or trapezoidal). Evaluating the membership function on a continuous input gives the “degree of membership” in each linguistic variable.

Fuzzy rules (rule base)

Rules take the form IF $e$ is A AND $\dot{e}$ is B THEN $\Delta K_p$ is C. Taking $\Delta K_p$ as an example, the typical rule table (7 × 7) is:

$e$ \ $\dot{e}$ NB NM NS ZO PS PM PB
NB PB PB PM PM PS ZO ZO
NM PB PB PM PS PS ZO NS
NS PM PM PM PS ZO NS NS
ZO PM PM PS ZO NS NM NM
PS PS PS ZO NS NS NM NM
PM PS ZO NS NM NM NM NB
PB ZO ZO NM NM NM NB NB

Rule intuition: When the error is large (NB/PB), the proportional gain should be increased ($\Delta K_p$ takes PB) to pull the error back quickly; when the error approaches zero (ZO), the proportional gain should be reduced and the derivative gain increased to prevent overshoot. The rule tables for $\Delta K_i$ and $\Delta K_d$ follow similar logic but serve different goals.

Defuzzification

The most commonly used method is the centroid (center of gravity) method:

\[\Delta K_p = \frac{\sum_j \mu_j \cdot c_j}{\sum_j \mu_j}\]

Here, $\mu_j$ is the activation strength of rule $j$ and $c_j$ is the center value of the corresponding output fuzzy set. This gives crisp increments $\Delta K_p$, $\Delta K_i$, and $\Delta K_d$, which are added to the base values:

\[K_p = K_{p0} + \Delta K_p, \quad K_i = K_{i0} + \Delta K_i, \quad K_d = K_{d0} + \Delta K_d\]

Core differences from fixed-gain PID

Scenario Fixed PID Fuzzy PID
Large-error startup phase Gains are fixed and may overshoot Automatically increases $K_p$ to close the gap quickly
Approaching the goal Integral saturation causes oscillation Automatically decreases $K_i$ and increases $K_d$, braking smoothly
Sudden load change / nonlinear disturbance Gains must be retuned manually Fuzzy rules compensate automatically

✅ No accurate model required: driven purely by empirical rules, suited to nonlinear systems that are hard to model ✅ Computationally efficient: a fuzzy inference needs only table lookup and interpolation (microsecond level), suitable for embedded platforms ✅ Robust: better suppression of parameter perturbations and external disturbances than fixed-gain PID ❌ The rule table requires domain experience to design, and the number of rules grows exponentially with the input dimension (7×7=49 entries per gain) ❌ No rigorous optimality or stability proofs (compare LQR/MPC)

8.3 Model predictive control (MPC)

MPC is currently one of the most popular methods in autonomous driving and high-precision robot control. Core idea: In each control cycle, solve a finite-horizon optimization problem based on the current state and the system model, output an optimal control sequence, execute only its first step, and solve again in the next cycle. This is “receding-horizon optimization with feedback correction”.

MPC receding horizon: at the current time k, predict N steps ahead to obtain the optimal control sequence; execute only the first step u_k, then re-optimize from the new state in the next cycle, which gives rolling feedback
Figure: MPC receding horizon: at the current time k, predict N steps ahead to obtain the optimal control sequence; execute only the first step u_k, then re-optimize from the new state in the next cycle, which gives rolling feedback

Form of the optimization problem:

\[\min_{u_0, \ldots, u_{N-1}} \sum_{k=0}^{N-1} \left( \mathbf{x}_k^T \mathbf{Q} \mathbf{x}_k + u_k^T \mathbf{R} u_k \right) + \mathbf{x}_N^T \mathbf{P} \mathbf{x}_N\] \[\text{s.t.} \quad \mathbf{x}_{k+1} = f(\mathbf{x}_k, u_k), \quad \mathbf{x}_k \in \mathcal{X}, \quad u_k \in \mathcal{U}\]

Here:

  • $N$ = prediction horizon, typically 10–30 steps
  • $\mathbf{Q}, \mathbf{R}$ = weight matrices for state error and control effort (large $\mathbf{Q}$ prioritizes reducing tracking error; large $\mathbf{R}$ prioritizes reducing control magnitude)
  • $\mathcal{X}, \mathcal{U}$ = state and control constraints (such as maximum speed and maximum steering angle)
  • $\mathbf{P}$ = terminal cost matrix (to ensure closed-loop stability)

✅ Handles constraints explicitly: physical limits such as the speed upper bound and acceleration limits are written directly into the optimization constraints ✅ Multi-step look-ahead: predicts the next $N$ steps, so it slows down before a bend instead of reacting only after the curvature increases ✅ Unified framework: path tracking, speed planning, and soft obstacle avoidance can be handled in the same optimization problem ❌ Computationally heavy, requiring an efficient QP/NLP solver (OSQP, CasADi+IPOPT) ❌ Depends on an accurate system model; model mismatch degrades performance ❌ Complex tuning ($N$, $\mathbf{Q}$, $\mathbf{R}$, constraint bounds, terminal sets)

Linear MPC vs. Nonlinear MPC (NMPC):

Type Model Solver Computational cost Typical scenario
Linear MPC Linear kinematic model QP (OSQP) Medium Low-speed AGVs, mobile robots
Nonlinear MPC Full nonlinear model NLP (CasADi+IPOPT) High High-speed autonomous driving, UAVs

8.4 Comparison of controllers

Controller Needs a model Handles constraints Computational cost Accuracy Typical application
PID No No Very low Medium Embedded chassis, simple scenes
Fuzzy PID No No Low Medium–high Nonlinear disturbances, embedded platforms
LQR Yes (linear) No (soft constraints) Medium High High-precision path tracking
Linear MPC Yes (linear) Yes Medium–high High Low-speed robots, AGVs
Nonlinear MPC Yes (nonlinear) Yes High Extremely high High-speed autonomous driving, drones

9. Full navigation stack integration

9.1 Coordinate frames and the TF tree

Exchanging data between the modules of the navigation stack (sensing, localization, planning, control) requires being clear about which coordinate frame each pose or point is expressed in. ROS uses the TF2 library to manage this transform tree in a unified way.

Four core coordinate frames

Frame ROS frame name Semantics Publisher
World/map frame map Globally consistent fixed frame; the origin is usually the starting point of mapping SLAM / AMCL localization node
Odometry frame odom Origin at the start; obtained by integrating odometry, continuous but drifting Wheel odometry / IMU fusion node
Robot body frame base_link Fixed at the chassis center Robot driver / URDF
Sensor frame lidar_link, etc. Rigidly attached to each sensor’s mounting position URDF static TF

How the TF tree relates to each module:

flowchart TB
    MAP["🗺️ map\nGlobally consistent fixed frame\norigin = starting point of mapping"]
    ODOM["📍 odom\nOdometry integration frame\nContinuous but drifting"]
    BASE["🤖 base_link\nRobot chassis center"]
    LIDAR["📡 lidar_link"]
    CAM["📷 camera_link"]
    IMU["🔄 imu_link"]

    SLAM["SLAM / AMCL\nLocalization node"]
    WHEEL["Wheel odometry\n/ IMU fusion"]
    URDF["URDF\nstatic transforms"]

    MAP -->|"T_map^odom\nCorrects drift (jumps)"| ODOM
    ODOM -->|"T_odom^base\ncontinuous, smooth"| BASE
    BASE -->|"Fixed extrinsics"| LIDAR
    BASE -->|"Fixed extrinsics"| CAM
    BASE -->|"Fixed extrinsics"| IMU

    SLAM -.->|publishes| MAP
    WHEEL -.->|publishes| ODOM
    URDF -.->|publishes| BASE

    style MAP fill:#dbeafe,stroke:#3b82f6,color:#1e3a5f
    style ODOM fill:#fef9c3,stroke:#eab308,color:#713f12
    style BASE fill:#dcfce7,stroke:#22c55e,color:#14532d
    style LIDAR fill:#f3f4f6,stroke:#9ca3af,color:#374151
    style CAM fill:#f3f4f6,stroke:#9ca3af,color:#374151
    style IMU fill:#f3f4f6,stroke:#9ca3af,color:#374151
    style SLAM fill:#ede9fe,stroke:#8b5cf6,color:#4c1d95
    style WHEEL fill:#ede9fe,stroke:#8b5cf6,color:#4c1d95
    style URDF fill:#ede9fe,stroke:#8b5cf6,color:#4c1d95
XYZ axes of the three core coordinate frames: map (blue point) is fixed at the global origin, odom (orange point) drifts with the odometry, and base_link (green point) moves with the robot and has a yaw angle θ; the Z axis points out of the page (right-handed frame)
Figure: XYZ axes of the three core coordinate frames: map (blue point) is fixed at the global origin, odom (orange point) drifts with the odometry, and base_link (green point) moves with the robot and has a yaw angle θ; the Z axis points out of the page (right-handed frame)

Why are map and odom separated?

  • odom ensures continuity: odometry integration does not jump, so the controller can track smoothly
  • map ensures global consistency: SLAM loop closures or AMCL corrections update map→odom without affecting the continuity of odom→base_link
  • If the two were merged into one frame, every localization correction would make the pose jump instantaneously and destabilize the controller.

The map→odom transform is exactly the output of the localization node, which corrects the accumulated odometry drift in real time.

Homogeneous transformation matrix

Transforms between coordinate frames are represented by $4\times4$ homogeneous matrices (elements of $SE(3)$):

\[T_{A}^{B} = \begin{bmatrix} R_{3\times3} & t_{3\times1} \\ \mathbf{0}^T & 1 \end{bmatrix}, \quad p^B = T_A^B \cdot p^A\]

Chaining transforms: $T_{map}^{base} = T_{map}^{odom} \cdot T_{odom}^{base}$

Inverse transform: $T_B^A = \left(T_A^B\right)^{-1} = \begin{bmatrix} R^T & -R^T t \ \mathbf{0}^T & 1 \end{bmatrix}$

Planar navigation reduces to $SE(2)$, and the pose $(x, y, \theta)$ corresponds to:

\[T = \begin{bmatrix} \cos\theta & -\sin\theta & x \\ \sin\theta & \cos\theta & y \\ 0 & 0 & 1 \end{bmatrix}\]

Debugging tips: ros2 run tf2_tools view_frames exports the current TF tree as a PDF; ros2 run tf2_ros tf2_echo map base_link prints the transform between two frames in real time.

9.2 The ROS 1 navigation stack

ROS 1’s move_base provides a classic integrated navigation stack:

flowchart TB
    subgraph MoveBase["move_base"]
        GM["Global planner\nNavfn / GlobalPlanner"] --> GCM["Global costmap\nGlobal Costmap"]
        LM["Local planner\nDWA / TEB"] --> LCM["Local costmap\nLocal Costmap"]
        GM -->|global path: global_plan| LM
        LM -->|velocity command: cmd_vel| VEL
        REC["Recovery behaviors\nRecovery Behaviors"]
    end

    GOAL[/goal pose: goal/] --> MoveBase
    MAP[/static map: map/] --> GCM
    SCAN[/LiDAR scan/] --> GCM & LCM
    ODOM[/odometry: odom/] --> MoveBase
    VEL[/cmd_vel/] --> Robot["Robot chassis"]
    AMCL["AMCL localization"] --> MoveBase
    LM -- stuck / timeout --> REC
    REC -- retry after recovery --> GM

The move_base state machine

move_base has an internal state machine with three states:

stateDiagram-v2
    [*] --> PLANNING : goal received
    PLANNING --> CONTROLLING : Global planning succeeded
    PLANNING --> CLEARING : Planning failed
    CONTROLLING --> PLANNING : Local planner requests replanning
    CONTROLLING --> CLEARING : Robot stuck / timeout
    CONTROLLING --> [*] : Goal reached
    CLEARING --> PLANNING : Recovery behavior completed, try again
    CLEARING --> [*] : All recovery attempts failed
  • PLANNING: Calls the global planner to generate a global path from the current position to the goal (low frequency; by default triggered only when a new goal or a local planning request arrives)
  • CONTROLLING: Calls the local planner to continuously generate cmd_vel at about 10–20 Hz and track the global path
  • CLEARING: Entered when global or local planning fails; runs the list of recovery behaviors in order, then returns to PLANNING to try again

Recovery behaviors

By default, move_base executes the recovery_behaviors in order:

Step Behavior Action Trigger reason
① conservative_reset Clear local costmap obstacles outside a 3 m radius Sensor noise mislabels distant free space
② rotate_recovery Rotate in place by 360° and rebuild the costmap from new sensor data The costmap is stale or the robot’s pose estimate is wrong
③ aggressive_reset Clear all local costmap obstacles outside the footprint No path can be found even after conservative clearing
④ rotate_recovery Rotate by 360° again Re-perceive the environment after aggressive clearing

After all of them fail, move_base publishes an aborted result and stops.

Typical topic interface:

Topic Direction Description
/move_base/goal Input Navigation goal pose (ActionLib)
/map Input Static map
/scan Input LiDAR data
/odom Input Odometry
/amcl_pose Input Localization result
/cmd_vel Output Velocity command (linear + angular velocity)
/move_base/result Output Navigation result (succeeded / aborted / preempted)

Update-rate difference between the two costmaps: The global costmap is updated slowly (only when the static layer changes), while the local costmap is updated frequently (in step with the sensor frame rate, about 5–20 Hz). This keeps obstacle avoidance real-time without wasting compute.

9.3 Nav2 (ROS 2) architecture

Nav2 is the navigation stack of ROS 2. Compared with move_base, its core change is replacing the hard-coded state machine with a behavior tree, which moves the navigation logic out of code and into a configurable XML file.

The five major servers

flowchart TB
    BTN["BT Navigator\n(reads the BT XML and drives the whole navigation process)"]

    BTN -->|ComputePathToPose| PS["Planner Server\nGlobal planning\nNavFn / Smac / Theta*"]
    BTN -->|FollowPath| CS["Controller Server\nLocal control\nDWB / TEB / MPPI"]
    BTN -->|Recovery Action| RS["Recovery Server\nRecovery behaviors\nclear_costmap / spin / wait / backup"]
    BTN -->|SmoothPath| SS["Smoother Server\nPath smoothing\nSimple / Savitzky-Golay"]

    PS --> GCM["global costmap"]
    CS --> LCM["local costmap"]
    CS -->|cmd_vel| Robot["Robot chassis"]
    RS -->|Spin in place / back up| Robot

Each server is an independent ROS 2 node that communicates through the Action interface. Plugins can be replaced independently without affecting other modules.

Lifecycle nodes

All Nav2 nodes implement the ROS 2 lifecycle interface, with the following state transitions:

Unconfigured → Inactive → Active → Deactivating → Inactive → Finalized
  • Unconfigured → Inactive (configure): Load parameters and initialize plugins, without receiving data
  • Inactive → Active (activate): Start subscribing to topics and publishing data, and enter normal operation
  • Active → Inactive (deactivate): Stop processing but keep resources (can be reactivated quickly)
  • The startup order is managed centrally by nav2_lifecycle_manager, avoiding race conditions caused by nodes initializing out of order.

Default BT navigation flow

Simplified logic of Nav2’s default BT (navigate_w_replanning_and_recovery.xml):

flowchart TD
    START([Navigation goal received]) --> PLAN["ComputePathToPose\nGlobal planning"]
    PLAN -->|Success| FOLLOW["FollowPath\nLocal control and tracking"]
    PLAN -->|Failed| R1["ClearEntireCostmap\nClear local costmap"]
    R1 --> PLAN

    FOLLOW -->|Goal reached| DONE([Navigation succeeded])
    FOLLOW -->|Stuck / timeout| R2["ClearEntireCostmap\nClear local costmap"]
    R2 --> PLAN2["Replan globally"]
    PLAN2 -->|Still failing| R3["Spin\nSpin in place 180°"]
    R3 --> PLAN3["Replan globally"]
    PLAN3 -->|Still failing| R4["Wait\nWait 5 s"]
    R4 --> PLAN4["Replan globally"]
    PLAN4 -->|Still failing| R5["Backup\nBack up 0.3 m"]
    R5 --> PLAN5["Final global planning attempt"]
    PLAN5 -->|Still failing| FAIL([Navigation failed / abort])

The recovery chain

Recovery behavior Parameters (default) Principle Suitable scenarios
ClearEntireCostmap Clearing range is configurable Sends a clear request to the costmap service to erase all marks on the obstacle layer, forcing the next sensor scan to rebuild them False sensor detections; a dynamic obstacle has left but was not cleared from the costmap
Spin target_yaw: 1.57 rad (adjustable) Rotates in place to the target angle at the maximum allowed angular speed, continuously updating the costmap to eliminate blind spots in the field of view The robot is in a local blind spot and the costmap is contaminated by old data
Wait duration: 5.0 s Stops publishing cmd_vel, waits for the specified time, then plans again Dynamic obstacles (pedestrians) temporarily block the way and will leave on their own
Backup backup_dist: 0.30 m, backup_speed: 0.025 m/s Publishes a negative linear velocity to reverse slowly by the specified distance (the area behind must be clear of obstacles) The front of the robot is trapped by an obstacle and it must make room before replanning

Design logic of the execution order:

  • ClearEntireCostmap first (the lightest: it only changes data and does not move the robot)
  • Then Spin (re-perceive the surroundings)
  • Then Wait (give way to dynamic obstacles)
  • Backup last (a physical escape, the riskiest, so it goes at the end)

After each recovery step, global planning is triggered again. As soon as one step succeeds, the recovery chain is exited and navigation continues. If all fail, the BT returns FAILURE and the Action Server publishes an aborted result.

Custom recovery behaviors: Implement the nav2_core::Recovery interface, register it in the recovery_server.plugins list of nav2_params.yaml, and then add the corresponding node to the BT XML.

When recovery triggers

The triggers of the recovery chain fall into the following four categories, each corresponding to a different root cause and remedy:

① The local map is temporarily infeasible

Sensor noise or momentary occlusion “blocks” the local costmap, so FollowPath cannot find a valid velocity (follow_path_error) and recovery is triggered directly:

Root cause Typical symptom Recommended remedy
Glass/mirror reflection The laser produces a false obstacle point cloud in front of the glass, and “ghost obstacles” appear on the local map First run ClearEntireCostmap to clear the false detections and rebuild the map, or filter out glass reflection points
A stream of people or carts momentarily blocks the way Pedestrians walk into the sensor’s field of view and part of the path is suddenly blocked Use Wait for the dynamic obstacle to leave; if this triggers often, increase controller_patience
Bursts of point cloud noise Noise points in a single frame mark cells that should be free Lower obstacle_range or enable point cloud filtering (min_obstacle_height filters ground reflections)

② Progress check failed (robot stuck)

The robot jitters slightly in place, but its cumulative displacement does not exceed the threshold (Nav2 default: displacement < 0.5 m within 10 s). The BT’s GoalReached or progress-check node judges the robot to be stuck and triggers recovery:

Root cause Typical symptom Recommended remedy
Narrow doorway / close to a wall The robot is near a wall, the inflation cost keeps it from moving forward, yet path planning still returns a path hugging the wall Increase inflation_radius so global planning keeps away from walls automatically, or increase min_obstacle_dist (TEB)
Local optimum in a corner The robot is boxed in by obstacles on three sides, costs are high in front, behind, left, and right, and it oscillates and jitters Use Backup to make room; if this happens often, check whether enable_homotopy_class_planning is turned on
Progress threshold too strict The robot is decelerating normally but is misjudged as stuck Relax progress_checker_distance (Nav2) or oscillation_distance (move_base) appropriately

③ TF / timing problems

The map→odom→base_link transform is temporarily unavailable (TF timeout) or the timestamps are inconsistent. The controller cannot obtain a consistent state estimate, and recovery is triggered after repeated planning failures:

Root cause Typical symptom Recommended remedy
AMCL localization lost The particle filter diverges, and the map→odom transform jumps or stops being published Check the laser data quality; increase max_particles; provide a better initial pose
Odometry delay The odom→base_link timestamp lags behind what the controller expects, and TF lookups time out Check the chassis driver’s publishing rate (recommended $\geq$ 50 Hz); check the transform_tolerance configuration
Node startup race SLAM / AMCL is not ready yet, but the navigation stack has already received a goal Use nav2_lifecycle_manager to ensure all dependent nodes are Active before accepting a goal

④ The global path is feasible but locally infeasible given the dynamics

The path from global planning (A* / Smac) is geometrically collision-free, but the local planner (DWA / MPPI), constrained by velocity, acceleration, and obstacles, cannot produce a safe, constraint-satisfying control sequence in the short term:

Root cause Typical symptom Recommended remedy
Global path too tight The global path cuts corners through the edge of the inflation zone, and all DWA sampled velocities hit the inflation layer Increase the global costmap’s inflation_radius to push the global path toward the center, or increase path_distance_bias
Corner too sharp Smac/Navfn produces a 90° sharp turn that minimum_turning_radius does not allow Increase minimum_turning_radius, or switch to Smac Hybrid A*, which supports kinematic constraints
Difficulty converging near the goal Obstacle penalties, pose constraints, and noise conflict near the goal, so the controller stops and starts, eventually times out, and enters recovery Increase goal_dist_tol (Nav2 Controller) to relax the arrival check; check whether the goal lies in the inflation zone
MPPI critic weight conflict ObstaclesCritic and GoalCritic have similar weights, causing oscillation near obstacles Reduce the weight of GoalCritic or increase that of ObstaclesCritic; enable TwirlingCritic to suppress rotation

9.4 Key points in parameter tuning

Tuning a navigation stack means coordinating its modules: an upstream parameter error can appear as a downstream failure. Tune in the order costmap → global planner → local planner → recovery behaviors.

Costmap

Parameter Scope Typical value Symptom if too small Symptom if too large
inflation_radius Global & local Robot radius + 0.1–0.3 m Path hugs walls, collision risk Narrow passages are blocked and no path exists
cost_scaling_factor Global & local 3.0–5.0 Gentle cost gradient that does not repel from obstacles The robot gets completely stuck inside the inflation zone
obstacle_range Local obstacle layer 2.5–4.0 m Nearby obstacles are ignored Distant false obstacles pollute the costmap
raytrace_range Local obstacle layer 3.0–5.0 m Costs are not cleared after a dynamic obstacle leaves The clearing range is too large and valid obstacles are cleared by mistake
update_frequency Local 5–10 Hz Costmap updates lag and obstacle avoidance is slow CPU usage too high
publish_frequency Local Same as update RViz visualization lags, making debugging difficult —

Core principle: inflation_radius $\geq$ the robot’s inscribed circle radius. Otherwise the LETHAL region does not cover the robot’s footprint, and the path planner will treat unreachable points as traversable.

Global planner

Navfn (A* / Dijkstra):

Parameter Typical value Description
use_astar true Enables A* (about 2–5 × faster than Dijkstra); recommended
allow_unknown false Whether paths may pass through unknown areas; set to true for open exploration scenes
default_tolerance 0.0–0.5 m Allowed deviation when the goal lies on an obstacle; too large makes the robot “arrive early”
planner_frequency 0.0 (on demand) or 1–2 Hz 0.0 = replan only when a new goal arrives or local planning fails, which saves CPU

Smac Planner (Nav2 Hybrid A*):

Parameter Typical value Description
minimum_turning_radius 0.2–0.5 m Minimum turning radius, matched to the robot’s kinematics
angle_quantization_bins 72 Angular discretization (72 = 5° resolution); larger values give smoother paths but use more memory
analytic_expansion_ratio 3.5 Frequency of analytic expansion; larger values reach the goal faster but give slightly worse path quality
max_iterations 1000000 Prevents endless planning in complex scenes; planning failure is reported once it is hit

Local planner

DWA (dwa_local_planner / Nav2 DWB):

Parameter Typical value Symptom if too small Symptom if too large
max_vel_x 0.3–1.0 m/s The robot is too slow Braking distance is insufficient, causing collisions
min_vel_x 0.0–0.1 m/s — The robot cannot stop
max_rot_vel 0.5–1.5 rad/s Slow steering and poor corner tracking Spins in place and becomes disoriented
acc_lim_x 1.0–2.5 m/s² Slow start and braking Abrupt acceleration and deceleration, wheel slip that corrupts odometry
sim_time 1.5–3.0 s Short-sighted, cannot go around obstacles Heavy computation and a reduced control rate
path_distance_bias 32.0 Does not follow the path and wanders freely So eager to follow the path that it cannot avoid dynamic obstacles
goal_distance_bias 20.0 Does not stop when nearly at the goal So eager to reach the goal that it ignores the path along the way
occdist_scale 0.02 Drives along walls Gets completely stuck near obstacles

TEB (teb_local_planner):

Parameter Typical value Description
max_vel_x / max_vel_theta Same as DWA Velocity limits
min_obstacle_dist 0.2–0.4 m Minimum distance between a path point and an obstacle; anything below it violates the constraint
inflation_dist 0.5–0.8 m Soft-constraint zone in which the cost rises sharply beyond the limit; set it to 1.2–1.5× inflation_radius
dt_ref 0.3–0.4 s Reference time step of the Timed Elastic Band; smaller values give denser, more accurate path points but slower computation
max_samples 500 Maximum number of g2o iterations; if too small, the optimization does not converge
enable_homotopy_class_planning true Enables multi-topology path search (go around an obstacle and pick the better of the two sides); strongly recommended in complex environments

Recovery behaviors

Parameter Package Typical value Description
conservative_reset_dist move_base 3.0 m Radius of the conservative clearing; too small clears too little, too large wipes a big area by mistake
clearing_rotation_allowed move_base true Allows rotation-based recovery; robots that can only move straight (AGVs) need false
oscillation_timeout move_base 10.0 s Timeout for judging that the robot is oscillating in place; CLEARING is entered once it triggers
oscillation_distance move_base 0.2 m If the displacement is below this value for longer than the timeout, the robot is judged to be oscillating
Parameter File Typical value Description
controller_frequency nav2_params.yaml 20 Hz Rate at which the local controller publishes cmd_vel
planner_patience — 5.0 s Enter recovery after global planning times out
controller_patience — 15.0 s Enter recovery after local control times out
recovery_behavior_enabled — true If disabled, the robot reports failure immediately when it gets stuck; suited to safety-first scenarios

Suggested tuning sequence

① Costmap: tune inflation_radius first and confirm there are no collisions
       ↓
② Global planning: confirm a path can be found from A to B
       ↓
③ Local planning: tune the speed limits first, then sim_time, and finally the bias weights
       ↓
④ Recovery behaviors: after recovery triggers, check whether the robot gets out of trouble, and tune the timeout / distance thresholds
       ↓
⑤ Full-system tuning: run the complete navigation in real or simulated scenes and watch for lag, oscillation, excessive detours, and similar problems

10. Classical vs. end-to-end navigation

Dimension Classical navigation stack (SLAM+A*+DWA) End-to-end deep learning (VLN/VLA)
Map dependence Requires a pre-built map (or real-time SLAM) No prior map required
Command form Coordinate goal (x, y, θ) Natural language (“Go to the kitchen”)
Generalization Weak (the map must be rebuilt when the environment changes) Strong (generalizes across scenarios)
Interpretability ✅ Strong (each module is traceable) ❌ Weak (black-box network)
Computing resources Runs on a CPU Requires a GPU
Dynamic scenes Handled by local planning (DWA/TEB) Learned implicitly (depends on training data)
Safety guarantees ✅ Collision checking is explicit and controllable ❌ Safety boundaries are hard to guarantee
Commonsense reasoning ❌ None (pure geometry) ✅ Supported (such as LLM reasoning)
Development and debugging Modules are debugged independently End-to-end training makes problems hard to localize
Long-term stability ✅ Highly deterministic behavior ❌ May fail in out-of-distribution scenarios
Typical representatives ROS Nav Stack, Nav2 VLN-BERT, NavGPT, VoxPoser

Practical suggestions:

  • Factories, warehouses, hospitals, and similar structured scenarios with high safety requirements → classical navigation stack
  • Home service, guided tours, and similar unstructured scenarios that require understanding natural language → learned navigation
  • Hybrid architectures are becoming a trend: use the classical navigation stack for low-level safety and precise control, and use a VLM/LLM for high-level semantic understanding and task decomposition

11. Open-source tools

Sensor drivers and processing

Tool Function Link
PCL (Point Cloud Library) Point cloud processing library (filtering, segmentation, registration, features) pcl.org
Open3D Point cloud and 3D data processing, Python-friendly open3d.org
OpenCV Image processing and feature extraction opencv.org

Localization

Tool Function ROS package
robot_localization EKF/UKF multi-sensor fusion robot_localization
AMCL Adaptive Monte Carlo localization (particle filter) amcl
NDT_CPU NDT scan matching ndt_cpu

SLAM

Tool Type Features
Cartographer 2D/3D LiDAR From Google, production-ready
GMapping 2D LiDAR Lightweight, suited to indoor use
LIO-SAM LiDAR + IMU High precision, GTSAM back-end
LOAM / LeGO-LOAM 3D LiDAR Classic, with a ground-robot-optimized version
ORB-SLAM3 Visual + IMU Supports multiple camera types, high accuracy
VINS-Mono/Fusion Visual + IMU Drones / mobile navigation
RTAB-Map RGB-D / stereo / LiDAR Multi-modal, out of the box in ROS, built-in memory management
hdl_graph_slam 3D LiDAR Graph optimization, supports NDT/ICP

Path planning

Tool Function
OMPL (Open Motion Planning Library) Library of sampling-based planning algorithms (RRT, PRM, etc.)
MoveIt! Robot arm motion planning (integrates OMPL)
NavFn / GlobalPlanner ROS global planning (Dijkstra/A*)
DWA Local Planner ROS dynamic window local planner
TEB Local Planner ROS timed elastic band local planner
Smac Planner Nav2’s built-in Hybrid A* planner

Simulation

Tool Function
Gazebo The default ROS physics simulator, with sensor simulation
Isaac Sim (NVIDIA) GPU-accelerated ray-traced simulation, synthetic data generation
CARLA Dedicated autonomous driving simulator with urban scenes
Webots Cross-platform open-source robot simulation

12. Summary and outlook

What this survey covers

This article systematically reviews the six core modules of the classical robot navigation algorithm stack:

  1. Perception: LiDAR, cameras, and IMUs each have their own strengths and weaknesses, and sensor fusion (EKF/UKF) is the key to better robustness
  2. Localization: EKF/UKF suit real-time pose tracking, particle filtering (AMCL) supports global localization, and NDT/ICP provide accurate scan matching
  3. Mapping / SLAM: LiDAR SLAM (Cartographer, LIO-SAM) is accurate and works around the clock; visual SLAM (ORB-SLAM3, VINS-Mono) is low-cost but sensitive to lighting; RTAB-Map spans multiple modalities and works out of the box; factor-graph back-end optimization is currently the mainstream
  4. Path planning: A/Hybrid A for global planning, DWA/TEB for local dynamic obstacle avoidance, with the costmap as the “common language” of both
  5. Path tracking: Pure Pursuit / Stanley are geometric methods that are simple to implement and suit low-speed scenarios
  6. Motion control: PID is the foundation, LQR provides optimal linear control, MPC can handle constraints and multi-step look-ahead explicitly, and fuzzy PID is more robust under nonlinear disturbances

Outlook

The classical navigation algorithm stack has matured over decades of development, but it still faces challenges:

  • Corridor degeneracy, dynamic scenes, and unstructured terrain: these demand greater SLAM robustness
  • Multi-robot collaborative SLAM: the trade-off between distributed mapping and communication efficiency
  • Lack of semantic understanding: classical algorithms lack semantic concepts such as “this is the kitchen”, which limits their use in everyday service scenarios

The current research trend is a hybrid architecture of “classical navigation + large models”: retain the safety and reliability of the classical navigation stack, and introduce LLMs/VLMs at the task planning and semantic understanding layers, to build next-generation robot systems that can understand human intent and act autonomously in complex real-world settings.

For vision-language navigation (VLN) and VLA foundation models, see the VLN Survey and VLA Survey (Chinese) series.


References: Thrun et al. “Probabilistic Robotics” (2005); LaValle “Planning Algorithms” (2006); ROS Navigation Wiki; Cartographer Paper (ICRA 2016); LIO-SAM (IROS 2020); ORB-SLAM3 (T-RO 2021); VINS-Mono (T-RO 2018); Hybrid A (IJRR 2010); TEB Local Planner (IROS 2013)*; http://www.autolabor.cn/usedoc/m1/navigationKit/development/slamintro; https://github.com/ShisatoYano/AutonomousVehicleControlBeginnersGuide;Embodied Intelligence Research Community;

Feedback
