Revised on 2026-09-29: This survey is organized around tasks, mechanisms, training, and evaluation. Key dataset scales and protocols link to primary sources, and cross-paper analysis states the limits of the evidence. Detailed readings are available in VLN Papers: Instruction Following and VLN Papers: Goal Navigation and Extensions (Chinese only). See Section 9.4 for coverage.

Reading guide

This survey addresses three questions: what tasks VLN solves, how models navigate, and how to establish that an improvement is effective. Follow the sequence of task settings → state and action interfaces → training signals → closed-loop evaluation. Consult the dataset catalog and simulator details once your experimental objective is clear.

Keep four distinctions in mind: reaching the destination and following the route instructions are different abilities; continuous environments and full robot dynamics are different levels of simulation; caching computational state and remembering spatial experience serve different purposes; and inference speed must be evaluated within the complete control loop.

1. Introduction

Vision-Language Navigation (VLN) studies how an agent uses natural language to localize itself, choose a route, and execute actions from a changing stream of egocentric observations. It is a partially observable, long-horizon problem: the agent must remember where it has been, track instruction progress, repeatedly align local observations with the overall goal, and recover from deviations, occlusions, or collisions.

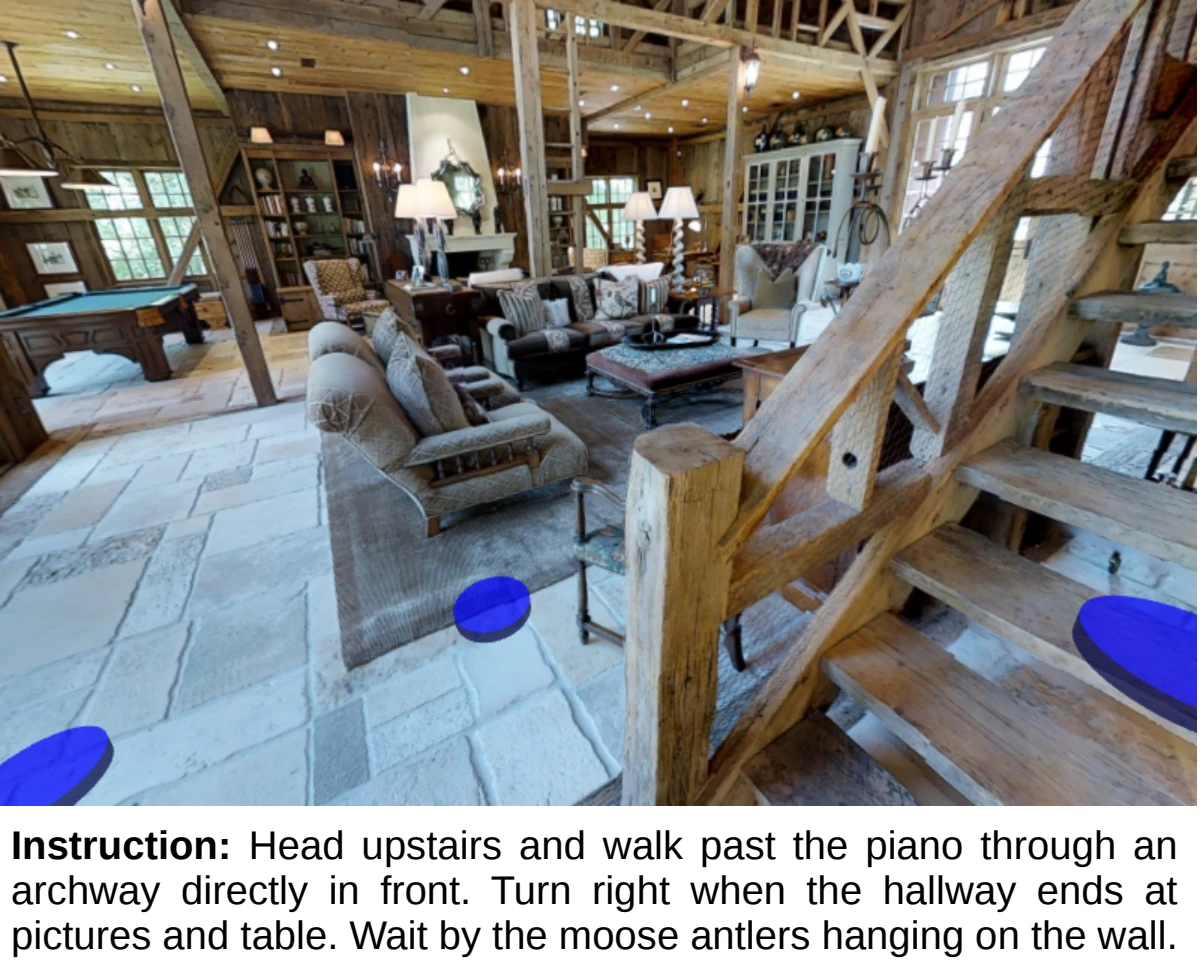

In 2018, R2R established the classic setting of natural-language instructions, scanned real indoor environments, and generalization to unseen scenes. Research has since expanded from discrete panoramic navigation to continuous control, multilingual instructions, goal search, dialogue, dynamic crowds, aerial navigation, and real robots. Since 2024, VLM/VLA foundation models have further shifted the focus toward organizing general vision-language knowledge, spatial memory, high-level reasoning, and low-level control into embodied systems that run in real time.

As of 2026, the evidence is better described as a convergence of end-to-end models and modular systems. Unified models provide scalable general capabilities, while structured maps, fast-slow hierarchies, skill invocation, and safety control constrain long-horizon behavior. This survey uses that perspective to revisit VLN’s conceptual boundaries, methodological development, benchmarks, and open problems.

2. VLN fundamentals

VLN requires sustained language grounding, localization, historical memory, action selection, and stopping decisions under partial observability. Visual input and instruction progress change with every movement, making navigation a closed-loop process rather than a single visual question-answering step.

2.1 Task definition: from language to an executable trajectory

Given a natural-language instruction $I$, an agent receives observation $o_t$ at time $t$ and predicts action $a_t$ using its historical state $h_t$:

flowchart LR
    I["Natural-language instruction"] --> G["Language-scene alignment"]
    O["Current visual observation"] --> G
    H["Trajectory history and spatial memory"] --> G
    G --> D["Next-step decision"]
    D --> S{"Should the agent stop?"}
    S -->|No| A["Action or local goal"]
    A --> E["Environment changes"]
    E --> O
    E --> H
    S -->|Yes| Z["End trajectory and evaluate success"]

    style I fill:#e7f5ff,stroke:#1971c2,stroke-width:2px
    style O fill:#d3f9d8,stroke:#2f9e44,stroke-width:2px
    style H fill:#fff4e6,stroke:#e67700,stroke-width:2px
    style G fill:#e5dbff,stroke:#5f3dc4,stroke-width:2px
    style D fill:#ffe3e3,stroke:#c92a2a,stroke-width:2px
    style A fill:#ffe8cc,stroke:#d9480f,stroke-width:2px
    style Z fill:#c5f6fa,stroke:#0c8599,stroke-width:2px

In discrete environments, the output is usually a neighboring viewpoint or STOP. In continuous environments, it may be a forward/turn action, a 2D waypoint, a trajectory segment, or low-level controls. These interfaces change perceptual coverage, control difficulty, and success conditions. Sharing R2R instructions alone does not make results directly comparable.

2.2 Five dimensions for understanding a VLN benchmark

2.2.1 Boundaries between VLN, ObjectNav, and general VLA

ObjectNav can supply semantic exploration modules for VLN, and VLA can provide a policy backbone. Their results nevertheless cannot automatically be included in standard VLN leaderboards. Fair comparison requires matching task inputs, sensors, action interfaces, data splits, and additional training data.

2.3 How a modern VLN system works

Early models often described VLN as a visual encoder, a language encoder, and an action classifier. A more useful systems view in 2026 is: perception supplies semantic and geometric evidence; the state layer maintains instruction progress and spatial memory; planning selects subgoals; execution converts them into safe actions; and actual observations continuously correct errors.

flowchart TB
    subgraph input["Inputs and observations"]
        I["Natural-language instruction"]
        V["Egocentric visual stream"]
        R["Depth, odometry, robot state"]
    end

    subgraph cognition["Semantic and spatial state"]
        P["Vision-language perception"]
        M["Topological graph, BEV, memory cache"]
        T["Instruction progress and failure state"]
    end

    subgraph decision["Planning and decisions"]
        Q["Subgoal decomposition and candidate generation"]
        W["Candidate evaluation and replanning"]
    end

    subgraph control["Actions and control"]
        L["Local waypoint or trajectory policy"]
        C["Controller and safety constraints"]
        A["Robot actions"]
    end

    I --> P
    V --> P
    R --> M
    P --> M
    P --> T
    M --> Q
    T --> Q
    Q --> W
    W --> L
    L --> C
    C --> A
    A -.->|New observation| V
    A -.->|Pose update| R
    C -.->|Collision or immobilization| T

    style P fill:#d3f9d8,stroke:#2f9e44,stroke-width:2px
    style M fill:#fff4e6,stroke:#e67700,stroke-width:2px
    style T fill:#fff4e6,stroke:#e67700,stroke-width:2px
    style Q fill:#e5dbff,stroke:#5f3dc4,stroke-width:2px
    style W fill:#ffe3e3,stroke:#c92a2a,stroke-width:2px
    style L fill:#ffe8cc,stroke:#d9480f,stroke-width:2px
    style A fill:#c5f6fa,stroke:#0c8599,stroke-width:2px

This diagram does not require every method to implement each module explicitly. End-to-end models can fold several boxes into a unified network; dual-system, map-based, and agent-based approaches expose some interfaces explicitly. Assess architectures through their information flow and training objectives, not just the names used in a paper.

2.4 Core challenges

2.5 From task-specific models to navigation foundation models

flowchart LR
    A["2018–2019 Sequence modeling"] --> B["2020–2021 Cross-modal pretraining"]
    B --> C["2021–2023 Graph planning and long histories"]
    C --> D["2023–2024 VLMs and video policies"]
    D --> E["2025 Fast-slow systems and data scaling"]
    E --> F["2026 Agents and unified navigation under exploration"]

    A1["Seq2Seq Speaker-Follower"] -.-> A
    B1["PREVALENT VLN-BERT HAMT"] -.-> B
    C1["DUET ETPNav ScaleVLN"] -.-> C
    D1["NaVid NavGPT-2"] -.-> D
    E1["StreamVLN DualVLN NavFoM OmniNav"] -.-> E
    F1["AgentVLN Qwen-RobotNav NavWAM"] -.-> F

    style A fill:#f8f9fa,stroke:#868e96,stroke-width:2px
    style B fill:#e7f5ff,stroke:#1971c2,stroke-width:2px
    style C fill:#fff4e6,stroke:#e67700,stroke-width:2px
    style D fill:#e5dbff,stroke:#5f3dc4,stroke-width:2px
    style E fill:#ffe8cc,stroke:#d9480f,stroke-width:2px
    style F fill:#c5f6fa,stroke:#0c8599,stroke-width:2px

This progression does not simply replace old models with new ones. Pretraining addresses semantic generalization; maps and memory address spatial consistency; fast-slow systems reconcile reasoning and control time scales; agents and world models seek better active perception, recovery, and prospective planning. These approaches are converging.

2.6 A map of research questions

2.7 Where recent research converges

This survey groups recent work into five compatible directions: unified policies, hierarchical control, spatial memory, agent orchestration, and future prediction. This is an analytical framework for comparing mechanisms, not five mutually exclusive categories or a claim that these ideas originated in 2026. Section 3 examines designs; Section 9.3 discusses the limits of the evidence.

3. Main research directions

A simple end-to-end versus modular classification is no longer sufficient. Three more informative axes are whether the policy is trained jointly, whether spatial state is maintained explicitly, and whether decision-making and control are separated by time scale. Through these axes, work from 2025–2026 falls into five compatible directions.

flowchart TB
    D["Navigation data at scale and vision-language backbones"]
    I["Instructions, vision, history, robot state"]

    subgraph routes["Five compatible directions"]
        E["Single-system end-to-end policies"]
        F["Fast-slow dual systems"]
        M["Maps and spatial memory"]
        A["Agents and self-correction"]
        W["World models and imagination-based planning"]
    end

    D --> E
    D --> F
    D --> A
    D --> W
    I --> E
    I --> F
    I --> M
    I --> A
    I --> W
    M -.-> E
    M -.-> F
    M -.-> A
    W -.-> F
    A -.-> F

    E --> X["Action interface"]
    F --> X
    M --> X
    A --> X
    W --> X
    X --> C["Local control and safety constraints"]
    C --> R["Real or simulated environment"]
    R -.->|Observation feedback| I

    style D fill:#e7f5ff,stroke:#1971c2,stroke-width:2px
    style E fill:#d3f9d8,stroke:#2f9e44,stroke-width:2px
    style F fill:#e5dbff,stroke:#5f3dc4,stroke-width:2px
    style M fill:#fff4e6,stroke:#e67700,stroke-width:2px
    style A fill:#ffe8cc,stroke:#d9480f,stroke-width:2px
    style W fill:#f3d9fa,stroke:#862e9c,stroke-width:2px
    style X fill:#ffe3e3,stroke:#c92a2a,stroke-width:2px
    style R fill:#c5f6fa,stroke:#0c8599,stroke-width:2px

3.1 What has changed: state, interfaces, and training data

Improvements in modern models often combine larger backbones, more trajectories, extra depth or map priors, and new system interfaces. When reading a paper, attribute architectural improvements separately from additional resources.

3.2 Single-system end-to-end navigation: continuous multimodal generation

Single-system methods place instructions, visual history, and action history into a unified model that directly predicts the next action, waypoint, or action chunk. They offer unified training objectives and straightforward data scaling; their bottlenecks are long-context costs, spatial drift, and difficult failure diagnosis.

This survey’s recommendation: consider this direction when data are sufficient, interfaces are relatively uniform, and joint training and simple deployment are priorities. Long-range backtracking, dynamic replanning, or strict safety requirements will usually still need external memory or control modules.

3.3 Fast-slow dual systems: separating semantic reasoning from frequent execution

Fast-slow systems divide work by time scale. The slow system interprets instructions, checks progress, and generates subgoals at low frequency; the fast system continuously converts those subgoals into waypoints or trajectories. The defining feature is a stable, verifiable interface between the layers, rather than simply having two models.

flowchart LR
    I["Instruction and long history"] --> S2["Slow system: semantic planning"]
    S2 --> G["Pixel goals, waypoints, subtasks"]
    O["Current vision and robot state"] --> S1["Fast system: local policy"]
    G --> S1
    S1 --> T["High-frequency trajectories"]
    T --> C["Controller and safety constraints"]
    C --> R["Robot execution"]
    R -.->|Unreachable goal or deviation| S2
    R -.->|New observation| O

    style S2 fill:#e5dbff,stroke:#5f3dc4,stroke-width:2px
    style G fill:#fff4e6,stroke:#e67700,stroke-width:2px
    style S1 fill:#d3f9d8,stroke:#2f9e44,stroke-width:2px
    style C fill:#ffe3e3,stroke:#c92a2a,stroke-width:2px
    style R fill:#c5f6fa,stroke:#0c8599,stroke-width:2px

3.4 Maps and spatial memory: making history a queryable environment state

A VLM may recognize a kitchen and a sofa without knowing their stable positions in 3D space. Map and memory methods organize past observations into topological graphs, BEV representations, 3D Gaussians, hierarchical scene graphs, or hybrid retrieval stores. These provide external state for long-range planning, backtracking, and failure diagnosis.

Computational caches and task memory should be distinguished. VLN-Cache reuses token computations across frames to reduce inference costs, addressing cache invalidation caused by viewpoint and task-stage changes. This differs from a retrieval store of successful and failed experiences. Evaluate the former by speedup and accuracy loss, and the latter by improvements in long-range decisions, backtracking, and recovery.

Maps are not inherently correct ground truth. A good system must specify how information is written, when it is updated, how conflicts are handled, and when stale information is forgotten.

3.5 General navigation agents: task orchestration and callable capabilities

The agent perspective asks who maintains task state, who selects the next capability, and how execution feedback changes subsequent decisions. It can coexist with fast-slow control. Producing a high-level reasoning trace alone does not establish tool orchestration or failure recovery.

3.5.1 Evaluate backbone and agent capabilities separately

Qwen-RobotNav is a navigation model that can be used in agent systems. Evaluation should distinguish the underlying navigation results from system-level results with orchestration. The former reflect the model and its input configuration; the latter also include task decomposition, mode switching, and runtime feedback. The full system’s gains cannot all be attributed to either the backbone or the planner.

3.5.2 An inspectable agent loop

This survey uses the general analytical loop: task state → select subtask and tools → execute → read results → update task state. Each transition should be inspectable in logs: was a tool failure recognized, did the strategy change, were ineffective actions repeated, and when did execution terminate? This describes system responsibilities rather than prescribing identical modules for every paper.

The following diagram is a general system-analysis aid. The crucial question is whether the upper layer updates task state after the navigation tool returns evidence, and whether failure actually changes its decisions.

sequenceDiagram
    participant Planner as Task planner
    participant Memory as State and memory
    participant Navigator as Navigation policy
    participant Env as Environment and actuators
    Planner->>Memory: Query completed subtasks and explored regions
    Memory-->>Planner: Return state and supporting observations
    Planner->>Navigator: Issue current subgoal and constraints
    Navigator->>Env: Execute action or local trajectory
    Env-->>Navigator: New observation, pose, or execution feedback
    Navigator-->>Planner: Subgoal progress and failure evidence
    alt Evidence supports subgoal completion
        Planner->>Memory: Record completion and key observations
    else Incomplete or execution blocked
        Planner->>Memory: Record attempt and failure conditions
        Planner->>Navigator: Adjust subgoal or retry strategy
    end

For example, “go through the corridor to the kitchen and find a cup” requires at least two checks: reaching the kitchen and confirming the cup. Detecting a cup does not establish the room condition; outputting “replan” does not establish successful recovery. Logs must connect actual observations, tool calls, and subsequent trajectories to locate failures in task decomposition, spatial memory, or execution.

3.5.3 Limits of recovery evidence

Compare a fixed execution workflow with adaptive orchestration under the same underlying skills, models, and budgets. Report task success, recovery rate, tool calls, latency, and human interventions separately. Higher success through more retries can be useful, but its cost must be reported to assess deployment suitability.

3.6 World models and world-action models: from predicting to using the future

World-model approaches aim to predict action consequences before execution. Some pass predictions to an external planner; others learn predictions and actions jointly, sometimes with additional goal-progress or value supervision. The diagram below summarizes functions; not every paper implements every module.

flowchart LR
    O["Current observation and history"] --> W["World model"]
    G["Language or image goal"] --> W
    W --> F["Candidate future states"]
    W --> V["Goal progress and value"]
    F --> P["Action or trajectory generation"]
    V --> P
    P --> R["Real-environment execution"]
    R -.->|Correction from real observations| W

    style W fill:#f3d9fa,stroke:#862e9c,stroke-width:2px
    style F fill:#e5dbff,stroke:#5f3dc4,stroke-width:2px
    style V fill:#fff4e6,stroke:#e67700,stroke-width:2px
    style P fill:#ffe8cc,stroke:#d9480f,stroke-width:2px
    style R fill:#c5f6fa,stroke:#0c8599,stroke-width:2px

Compelling visuals can be misleading in this direction. Meaningful evidence concerns improvements in closed-loop SR / SPL, collision rates, and real-robot control, plus whether new observations correct prediction errors promptly. Plausible-looking generated frames alone are insufficient.

Task boundary: NavWAM evaluates image-goal navigation. It informs the integration of prediction and control, but its results cannot directly enter a route-instruction VLN leaderboard. For visual navigation world models such as NWM, first check goal conditioning before discussing their relationship to language navigation.

3.7 Choosing among the five directions

These recommendations follow system responsibilities; they are not a performance ranking under matched conditions.

3.7.1 Four checks when reading a new paper

1. Matched protocols: are sensors, action spaces, splits, and success thresholds the same?
2. Matched resources: do gains come from architecture, larger backbones, more data, or extra depth/maps?
3. Closed-loop benefits: do reasoning, memory, or imagination modules improve navigation, beyond offline metrics?
4. Transparent deployment costs: are latency, GPU memory, control frequency, and real-robot tests reported?

The companion VLN Papers: Instruction Following and Leaderboards maintains separate tables for R2R-CE, RxR-CE, and discrete R2R / REVERIE, marking trained versus training-free methods and validation-subset evaluations. ObjectNav, HM3D-OVON, and image/point-goal results appear in the goal-navigation leaderboard in the extensions volume (Chinese only). Both support further checks of performance under matched settings.

3.8 Data and training paradigms: learning navigation and correction

The five directions above describe how systems organize information; training paradigms determine which feedback they learn from. These choices are independent. Single-system and fast-slow models can both use imitation learning, augmentation, or reinforcement learning. Reflection text does not imply that weights are updated during deployment.

Read this section alongside the training-data organization in StreamVLN and reflection-data construction in ReflectVLN. Refer to each paper for its actual stages, data mixture, and supervision.

An example connecting training and evaluation: the instruction is “pass the sofa, turn left, and stop before the second door.” Successful demonstrations teach ordering and actions, but may not cover missing the left turn. To test correction, introduce matched deviations at fixed positions and examine whether the policy detects inconsistent progress, returns to the correct junction, and resumes the task. Report extra distance, recovery rate, and final success. More successful demonstrations or longer reasoning traces alone do not establish this ability.

Organize ablations at three levels: fix data and backbone to compare modules; fix architecture to compare data; then compare complete systems under the same hardware and inference budget. State any uncontrolled differences explicitly rather than attributing every gain to one design.

3.9 Cross-paper comparison: different designs behind similar names

These comparisons follow mechanism descriptions in the original papers. The final column proposes experiments; it does not claim the papers conducted a common controlled comparison. Training data, sensors, and control interfaces differ, so the table does not provide an overall ranking.

Comparison 1: context management and control hierarchies address different bottlenecks. StreamVLN’s fast-slow context manages historical information and computation; DualVLN’s fast-slow system separates semantic decisions from local trajectory execution. Both involve time scales, but along different architectural axes. A system could combine streaming memory with hierarchical control; matched-budget ablations must establish whether that combination is worthwhile.

Comparison 2: maps organize history spatially while introducing new errors. DUET and ETPNav show global state informing decisions. Moving from a known discrete graph to online mapping requires estimating reachability and connectivity themselves. Comparisons with implicit memory must report access to mapping inputs and mapping costs, rather than attributing benefits from accurate depth or pose entirely to the representation.

Comparison 3: predicting the future still leaves a decision problem. NWM uses predictions for planning or candidate ranking, while AstraNav-World explores joint visual-action updates. In this survey’s assessment, both must show that prediction is more useful than additional candidate search or a stronger direct policy under fixed compute. Visual generation quality is supporting evidence only.

Comparison 4: large-scale data change the starting point of architectural comparisons. ScaleVLN demonstrates how expanded training environments and supervision affect existing models. Comparisons should separate mechanism gains under the same data from system gains under full resource configurations. The latter are valuable, but support a system-level conclusion rather than proving one module superior.

4. VLN task types

Similar task names do not make results comparable. Building on the five dimensions in Section 2.2—goal specification, observations, actions, environment model, and interaction protocol—this section classifies common tasks by reasoning complexity, interaction, and action/physical realism, with representative benchmarks. Embodiment deserves particular attention: virtual agents without dynamics, wheeled robots, quadrupeds, humanoids, and drones face very different collision, fall, immobilization, and 6-DoF control challenges. Results under the same task name should not be compared directly across embodiments.

4.1 Reasoning and decision complexity

1. Instruction-Following VLN

The agent navigates from a starting point to a destination using a supplied natural-language instruction. Open-ended goal search is not necessarily required, but landmark disambiguation, sequential reasoning, and long-term memory may still be necessary. The emphasis is on grounding language constraints along the route in the executed trajectory.

Representative datasets: Room-to-Room (R2R), Room-for-Room (R4R).

2. Reasoning-Oriented VLN

These tasks introduce target-object search or semantic constraints during navigation. The agent must reason about the correspondence between language instructions and environmental semantics to navigate and localize the target.

Representative datasets: REVERIE, SOON.

3. Long-Horizon VLN

These tasks emphasize long routes and composed instructions, requiring long-term planning, memory, and error recovery. They are important settings for evaluating sustained decision-making.

Representative datasets: LHPR-VLN and long-route settings in R4R / RxR.

4.2 Interaction

1. Non-interactive VLN

After receiving an initial instruction, the agent completes navigation independently without further interaction with the user. This is the most common VLN evaluation setting.

2. Interactive and dialog-based VLN

These tasks allow multiple interaction turns during navigation, using questions or feedback to refine the goal. They more closely resemble real human-robot collaboration.

Representative dataset: CVDN (distinguish supplied dialogue history from online questioning protocols).

4.3 Actions and physical realism

1. Discrete panoramic navigation

The agent moves on a predefined graph of traversable viewpoints, typically with 360° panoramic features at each node. This deemphasizes local control and collisions, making it suitable for language-landmark alignment, global planning, and history modeling.

Representative benchmarks: R2R, R4R, RxR, REVERIE.

2. Continuous-environment navigation

The agent moves over a navigable surface through forward/turn actions or local waypoints, rather than teleporting along a manually constructed graph. Traversability and stopping control matter; field-of-view restrictions, localization noise, and dynamics depend on the specific configuration.

Representative benchmarks: R2R-CE, RxR-CE; other transferred settings must identify their implementation.

3. Physically embodied navigation

Robot dynamics, morphology, and control frequency impose constraints, including falls, slip, immobilization, and different camera mount positions. These tasks are closer to deployment but harder to align with classic VLN results.

Representative benchmarks: VLN-PE, VLNVerse, and real-robot evaluations.

Comparison principle: report R2R, R2R-CE, RxR-CE, ObjectNav, and real-robot tests in separate tables. Even when all use SR / SPL, their inputs, action spaces, and success conditions may differ.

5. VLN applications

Applications determine sensors, action spaces, map priors, and safety constraints, and therefore the appropriate datasets and simulators. The table compares three settings before examining each in detail.

5.1 Indoor environments

Indoor VLN focuses on homes, offices, and public buildings. Multiple rooms and extensive furniture provide the landmarks in instructions such as “go through the kitchen and stop beside the sofa,” placing strong demands on room-level topology, object-level grounding, and precise stopping. Indoor data and benchmarks are also the most mature: most datasets in Section 6 use real scans such as Matterport3D and HM3D, or synthetic scenes such as ProcTHOR and GRScenes.

Applications: domestic service robots, indoor logistics, hospital and shopping-center guidance, and quadruped / humanoid inspection.

5.2 Outdoor environments

Outdoor VLN faces larger spatial scales and greater uncertainty. Similar-looking landmarks may be hundreds of meters apart; lighting, weather, and traffic change continuously; GPS and map availability vary. Touchdown (Chen et al., CVPR 2019) studies language navigation and spatial localization in street scenes. StreetLearn provides a street-view learning environment and should not itself be equated with a route-instruction dataset. map2seq addresses map-assisted navigation instructions. This branch is increasingly connected to language-conditioned autonomous-driving planning and semantic navigation for outdoor service robots.

Applications: campus and urban delivery, guidance for visually impaired people and mobility assistance, and language-conditioned autonomous-driving planning.

5.3 Aerial environments

Aerial VLN targets flying platforms such as multirotor drones. Compared with ground navigation, it requires controlling both horizontal position and altitude; viewpoints change continuously between downward and oblique views, and landmark appearance varies greatly with height. Flight constraints—no-fly zones, minimum altitude, and obstacle avoidance—must be addressed explicitly at the action layer. AerialVLN, CityNav, and OpenFly in Section 6.6 represent simulated cities, real aerial imagery, and large-scale multiengine data, respectively.

Applications: drone inspection and mapping, aerial search and rescue, urban low-altitude logistics, and language-directed aerial photography.

6. Major VLN datasets

Start benchmark selection with the capability to be tested, then consider scale. Scene assets, task data, and training augmentation data are different resources: Matterport3D supplies environments, R2R supplies instructions and paths, and ScaleVLN supplies synthetic training examples. A shared environment does not imply a shared action interface or evaluation protocol.

6.1 Dataset comparison

The following table includes only scales with a clear counting unit. Years indicate first public release; conference years are noted separately. Paths, instructions, dialogues, and episodes are not interchangeable, and continuous-environment conversions cannot simply inherit the discrete version’s counts.

6.2 Instruction-oriented and continuous-navigation datasets

6.2.1 R2R (Room-to-Room)

R2R pairs natural language with reference paths between start and goal viewpoints on navigation graphs in scanned Matterport3D environments. It supports landmark alignment and cross-scene generalization. Traversable graph edges already simplify local obstacle avoidance, so R2R success does not establish robot control ability. See the original paper and official simulator.

Understanding a sample: the instruction describes landmarks and turns; the reference path is a sequence of discrete viewpoints. Starting from a viewpoint and heading, the agent selects reachable neighbors and eventually stops. A path is not a frame-by-frame video, and different instructions for one path are not independent examples from different buildings.

Value and limitations: R2R is a common starting point for language alignment and planning. When interpreting Val-Unseen results, check whether training visual features or additional data involve test environments. Real deployment additionally requires validation under narrow fields of view, localization errors, and low-level execution.

6.2.2 R4R (Room-for-Room)

R4R concatenates R2R paths and instructions, exposing the difference between following the described route and reaching the endpoint directly. It supports research on route constraints and long-path following; use CLS / nDTW alongside SR. The original paper also introduced CLS.

Why longer reference routes matter: consider “pass through the dining room, then loop back to the living room,” where the endpoint is close to the start. Going straight to the living room may achieve endpoint success without following intermediate constraints. R4R makes this tension explicit: the shortest arrival path need not be the language-specified route.

Record endpoint success, coverage, and visit order together. Longer routes amplify accumulated errors, but a larger history window alone does not establish task-state reasoning. Inspect whether the model tracks completed route segments and landmarks still to be visited.

6.2.3 RxR (Room-across-Room)

RxR provides multilingual instructions and spatiotemporal annotations associated with observations. Specify language subsets, Guide / Follower usage, and test splits. Evaluation on English alone does not demonstrate multilingual ability. See the official data and field documentation.

Annotation process: a Guide describes a route, and a Follower follows the description. Their trajectories can differ, supporting both reference-path imitation and analysis of ambiguity and human following errors. Word timings and camera poses provide finer vision-language alignment cues. See the official annotation documentation.

6.2.4 VLN-CE (continuous-environment navigation)

VLN-CE moves instruction navigation into Habitat’s navigable space, removing movement constraints imposed by graph edges. Environment positions are continuous; policy actions may still form a finite set, such as forward and turn. Execution becomes harder, but legged dynamics are not automatically included. See the original paper.

The original baseline repository recommends R2R_VLNCE_v1-3 and pins its Habitat version. Different sensors, waypoint controllers, or modified simulators require protocol checks. An identical dataset name alone does not establish comparability. See the official implementation and version guidance.

From selecting the right node to reaching the location: a valid neighbor in a discrete graph generally permits direct transfer. In continuous space, even a correctly selected doorway can lead to deviation, immobilization, or overshooting the stopping point. Record waypoint predictors, controllers, and navigation policies separately rather than attributing whole-system gains to the language model.

{
  "episode_id": 1,
  "trajectory_id": 4,
  "scene_id": "mp3d/SCENE/SCENE.glb",
  "instruction": {"instruction_text": "Walk forward to the doorway."},
  "start_position": [0.0, 0.0, 0.0],
  "start_rotation": [0.0, 0.0, 0.0, 1.0],
  "goals": [{"position": [0.0, 0.0, -4.0], "radius": 3.0}],
  "reference_path": [[0.0, 0.0, 0.0], [0.0, 0.0, -4.0]]
}

6.2.5 RxR-CE (multilingual continuous-environment navigation)

RxR’s continuous-environment adaptation is released with VLN-CE. The RxR-Habitat challenge explicitly constrains RGB-D observations, action step lengths, and turn angles. Panoramic-observation results cannot directly be treated as results under that challenge protocol. See the official required task configurations.

Separate multilingual effects from execution errors: a language-specific drop can reflect semantic understanding or action errors on longer routes. Group results by language, route length, and endpoint error, using the same cameras and controllers. If machine translation or extra text features are used, clarify whether the model understands the original language directly or navigates through a translation system.

6.2.6 VLN-PE (physically embodied navigation)

VLN-PE supports humanoid, quadruped, and wheeled robots, studying embodiment gaps caused by camera viewpoints, lighting, collisions, and falls. Physical realism here means simulation that better reflects robot constraints, not that all data come from real robots. Report results by morphology and controller. See paper v2.

New variables introduced by embodiment: the same semantic subgoal may not be executable by every robot. Camera height changes visible landmarks, body dimensions change doorway clearance, and motion controllers affect tracking and stability. Distinguish understanding the destination but failing to reach it from misunderstanding the goal.

Retain three log layers: high-level goals and waypoints, actual low-level trajectories, and collisions or abnormal poses. Cross-robot comparisons should report controllers and failure categories alongside SR. Simultaneously changing camera, controller, and policy does not isolate morphological generalization.

6.2.7 ScaleVLN (large-scale navigation pretraining augmentation)

ScaleVLN expands training coverage rather than introducing a new task to rank alongside R2R. It shows that more environments and synthetic supervision can substantially change existing models’ performance. Architecture comparisons must disclose such additional data. See the original paper.

What data scaling changes: more scenes broaden visual and geometric coverage; more synthetic instructions add supervised examples. Discuss these effects separately. Synthetic language may repeat templates, and path sampling may favor easy regions, so more samples do not automatically mean richer tasks.

With the same model, compare original data, additional scenes, additional instructions, and full augmentation. Also report training steps or compute budgets to distinguish coverage, language variation, and extra optimization as sources of improvement.

6.2.8 InternData-N1 (InternVLA-N1 navigation pretraining data)

InternData-N1 unifies VLN-CE, VLN-PE, and VLN-N1 subsets in LeRobot format. A shared storage format helps training but does not erase differences in observations, actions, or success criteria. Record subsets, filtering, and sampling ratios. See the official data card.

Shared storage still requires aligned semantics: videos, states, and actions may share storage interfaces while differing in action scales, camera settings, and robot states. Specify action normalization, task conditioning, and how sampling prevents large subsets from overwhelming smaller ones.

vln_ce/
├── raw_data/                 # Original task annotations
└── traj_data/
    └── <scene-dataset>/<scene>/
        ├── data/chunk-000/   # Episode Parquet data
        ├── meta/            # Metadata: info, tasks, episodes, etc.
        └── videos/          # Observations by camera and modality

6.2.9 VLNVerse (unified physics-based multitask navigation benchmark)

VLNVerse brings multiple tasks, embodied simulation, and evaluation into a shared framework. It supports cross-task evaluation, but a common platform does not justify collapsing all tasks into one SR. Report each task and embodiment setting rather than only an overall mean. See the original paper.

Reading a unified benchmark: common sensors and actuators may support tasks whose success means arrival, target confirmation, or multistage completion. Report a task × embodiment result matrix, indicating shared weights versus task-specific fine-tuning. An aggregate mean alone can conceal failure on particular tasks.

6.3 Goal-oriented and long-horizon planning datasets

6.3.1 REVERIE (Remote Embodied Visual Referring Expression in Real Indoor Environments)

REVERIE requires navigation from a high-level description and identification of a target object. Reaching a viewpoint where the target is visible differs from correct object grounding. Separate navigation metrics from remote-grounding metrics. See the original paper.

The original paper reports 10,567 panoramic viewpoints in 90 buildings, 4,140 target objects, and 21,702 crowdsourced instructions averaging 18 words. Instructions generally describe the target region and object, rather than the route step by step. Navigation success requires stopping at a viewpoint that can observe the target (objects within 3 m are considered visible). The original appendix defines grounding success by predicted-box / ground-truth-box IoU ≥ 0.5. Later work commonly selects from supplied object candidates and reports RGS (Remote Grounding Success, the proportion selecting the correct target) and path-length-weighted RGSPL. Check both the grounding criterion and candidate source when comparing results.

Two stages, two error types: for “go to the upstairs bedroom and find the lamp by the window,” the agent must first reach a location where the target can be observed, then select the described instance. Reaching the right room but selecting the wrong lamp is a grounding error; never reaching an observable region calls for search and navigation diagnosis.

Object detectors, candidate boxes, and object features are therefore part of the experimental setting. If one policy receives better object candidates, differences in final grounding success cannot all be attributed to planning.

6.3.2 REVERIE-CE (continuous-action navigation with object grounding)

REVERIE-CE refers to a family of continuous-environment adaptations. This survey has not identified a unified official protocol with fixed versions and scale maintained by the original authors, comparable to VLN-CE, so it gives no release year or sample count. Cite the specific paper, conversion scripts, filtering, and object-success criterion; do not reuse discrete REVERIE counts.

Continuous conversion requires at least mapping discrete targets into continuous scenes, specifying locations from which targets can be observed, and defining how object predictions are submitted after stopping. Report how many original samples were filtered and why. An unchecked conversion cannot be assumed to preserve difficulty or target distributions.

6.3.3 SOON (Scenario Oriented Object Navigation)

SOON uses descriptions of the target and surrounding scene to search and localize from different starting points. It shifts from route following toward scene-conditioned exploration, supporting semantic search and graph planning. Do not conflate descriptions, targets, and start-point combinations in its FAO data into one sample count. See the original paper.

Difference from route following: route instructions explain how to get there; scene descriptions emphasize where and what to search for. Without stepwise route supervision, the system must choose search regions, decide when to abandon a hypothesis, and update its direction from new observations.

Separately count failure to find the target region, failure to recognize a visible target, and failure to stop after recognition. This distinguishes the value of semantic priors and reveals how exploration budgets are spent.

6.3.4 LHPR-VLN (Long-Horizon Planning and Reasoning in VLN)

LHPR-VLN focuses on planning consistency across sequential subtasks. Alongside overall completion, ISR, CSR, and CGT analyze subtask success and the effects of preceding failures. Unlike R4R, multistage execution requires task-state tracking; total path length alone cannot characterize difficulty. See paper v3.

Long-horizon failures propagate: stopping at the wrong location changes the next stage’s starting state. Resetting and testing each subtask independently hides this accumulation. Retain both independent-subtask and continuous-execution evaluations, recording the first failed stage, completed progress, and recovery cost.

Validate memory around task state: does the model remember completed goals, revisit ruled-out regions, or incorrectly mark failed subtasks complete? Such evidence says more about long-horizon ability than a longer context window alone.

6.4 Dialog-based and socially aware navigation datasets

6.4.1 CVDN (Cooperative Vision-and-Dialog Navigation)

CVDN collects human Navigator–Oracle dialogues. Navigation from Dialog History continues navigation using an existing dialogue history. Using dialogue history does not imply permission to ask a human for help online; active-questioning evaluation needs a separately specified interaction protocol. See the original paper.

History understanding and active interaction are different problems: a historical reply such as “turn left at that doorway” must be aligned with the traveled path. Asking in real time “the red door or the white door?” additionally requires deciding when to ask, how to use the answer, and how to account for interaction costs. These settings provide different information and need separate results.

For active help-seeking, report question counts, useful-answer rates, and navigation improvements after each interaction. For NDH alone, analyze history length, reference resolution, and completion of the next route segment.

6.4.2 TEACh (Task-driven Embodied Agents that Chat)

TEACh includes dialogue, navigation, and object interaction, making it a broader embodied-task dataset. Derived tasks such as EDH have distinct inputs and completion conditions and should be discussed separately from pure navigation. Paper v3 also explains revised test-set evaluation targets.

Arrival alone is insufficient: “put a clean cup on the table” requires object localization, state assessment, and post-manipulation conditions. Reaching a cup does not complete the task.

EDH (Execution from Dialog History) continues execution from a supplied interaction history, whereas TfD (Trajectory from Dialog) infers and executes a task trajectory from dialogue. Their initial information differs. Identify the evaluation task before comparing task success and goal-condition completion. See the TEACh paper.

6.4.3 HA-VLN 2.0 (Human-Aware Vision-Language Navigation)

HA-VLN 2.0 includes dynamic interactions with multiple people and personal-space constraints. Evaluate arrival and social compliance together, fixing crowd behavior and run seeds. One successful video does not establish reliability across repeated encounters. See paper v5.

Success in dynamic environments is conditional: waiting, detouring, and passing close to people may reach the same goal with different social consequences. SPL alone can penalize reasonable detours; interpret it alongside collisions, personal-space violations, and time limits, with waiting costs assessed through timing measures.

Use fixed or paired seeds and repeat tests across crowd-interaction scenarios. Report social violations in successful episodes, and whether failures end through timeout, collision, or getting lost. Do not show only the smoothest trajectory.

6.5 Demand-oriented and commonsense-reasoning datasets

6.5.1 DDN (Demand-driven Navigation)

DDN infers objects that satisfy user demands, such as mapping “I need to clean” to a suitable functional target. The original work studies this in AI2-THOR / ProcTHOR as demand-conditioned goal navigation; it does not require stepwise route following. See the original paper.

A demand may admit multiple targets: several objects may satisfy the same demand, but acceptable answers depend on task annotations and the scene. “I want to sit down and rest” might suggest a chair or sofa; language commonsense alone cannot make every candidate count as success.

Diagnose demand inference and spatial search separately: is the proposed goal acceptable, available in the environment, and subsequently found with a correct stop? If demands are first rewritten as fixed object categories, disclose the additional model or supervision used.

6.6 Aerial and specialized datasets

6.6.1 AerialVLN (Vision-and-Language Navigation for UAVs)

AerialVLN uses UE4 / AirSim urban scenes, adding altitude and spatial-relation reasoning. Table 1 in the original paper lists the standard task as 4 DoF; it should not be described broadly as full 6-DoF flight control. See the original paper.

Altitude changes language references: “go around the rooftop and then descend” combines horizontal paths and vertical relations; landmark scales in downward views also change with height. Specify controllable degrees of freedom, camera orientation, and flight step sizes, and check dependence on building appearances specific to training cities.

Record horizontal error, altitude error, and stopping position separately. Proximity in a 2D map projection alone cannot establish 3D navigation success.

6.6.2 CityNav (Language-Goal Aerial Navigation Dataset with Geographic Information)

CityNav uses real urban geographic environments and language-paired human demonstrations to study aerial navigation with visual and geographic information. Real-city data do not automatically mean autonomous flights by real drones. State whether geographic information and maps are available. See paper v3.

Maps are additional input: geographic coordinates, maps, and prior locations may substantially change search. Compare vision-language inputs, added geographic information, and added maps, and report city splits. Cross-city evaluation better tests transfer of spatial semantics, but asset and data overlap must still be controlled.

6.6.3 OpenFly (A Comprehensive Platform for Aerial Vision-Language Navigation)

OpenFly combines multiple rendering engines, automated data-collection tools, and an aerial-navigation benchmark. Its contribution includes data production and environment coverage. Cross-engine generalization still requires separation of training and testing engines, scenes, and assets. See paper v7.

Cross-engine transfer changes more than appearance: rendering, coordinates, depth definitions, and action execution can differ. Align these interfaces first, then distinguish same-scene/different-renderer, same-engine/different-scene, and cross-engine/cross-scene experiments. After generating many trajectories, sample-check that language describes actually visible landmarks and the executed routes.

6.7 Data conventions to record for reproduction

Record original versions, scene lists, episode and unique-instruction counts, language subsets, Guide/Follower types, and filtering rules. State whether extra training data touch test buildings or derived assets. Unknown overlap in private pretraining data should be marked “not disclosed,” not assumed absent.

Dataset fields and directory details are expandable under their respective benchmarks. The following cross-dataset experiment-record template supplements them. Keep official formats, this survey’s illustrations, and actual runtime configurations separate. Use download and installation commands from the official repository for the selected version.

dataset:
  name: null
  revision: null
  split: null
  episode_count_after_filtering: null
  scene_list_hash: null
  languages: []
  extra_training_sources: []
environment:
  simulator_commit: null
  scene_assets_version: null
  robot_and_controller: null
  camera_modalities_and_fov: null
  action_space_and_units: null
  collision_and_sliding: null
evaluation:
  evaluator_commit: null
  distance_definition: null
  success_threshold_and_stop_rule: null
  max_steps_or_time: null
  trajectory_sampling: null
  seeds: []

7. Major VLN simulators

Simulators determine how observations are generated, actions executed, and success judged. Compare rendering, collisions, dynamics, task implementations, and assets separately. Photorealism or a rich physics engine alone cannot establish that a VLN protocol better reflects real deployment.

7.1 Matterport3D Simulator

Built around scanned panoramas and navigation graphs, Matterport3D Simulator supports reproduction of discrete tasks such as R2R, R4R, and RxR. Legal graph connections supply traversability constraints and therefore cannot establish real-robot obstacle avoidance. Follow the official repository and relevant data licenses for installation and image assets.

Mechanism and strengths: policies observe and move on a graph of scanned viewpoints, making visual inputs reproducible and classic benchmarks reusable. Precomputed visual features let research focus on language alignment, history modeling, and graph search.

Limitations and selection: transfers between viewpoints hide control along intermediate segments. High-level planning success does not establish passage through narrow doors or collision handling. Use it for a discrete-planning baseline; validate action-error questions separately in continuous environments.

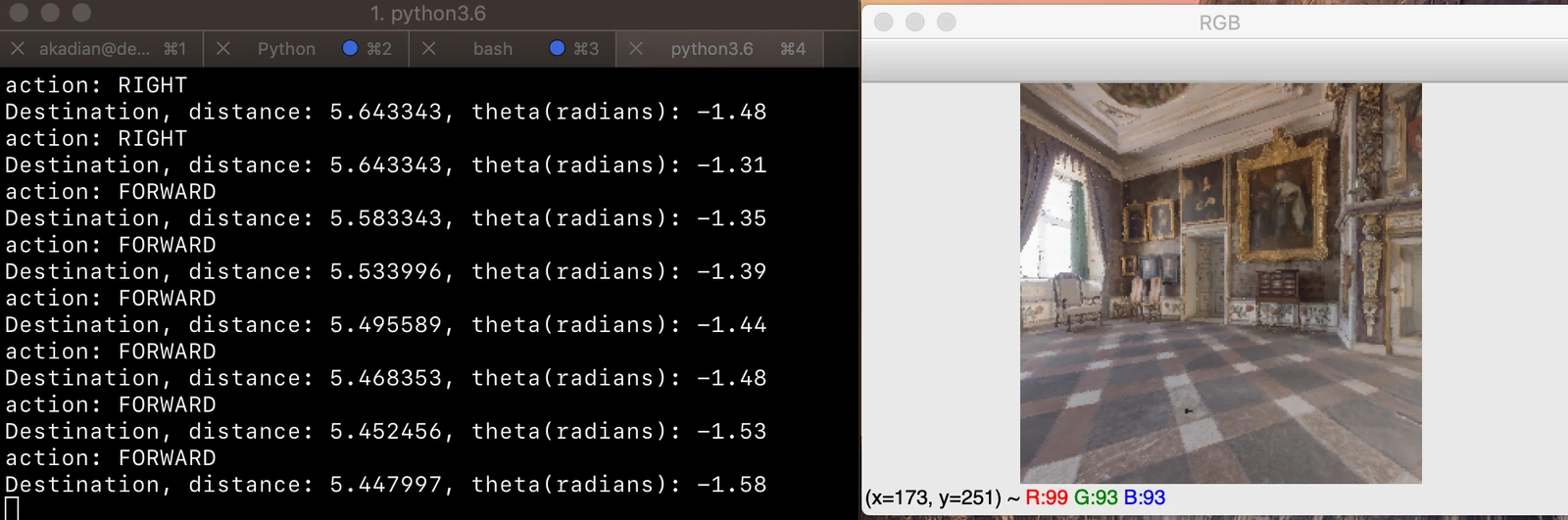

7.2 Habitat

Habitat-Sim provides the simulation backend; Habitat-Lab organizes tasks, sensors, actions, and evaluation. Classic VLN-CE uses their navigation configuration. Interaction, physics, and human-robot coexistence features added later are not automatically present in older benchmarks. See Habitat-Sim and Habitat-Lab.

Match the paper’s specified version first. Engine upgrades can change collision and sliding behavior. Establish baseline results before reporting experiments with an upgraded engine as a separate configuration.

Mechanism and strengths: sensor observations, navigable space, and task evaluators form an experimental loop for RGB-D inputs, local waypoints, and continuous instruction execution. Pin assets, navigation meshes, and task code together.

Limitations and selection: a default navigation agent is not a robot with full dynamics. Camera height, field of view, turn angles, step length, and sliding affect results. Match the paper configuration before attributing differences to the model. Treat added physics or interaction as new experimental conditions.

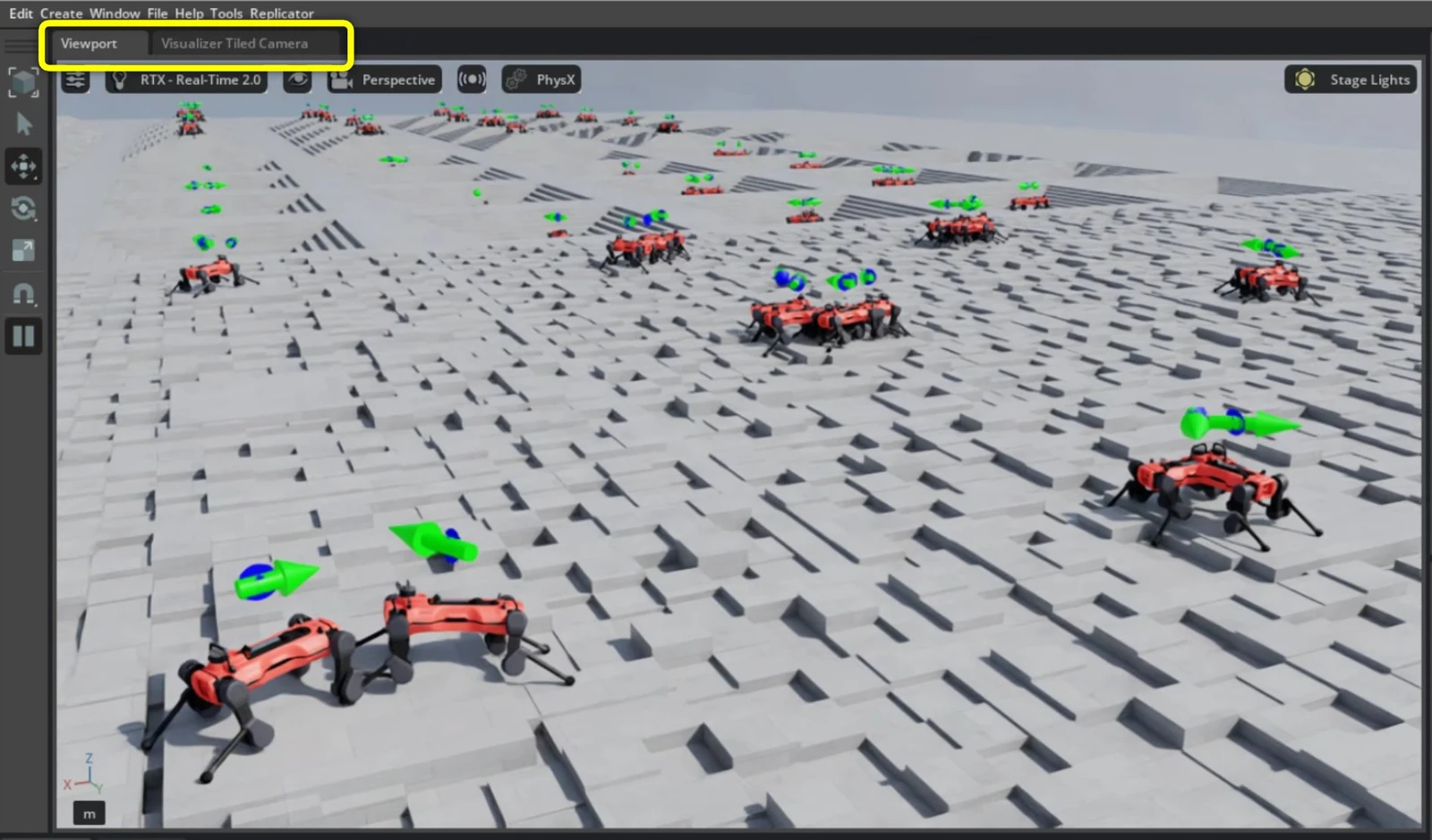

7.3 Isaac Sim / Isaac Lab

Isaac Sim provides robot simulation and sensors; Isaac Lab adds robot-learning workflows. They suit explicit study of morphology, contact, and control, but require VLN data and tasks to be implemented or integrated separately. Official Windows / Linux installation paths are available; Python, drivers, and Isaac Sim versions must be compatible. See the official installation documentation.

Mechanism and strengths: robot bodies, joints, contacts, sensors, and controllers jointly determine execution, supporting study of how navigation goals meet real motion constraints. High-level navigation and low-level motion control can be analyzed separately.

Limitations and selection: asset import, collision geometry, inertia, and control interfaces affect results; high-quality rendering adds resource costs. Verify an observation-action loop for one robot in one scene before increasing parallel environments. Physics-step throughput is not multimodal-system throughput.

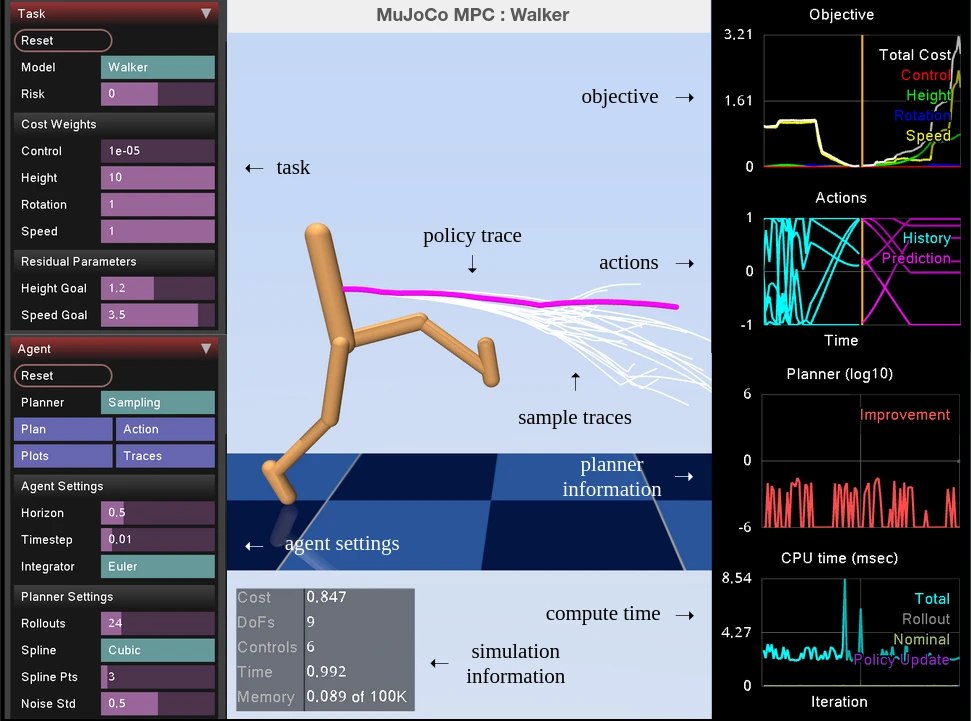

7.4 MuJoCo / MJX

MuJoCo supports contact dynamics and control research; MJX provides batched physics computation on accelerators. They can host a VLN system’s motion-execution layer, but do not automatically supply language instructions, indoor assets, or navigation evaluators. Measure physics throughput separately from training throughput including image rendering and VLM inference. See the MuJoCo / MJX documentation.

Mechanism and strengths: explicit motion-state and contact models support local-controller, trajectory-tracking, and stability evaluation. In hierarchical VLN, high-level goals or velocities can be passed to the motion layer, with actual arrival errors fed back upward.

Limitations and selection: a full VLN experiment additionally needs assets, language tasks, camera observations, and evaluators. MJX batching gains depend on models and hardware. Measure physics, rendering, and policy-inference times separately.

7.5 AI2-THOR

AI2-THOR emphasizes interactive objects and changing environment states, supporting combined navigation and manipulation. Its official README lists macOS / Ubuntu requirements. Unity’s cross-platform support does not establish native Windows support for the Python simulation stack. Follow the target version’s build and rendering-backend requirements. See the official repository.

Mechanism and strengths: interactive objects and states connect reaching an object with satisfying manipulation conditions in one environment. This supports study of navigation, object search, and task execution together.

Limitations and selection: visibility, reachability, and interactability are different states. Proximity may not satisfy interaction prerequisites. For TEACh and similar tasks, record navigation and manipulation failures, and fix object states and task initialization. Endpoint distance alone does not evaluate the whole task.

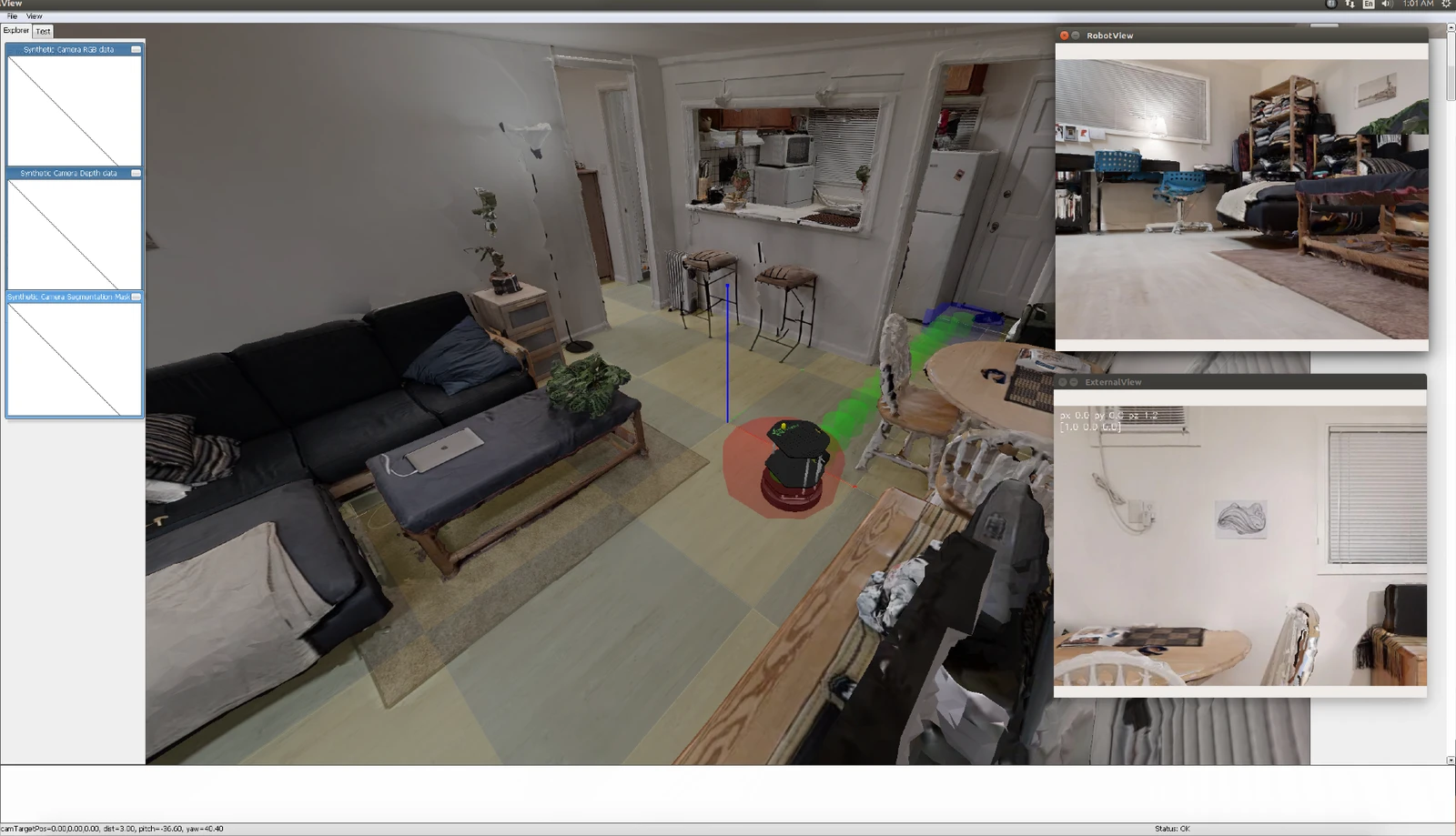

7.6 Gibson / iGibson

Gibson, iGibson, and OmniGibson are related but distinct: using scanned scene assets differs from using an interactive physics platform. For household tasks and object states, establish the exact platform, asset version, and behavior definitions. OmniGibson’s entry point is now the BEHAVIOR-1K project; see the separate iGibson repository.

Mechanism and strengths: interactive environments incorporate furniture, objects, and robot contact, supporting combined navigation and household manipulation. Available capabilities depend on whether Gibson, iGibson, or OmniGibson is used.

Limitations and selection: assets, dependencies, and task definitions are not interchangeable across these projects. Establish the paper’s platform, then verify object states and success conditions. Scene transfers require renewed checks of collision and interaction semantics.

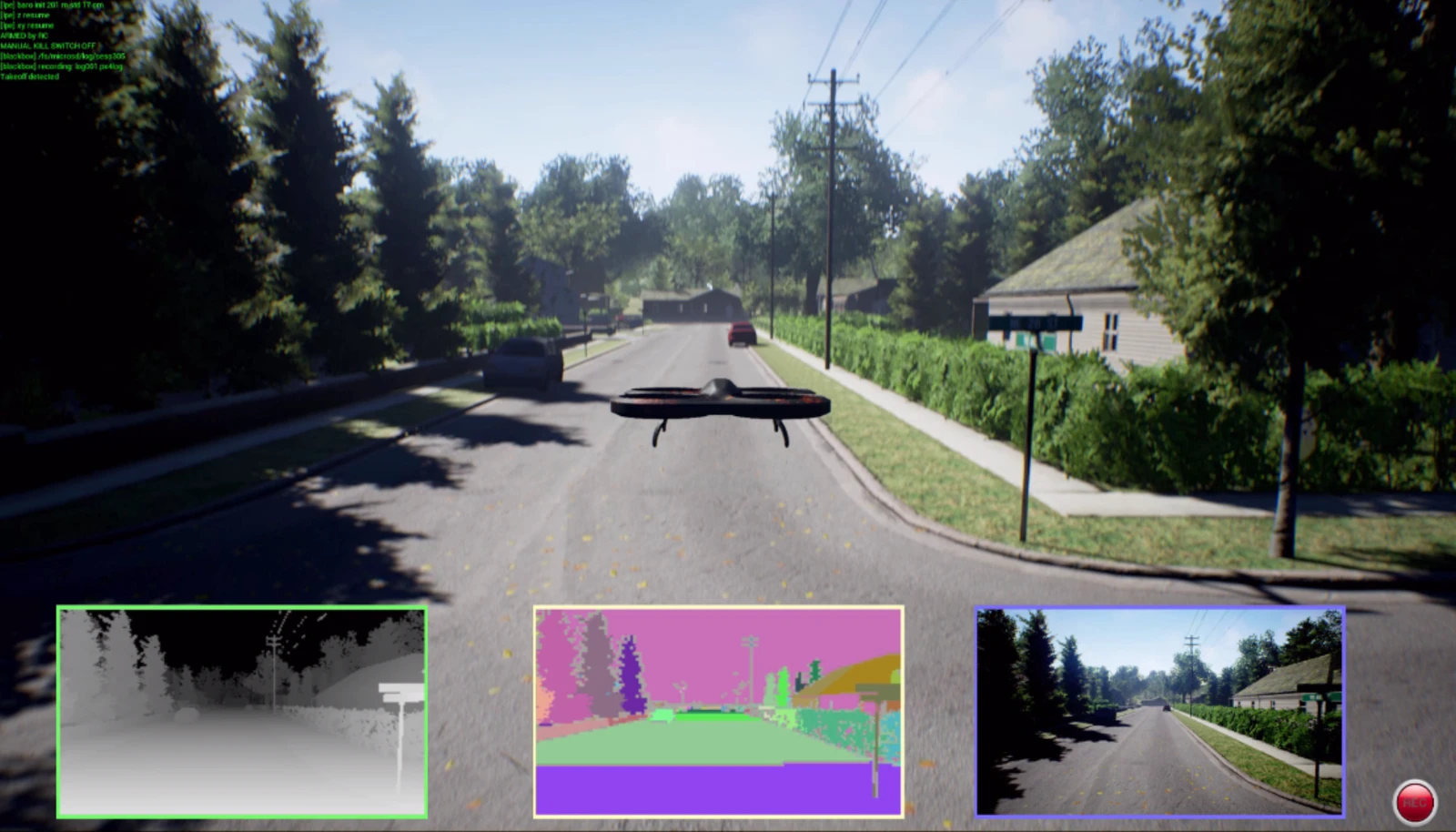

7.7 AirSim

AirSim simulates drones and vehicles and underlies some aerial VLN projects. Pin Unreal / AirSim and project-scene versions for reproduction. Moving to a community fork requires revalidating controls and evaluation behavior; it cannot be assumed to preserve the environment. See the original repository.

Mechanism and strengths: flight state, cameras, and actions support aerial route execution, altitude changes, and city-scale navigation. In VLN, language data and success evaluators are typically supplied by the research project built above it.

Limitations and selection: pose or waypoint calls differ in difficulty from flight under low-level control constraints. Document teleportation, speed limits, collision termination, and timeouts, and pin scene maps and engine versions.

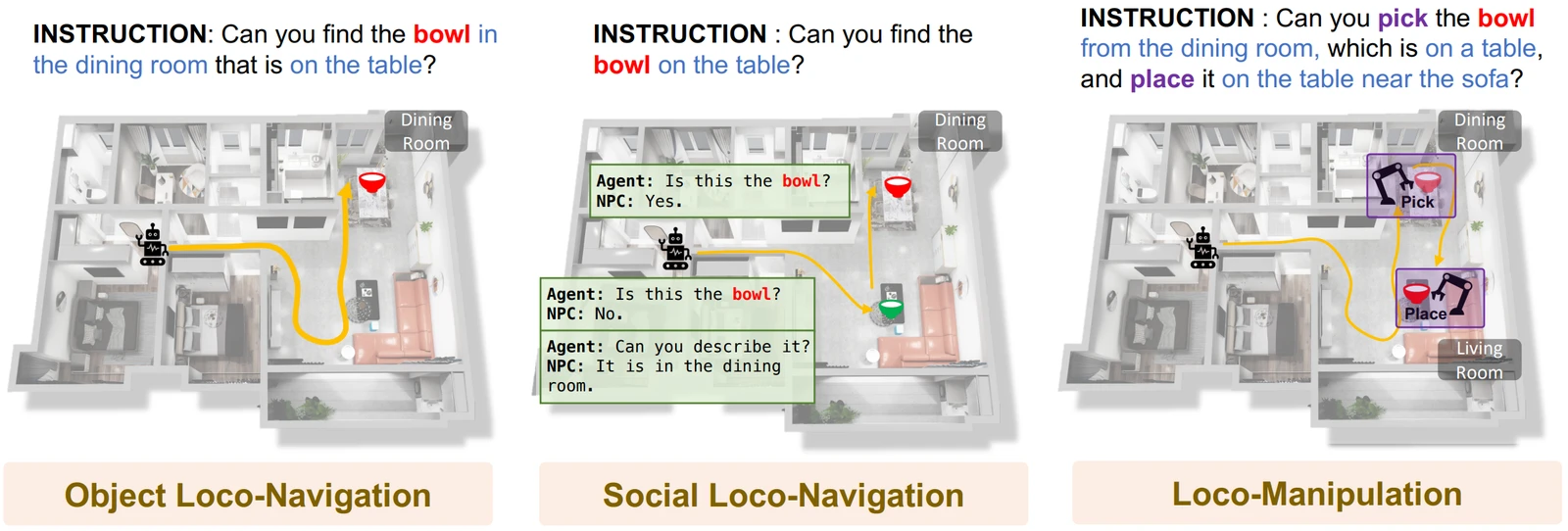

7.8 InternUtopia

InternUtopia organizes scenes, robots, and embodied tasks on Isaac Sim. At the time of review, its prerequisites listed Ubuntu 20.04 / 22.04 and Isaac Sim 4.5.0. Isaac Sim’s cross-platform support therefore does not establish Windows support for the entire InternUtopia stack. See the official prerequisites, accessed 2026-09-26.

Mechanism and strengths: a common environment framework integrates scenes, robots, and tasks, supporting comparison of high-level capabilities across embodiment settings. The selected task configuration and robot controller still determine each experiment.

Limitations and selection: framework support for a task family does not mean every robot-scene combination has been evaluated. Run the official minimal example to confirm reset, observations, execution, and success judgments before integrating your navigation policy.

7.9 Simulator comparison

7.10 Platform and simulator selection

7.10.1 Host operating system: Windows versus Linux

Check support for the complete research codebase before the underlying engine. Windows users can choose natively supported Isaac Sim / Isaac Lab; other projects should follow official Linux-host, container, or validated WSL configurations. Running Linux programs under WSL does not guarantee that EGL, Vulkan, CUDA, window systems, and simulation assets work without further setup.

7.10.2 Research task

Use the original task environment for reproduction, add morphology and contacts when studying dynamics, and add interactive objects when studying interaction. Tie each additional simulation capability to a research question and establish baselines for new variables. Avoid ranking platforms with fast/slow labels across unmatched hardware and scenes.

8. Metrics and evaluation

Navigation has at least four evaluation dimensions: goal completion, path cost, instruction fidelity, and execution reliability. Classic VLN has established metrics for the first three; the fourth needs robot- and scenario-specific definitions. No single score replaces all four.

Optimizing one dimension can conceal deterioration in another. SR alone may reward extensive trial-and-error exploration; SPL alone may reward shortcuts that ignore instructed detours; proximity at any point can hide poor stopping; contact-free simulation hides collisions, falls, and immobilization. Report metrics in groups that cover these dimensions.

flowchart TB
    Q["Four questions for one navigation episode"]

    subgraph D1["Goal completion"]
        SR["SR: endpoint success"]
        NE["NE: endpoint error"]
        OSR["OSR: ever entered the success region"]
    end

    subgraph D2["Path cost"]
        SPL["SPL: path-length-weighted success"]
        TL["TL: actual trajectory length"]
        ST["Steps or elapsed time"]
    end

    subgraph D3["Instruction fidelity"]
        CLS["CLS: coverage and length matching"]
        NDTW["nDTW: order-aware alignment"]
        SDTW["SDTW: success-weighted alignment"]
    end

    subgraph D4["Execution reliability"]
        CR["Collisions with environment or pedestrians"]
        FS["Falls and immobilization, e.g. VLN-PE FR / StR"]
        HI["Human interventions and end-to-end latency"]
    end

    Q --> D1
    Q --> D2
    Q --> D3
    Q --> D4

    style Q fill:#e7f5ff,stroke:#1971c2,stroke-width:2px
    style D1 fill:#f1f8ff,stroke:#339af0,stroke-width:2px
    style D2 fill:#f0fbf2,stroke:#40c057,stroke-width:2px
    style D3 fill:#fff8f0,stroke:#ff922b,stroke-width:2px
    style D4 fill:#fff5f5,stroke:#fa5252,stroke-width:2px

Definitions in the first three groups are relatively consistent across benchmarks. For the fourth, counting units, thresholds, and episode termination depend on the benchmark; see Section 8.4.

8.1 Fix the protocol before interpreting metrics

Record task and split, sensors and field of view, depth/pose/map access, action interface, stop and timeout rules, distance function, success threshold, extra training data, and inference budget. R2R graphs, Habitat navigable surfaces, and aerial scenes are different distance spaces.

8.1.1 Typical trajectories and their metric responses

These are illustrations for understanding metrics, not results from a particular paper. Assume an instruction requires visiting landmarks before reaching the endpoint:

8.1.2 Choosing metrics by setting

Route following needs both endpoint and path measures; goal search needs search success and target verification; dialogue tasks must specify whether active questions are allowed; physical robots need execution-failure measures. Use each task’s official success definition rather than applying a universal 3 m endpoint threshold.

The diagram helps choose metric groups. Multiple branches may apply: referring-expression navigation in a physical environment needs both target recognition and execution-safety evaluation.

flowchart TB
    Q["Which capability must the task validate?"]
    Q --> G["Reach a specified location"]
    Q --> R["Follow the required route"]
    Q --> O["Identify or manipulate a target"]
    Q --> E["Physical and social execution"]
    G --> GM["SR, NE, OSR<br/>SPL for travel efficiency"]
    R --> RM["CLS for soft coverage<br/>nDTW / SDTW for ordered alignment"]
    O --> OM["Navigation + target grounding<br/>or task postconditions"]
    E --> EM["Arrival + collisions / falls / violations<br/>Time and control latency"]
    classDef metric fill:#e8f1fb,stroke:#426a91,color:#18354f;
    class GM,RM,OM,EM metric;

Retain per-episode results after selecting metrics. Overall means can hide substantial degradation on long routes, particular languages or robots, or specific failure conditions.

8.1.3 Core metric overview

8.1.4 Metric discrepancies and diagnostic directions

These are hypotheses to test. Multiple mechanisms can produce the same discrepancy; it does not justify immediately concluding that a model lacks reasoning or merely memorizes.

8.2 Goal completion and localization accuracy

8.2.1 Success Rate (SR)

Let $S_i\in{0,1}$ be the official success indicator for episode $i$, over $N$ evaluation trajectories:

Success may require endpoint distance, an explicit stop, target visibility, or object recognition. Preserve these conditions in reporting. Whether timeout-truncated episodes count as success also depends on the evaluator.

8.2.2 Navigation Error (NE)

Let $x_i^{\mathrm{end}}$ be the terminal position, $g_i$ the goal, and $d$ the benchmark distance function:

Classic graph navigation generally uses shortest graph distance; continuous navigation commonly uses geodesic distance over navigable surfaces. Neither should universally be rewritten as Euclidean distance. If multiple goal positions are valid, explain how the goal set is handled. See the official RxR metric documentation.

8.2.3 Oracle Success Rate (OSR)

For tasks with a goal-distance threshold $\tau$, OSR checks whether the trajectory ever entered the success region:

Follow the official implementation for strict versus non-strict thresholds. OSR cannot replace an actual stopping policy: accidentally passing the goal can raise it. When SR and OSR share distance and sampling conventions, their gap can help diagnose stopping-related problems.

Teaching example: passing a goal differs from stopping correctly. Assume success depends only on distance to the goal at stopping, with a 3 m threshold and the same distance definition throughout.

flowchart LR
    A["Start"] --> B["1 m from goal during the route<br/>Inside success region"]
    B --> C["Keeps moving; ends 5 m from goal<br/>Stops here"]
    B -.-> D["Oracle success = 1"]
    C -.-> E["Success = 0"]
    classDef pass fill:#e4f2e8,stroke:#548565,color:#21452e;
    classDef fail fill:#fbe9e5,stroke:#b66b58,color:#612f25;
    class B,D pass;
    class C,E fail;

This gap motivates inspection of stopping, target recognition, and backtracking. High OSR alone does not prove accurate localization: the trajectory may pass the goal accidentally, or the model may never recognize that it has seen it.

8.3 Path efficiency and instruction fidelity

8.3.1 Success weighted by Path Length (SPL)

Let $l_i$ be the shortest feasible start-to-goal path length and $p_i$ the actual traveled length:

Compute the score per trajectory and then average; it is not SR multiplied by mean efficiency over all trajectories. Follow the benchmark implementation for degenerate cases such as zero lengths. See the original SPL evaluation recommendations.

For two trajectories, if one succeeds with efficiency 0.5 and the other fails, SR is 0.5 and SPL is 0.25. SPL measures travel efficiency; extra generated tokens, network waiting, or stationary computation time do not automatically enter its denominator.

Four trajectory examples: in one straight corridor, the shortest distance from start to the exact goal is 10 m, the success threshold is 3 m, and every agent explicitly stops. The diagram shows behavioral categories, not spatial scale.

flowchart TB
    S["Common start: shortest distance to exact goal is 10 m"]
    S --> A["Direct arrival<br/>Travel 10 m; endpoint error 0 m"]
    S --> B["Arrival after detour<br/>Travel 20 m; endpoint error 0 m"]
    S --> C["Stop inside success region<br/>Travel 8 m; endpoint error 2 m"]
    S --> D["Stop too early<br/>Travel 6.5 m; endpoint error 3.5 m"]
    A --> AS["Success; SPL = 1"]
    B --> BS["Success; SPL = 0.5"]
    C --> CS["Success; SPL = 1"]
    D --> DS["Failure; SPL = 0"]
    classDef pass fill:#e4f2e8,stroke:#548565,color:#21452e;
    classDef fail fill:#fbe9e5,stroke:#b66b58,color:#612f25;
    class AS,BS,CS pass;
    class DS fail;

Together, these four yield SR 0.75 and SPL 0.625. The third travels less than the shortest distance to the exact goal because it stops within the success region, not because it beats the shortest path in the same geometry. max caps efficiency at 1. If a benchmark defines $l_i$ to the goal region, recalculate according to that implementation.

SPL assigns zero to failures and an inverse-length penalty to successful but excessive travel. It does not require visiting every instructed landmark. When instructions require a detour, faithful execution can lower SPL, motivating path-fidelity metrics.

8.3.2 Coverage weighted by Length Score (CLS)

For reference path $R$ and predicted path $P$, define point-to-path distance as $d(r,P)=\min_{p\in P}d(r,p)$. CLS combines soft coverage with length matching:

Here $L$ denotes path length and $d_{th}$ is a distance scale. CLS encourages coverage of route nodes but imposes no explicit visit order; use nDTW to assess sequence. See the original CLS paper.

Two steps in the formula: PC measures how far reference locations are from anywhere on the traveled path; LS checks whether actual length is proportionate to the covered portion. Because point-to-path distance takes a minimum, PC alone does not check visit order.

flowchart TB
    R["Each reference-path node"] --> D["Nearest distance to predicted path"]
    D --> PC["Average exponentially decayed distances<br/>Soft coverage PC"]
    PC --> EPL["EPL = PC × reference-path length"]
    EPL --> LS["Compare EPL with actual length<br/>Length score LS"]
    PC --> C["CLS = PC × LS"]
    LS --> C
    classDef score fill:#e8f1fb,stroke:#426a91,color:#18354f;
    class PC,LS,C score;

PC values here are chosen for illustration, not measured from a route diagram; 0.5 does not mean exactly half the nodes were visited. Even when every reference point lies within $d_{th}$, PC need not approach 1: a point exactly $d_{th}$ away contributes only $e^{-1}\approx0.368$.

CLS can reveal arrival that skips parts of the reference route, but identical coverage sets can have different visit orders. This motivates DTW alignment below.

8.3.3 normalized Dynamic Time Warping (nDTW & SDTW)

DTW finds order-constrained path alignments while allowing different sample counts. Common normalized and success-weighted forms are:

Dataset nDTW is also calculated per episode and then averaged. Order alignment better captures route constraints than coverage alone, but still depends on reference quality. See the original nDTW paper.

Implementation limits: do not assume NE’s goal distance and DTW’s point-pair distance are identical. Continuous implementations also choose sampling, deduplication, and approximate-DTW procedures. Pin evaluator code rather than copying formulas alone. See the VLN-CE metric implementation.

Why not subtract corresponding steps directly? For reference A→B→C and prediction A→A→B→C, index-wise comparison mismatches B with A at the second step. DTW allows multiple samples to match one reference point while preserving order.

flowchart TB
    subgraph Ref["Reference path"]
        direction LR
        R1["A"] --> R2["B"] --> R3["C"]
    end
    subgraph Pred["Predicted path"]
        direction LR
        P1["A"] --> P2["A"] --> P3["B"] --> P4["C"]
    end
    R1 -. "Align" .-> P1
    R1 -. "Align" .-> P2
    R2 -. "Align" .-> P3
    R3 -. "Align" .-> P4

With exactly repeated positions in this example, alignment cost can be zero. Real displacement, sampling, and noise still affect DTW; it is not universally invariant to speed and sampling. A→C→B→C visits the same landmarks but generally cannot achieve the same zero-cost ordered alignment.

DTW’s accumulated cost can be expressed by this recurrence, where $D(a,b)$ is the minimum alignment cost for the two path prefixes, with standard DTW boundary initialization:

8.4 Embodied safety, physical interaction, and deployment metrics

8.4.1 Geometric obstacle avoidance and social safety

Collisions can be counted per action step, contact event, or episode, yielding different denominators. Define Collision Rate / Human Collision Rate explicitly and report completion alongside them, avoiding apparent safety from remaining stationary. Personal-space violations are also broader than physical contact.

8.4.2 Dynamic stability and irreversible failures

Record falls, immobilization, emergency stops, and manual resets separately. Specify pose or time thresholds, recovery budgets, and whether resets terminate an episode. Different embodiments have different failure modes; do not combine them into an unconditional embodied-success score.

8.4.3 System efficiency and real-time control

Report camera-to-action end-to-end latency, including mean and tail latency, hardware, batch size, resolution, history length, and model invocation mode. Also report control frequency, GPU memory, API/token costs, task time, and human interventions. A model’s forward-pass FPS is not the robot’s effective control frequency.

8.5 Evaluation protocols and their development

8.5.1 Val-Seen and Val-Unseen boundaries

Seen / Unseen usually split benchmark scenes to measure scene generalization within the same task. They do not guarantee that large-scale pretraining excluded related buildings, images, or derived assets, nor establish cross-robot, cross-language, or real-world generalization.

8.5.2 Fair comparison checklist

• Same inputs: camera count, field of view, depth, pose, and map access.
• Same task: data version, language subset, episodes, goals, and stopping criteria.
• Same execution: action space, controller, step/time budgets, sliding, and collision configuration.
• Transparent resources: extra training data, backbone, tool calls, search/retry counts, and compute budget.
• Inspectable statistics: success and total counts; repeated runs or confidence intervals for stochastic tasks, with sampling methods explained.

8.5.3 From leaderboard scores to reproducible evidence

Identify the paper version and result table first, then check the official evaluator. The VLN-CE repository has explicitly noted that SPL differences between a paper and leaderboard for the same baseline relate to hardware and Habitat builds. Protocols and implementations are themselves part of the experiment. See the official reproduction notes.

The companion paper readings help locate methods and original results. Until the above checks are completed, scores from different articles or versions are reading pointers, not evidence for causal claims of architectural superiority.

9. Learning resources and frameworks

A useful learning order is classic tasks → continuous environments → foundation models → real deployment. Reproduce R2R / VLN-CE baselines and learn Habitat episodes, sensors, and metrics; then study streaming VLA, fast-slow systems, and spatial memory; finally move to agents, world models, and real robots. Starting with the latest large model can obscure differences caused by protocols and action interfaces.

Companion resources on this site:

• VLN Papers: Instruction Following and Leaderboards: detailed readings, performance, and open-source status organized by task setting.
• Spatial Intelligence Survey (Chinese only): foundations of 3D representations, maps, and spatial reasoning.
• World Models Survey (Chinese only): predictive models, world-action models, and data engines.
• Traditional Robot Navigation Survey (Chinese only): SLAM, global/local planning, and controllers, complementing fast systems in Section 3.3 and deployment metrics in Section 8.4.
• VLA Survey (Chinese only): vision-language-action training paradigms and action-interface design.

VLN-Survey-with-Foundation-Models

• Type: GitHub resource repository.
• Focus: VLN in the LLM/VLM era (2023–present), with ongoing paper updates.
• Audience: researchers studying how large models are changing VLN.

Awesome-Embodied-AI

• Type: full-stack resource collection.
• Focus: the embodied-intelligence stack, including VLN, VLA, and robot manipulation.
• Audience: researchers seeking a systematic overview of embodied AI.

Embodied-AI-Guide

• Type: introductory tutorials and practical guidance.
• Focus: code exercises, paper explanations, and learning paths.
• Audience: beginners or readers needing a structured learning path.

Vision-and-Language Navigation: A Survey of Tasks, Methods, and Future Directions

• Type: survey paper (Gu et al., ACL 2022).
• Focus: the development of VLN, covering tasks, methods, and evaluation from 2018–2022.
• Audience: researchers seeking a broad historical view of VLN.

Vision-and-Language Navigation Today and Tomorrow: A Survey in the Era of Foundation Models

• Type: survey paper (Zhang et al., 2024), accompanying the VLN-Survey-with-Foundation-Models repository above.
• Focus: reorganizes VLN around foundation models and discusses convergence with world models, human models, and VLA.
• Audience: researchers approaching VLN from the large-model perspective.

9.1 Conferences and workshops

Embodied-intelligence venues:

• Embodied AI Workshop — a CVPR workshop featuring recent directions and challenges.
• CoRL (Conference on Robot Learning) — a major venue for VLN transfer to real robots.
• RSS (Robotics: Science and Systems) — a leading robotics conference with emphasis on sim-to-real.

Common conference emphases:

9.2 From paper to experiment: a reproducible workflow

This survey proposes the following workflow for turning methods from the companion readings into comparable systems.

Completed inference does not guarantee a still-valid action. Camera capture, encoding, generation, communication, and actuation jointly determine loop latency. When the slow system returns a subgoal, the robot may already have left the relevant viewpoint. Define when old goals expire, when to replan, and what the fast system does while waiting. Report measurement boundaries, hardware, batch sizes, and control frequency alongside model FPS.

Choose methods by tracing back from failure evidence. Repeated visits on long routes suggest checking memory and map updates; reaching the goal vicinity without success suggests stopping and target verification; correct semantic goals with frequent collisions suggest reachability, action interfaces, and controllers. Metric gaps provide clues; trajectory replay and controlled experiments must establish causes.

9.3 Established evidence, open questions, and research judgments

The reviewed work supports several conclusions with explicit scope: R4R and path metrics show the need to measure arrival and instruction fidelity separately; ETPNav and DualVLN demonstrate concrete planning/execution divisions; ScaleVLN establishes training resources as an important performance variable; VLN-PE provides experimental evidence that visual and physical gaps affect navigation. These findings come from path-following research, continuous graph planning, dual-system design, data scaling, and physical embodiment evaluation. They do not establish one optimal architecture for every task.

The table proposes open questions and evaluation approaches based on that evidence. These are research judgments, not a field-wide consensus.

This survey recommends first building replayable, attributable failure analysis, then choosing model changes. If local execution dominates failures, a larger language model may not be the most direct remedy. If stopping and route constraints dominate, mean SR alone may hide useful improvements. Progress should explain under which conditions a failure class was reduced and at what cost.

9.4 Scope and maintenance

This is a problem-oriented narrative survey covering route-instruction navigation and related goal-navigation, interaction, and embodied-control work. It is not a systematic review with exhaustive search and exclusion procedures. Boundaries are stated where other tasks inform mechanisms; general VLA and manipulation papers are not treated as direct performance evidence for standard VLN.

The most recent source verification date is 2026-09-26, focusing on data-counting conventions, platform support, core metrics, and cross-paper design differences. Changeable data are tied to paper versions or data-card sources; entries without a confirmed independent protocol retain uncertainty notes. Other work is available through companion paper readings. This survey does not claim to have independently reproduced every experiment or verified all leaderboard results.

10. References

Detailed paper readings: see VLN Papers: Instruction Following and VLN Papers: Goal Navigation and Extensions (Chinese only). This section lists datasets, methods, simulators, and surveys directly discussed above, grouped by topic with continuous numbering. For preprint publication status and leaderboard values, consult paper homepages and the companion readings.

10.1 Datasets and benchmarks

10.1.1 Instruction-oriented and continuous-environment datasets

1. R2R — Anderson et al., Vision-and-Language Navigation: Interpreting Visually-Grounded Navigation Instructions in Real Environments, CVPR 2018. [Paper]
2. R4R — Jain et al., Stay on the Path: Instruction Fidelity in Vision-and-Language Navigation, ACL 2019. [Paper]
3. RxR — Ku et al., Room-Across-Room: Multilingual Vision-and-Language Navigation with Dense Spatiotemporal Grounding, EMNLP 2020. [Paper]
4. VLN-CE — Krantz et al., Beyond the Nav-Graph: Vision-and-Language Navigation in Continuous Environments, ECCV 2020. [Paper]
5. RxR-CE — RxR adapted to continuous Habitat environments, released with VLN-CE for the RxR-Habitat challenge (CVPR Embodied AI Workshop). [Code]
6. ScaleVLN — Wang et al., Scaling Data Generation in Vision-and-Language Navigation, ICCV 2023. [Paper]
7. VLN-PE — Wang et al., Rethinking the Embodied Gap in Vision-and-Language Navigation: A Holistic Study of Physical and Visual Disparities, ICCV 2025. [Paper]
8. InternData-N1 — InternRobotics (Shanghai AI Laboratory), large-scale synthetic navigation data for InternVLA-N1 in LeRobot format, 2025. [Dataset] [Code]
9. VLNVerse — Lin et al., VLNVerse: A Benchmark for Vision-Language Navigation with Versatile, Embodied, Realistic Simulation and Evaluation, arXiv 2025. [Paper]

10.1.2 Goal-oriented and long-horizon planning datasets

1. REVERIE — Qi et al., REVERIE: Remote Embodied Visual Referring Expression in Real Indoor Environments, CVPR 2020. [Paper]
2. REVERIE-CE — A family of continuous-environment adaptations without a unified official protocol. Cite the specific paper’s conversion implementation; see Section 6.3.2.
3. SOON — Zhu et al., SOON: Scenario Oriented Object Navigation with Graph-based Exploration, CVPR 2021. [Paper]
4. LHPR-VLN — Song et al., Towards Long-Horizon Vision-Language Navigation: Platform, Benchmark and Method, CVPR 2025. [Paper]

10.1.3 Dialog-based and socially aware datasets

1. CVDN — Thomason et al., Vision-and-Dialog Navigation, CoRL 2019. [Paper]
2. TEACh — Padmakumar et al., TEACh: Task-driven Embodied Agents that Chat, AAAI 2022. [Paper]
3. HA-VLN — Li et al., Human-Aware Vision-and-Language Navigation: Bridging Simulation to Reality with Dynamic Human Interactions, NeurIPS 2024 Datasets and Benchmarks Track. [Paper]
4. HA-VLN 2.0 — Dong et al., HA-VLN 2.0: An Open Benchmark and Leaderboard for Human-Aware Navigation in Discrete and Continuous Environments, IROS 2026 (first posted to arXiv in 2025; checked v5). [Paper]

10.1.4 Demand-oriented, outdoor, and aerial datasets

1. DDN — Wang et al., Find What You Want: Learning Demand-conditioned Object Attribute Space for Demand-driven Navigation, NeurIPS 2023. [Paper]
2. Touchdown — Chen et al., Touchdown: Natural Language Navigation and Spatial Reasoning in Visual Street Environments, CVPR 2019. [Paper]
3. StreetLearn — Mirowski et al., The StreetLearn Environment and Dataset, arXiv 2019. [Paper]
4. AerialVLN — Liu et al., AerialVLN: Vision-and-Language Navigation for UAVs, ICCV 2023. [Paper]
5. CityNav — Lee et al., CityNav: A Large-Scale Dataset for Real-World Aerial Navigation, ICCV 2025（arXiv 2024）. [Paper]
6. OpenFly — Gao et al., OpenFly: A Comprehensive Platform for Aerial Vision-Language Navigation, ICLR 2026 (first posted to arXiv in 2025; checked v7). [Paper]

10.2 Core models and methods

10.2.1 Cross-modal alignment and pretraining

1. PREVALENT — Hao et al., Towards Learning a Generic Agent for Vision-and-Language Navigation via Pre-training, CVPR 2020. [Paper]
2. VLN-BERT — Majumdar et al., Improving Vision-and-Language Navigation with Image-Text Pairs from the Web, ECCV 2020. [Paper]
3. Recurrent VLN-BERT — Hong et al., A Recurrent Vision-and-Language BERT for Navigation, CVPR 2021. [Paper]
4. HAMT — Chen et al., History Aware Multimodal Transformer for Vision-and-Language Navigation, NeurIPS 2021. [Paper]

10.2.2 Topological graphs, semantic maps, and spatial memory

1. DUET — Chen et al., Think Global, Act Local: Dual-scale Graph Transformer for Vision-and-Language Navigation, CVPR 2022. [Paper]
2. ETPNav — An et al., ETPNav: Evolving Topological Planning for Vision-Language Navigation in Continuous Environments, IEEE TPAMI 2024. [Paper]
3. LagMemo — Zhou et al., LagMemo: Language 3D Gaussian Splatting Memory for Multi-modal Open-vocabulary Multi-goal Visual Navigation, arXiv 2025. [Paper]

10.2.3 Fast-slow dual systems and navigation foundation models

1. DualVLN — Wei et al., Ground Slow, Move Fast: A Dual-System Foundation Model for Generalizable Vision-and-Language Navigation, arXiv 2025. [Paper]
2. NaVILA — Cheng et al., NaVILA: Legged Robot Vision-Language-Action Model for Navigation, RSS 2025. [Paper]
3. NavDP — Cai et al., NavDP: Learning Sim-to-Real Navigation Diffusion Policy with Privileged Information Guidance, arXiv 2025. [Paper]
4. InternVLA-N1 — InternRobotics (Shanghai AI Laboratory), InternVLA-N1: An Open Dual-System Vision-Language Navigation Foundation Model with Learned Latent Plans, 2025. [Code]
5. OmniNav — Xue et al., OmniNav: A Unified Framework for Prospective Exploration and Visual-Language Navigation, arXiv 2025. [Paper]
6. Qwen-RobotNav — Zhang et al., Qwen-RobotNav Technical Report: A Scalable Navigation Model Designed for an Agentic Navigation System, arXiv 2026. [Paper]

10.2.4 End-to-end video VLMs and continuous-environment policies

1. Waypoint Models — Krantz et al., Waypoint Models for Instruction-guided Navigation in Continuous Environments, ICCV 2021. [Paper]
2. NaVid — Zhang et al., NaVid: Video-based VLM Plans the Next Step for Vision-and-Language Navigation, RSS 2024. [Paper]
3. StreamVLN — Wei et al., StreamVLN: Streaming Vision-and-Language Navigation via SlowFast Context Modeling, ICRA 2026 (first posted to arXiv in 2025; checked v2). [Paper]

10.2.5 Low-level visual navigation policies

1. DD-PPO — Wijmans et al., DD-PPO: Learning Near-Perfect PointGoal Navigators from 2.5 Billion Frames, ICLR 2020. [Paper]
2. GNM — Shah et al., GNM: A General Navigation Model to Drive Any Robot, ICRA 2023. [Paper]
3. ViNT — Shah et al., ViNT: A Foundation Model for Visual Navigation, CoRL 2023. [Paper]
4. NoMaD — Sridhar et al., NoMaD: Goal Masked Diffusion Policies for Navigation and Exploration, ICRA 2024. [Paper]
5. ViPlanner — Roth et al., ViPlanner: Visual Semantic Imperative Learning for Local Navigation, ICRA 2024. [Paper]

10.2.6 World models and world-action models

1. Navigation World Models (NWM) — Bar et al., Navigation World Models, CVPR 2025. [Paper] [Project]
2. Dynam3D — Wang et al., Dynam3D: Dynamic Layered 3D Tokens Empower VLM for Vision-and-Language Navigation, NeurIPS 2025. [Paper]
3. WMNav — Nie et al., WMNav: Integrating Vision-Language Models into World Models for Object Goal Navigation, IROS 2025. [Paper] [Project]
4. AstraNav-World — Chen et al., AstraNav-World: World Model for Foresight Control and Consistency, arXiv 2025. [Paper]
5. NavWAM — Azuma et al., NavWAM: A Navigation World Action Model for Goal-Conditioned Visual Navigation, arXiv 2026. [Paper]
6. DreamVLA — Zhang et al., DreamVLA: A Vision-Language-Action Model Dreamed with Comprehensive World Knowledge, NeurIPS 2025. [Paper] [Project]
7. NVIDIA Cosmos — NVIDIA, Cosmos World Foundation Model Platform for Physical AI, arXiv 2025. [Paper] [Project]

10.2.7 Agents, self-evolution, and general VLA

1. AgentVLN — Xin et al., AgentVLN: Towards Agentic Vision-and-Language Navigation, arXiv 2026. [Paper] [Code]
2. SE-VLN — Dong et al., SE-VLN: A Self-Evolving Vision-Language Navigation Framework Based on Multimodal Large Language Models, arXiv 2025. [Paper]
3. RT-2 — Brohan et al., RT-2: Vision-Language-Action Models Transfer Web Knowledge to Robotic Control, CoRL 2023. [Paper]
4. OpenVLA — Kim et al., OpenVLA: An Open-Source Vision-Language-Action Model, CoRL 2024. [Paper]

10.3 Simulators and scene assets

1. Matterport3D Simulator — Anderson et al., CVPR 2018 (released with R2R). [GitHub]
2. Habitat — Savva et al., Habitat: A Platform for Embodied AI Research, ICCV 2019 [Paper]；Szot et al., Habitat 2.0: Training Home Assistants to Rearrange their Habitat, NeurIPS 2021 [Paper]；Puig et al., Habitat 3.0: A Co-Habitat for Humans, Avatars and Robots, ICLR 2024 [Paper]. [GitHub]
3. AI2-THOR / ProcTHOR — Kolve et al., AI2-THOR: An Interactive 3D Environment for Visual AI, arXiv 2017 [Paper]；Deitke et al., ProcTHOR: Large-Scale Embodied AI Using Procedural Generation, NeurIPS 2022 [Paper]. [Website]
4. Gibson / iGibson / OmniGibson — Xia et al., Gibson Env: Real-World Perception for Embodied Agents, CVPR 2018 [Paper]; Li et al., iGibson 2.0: Object-Centric Simulation for Robot Learning of Everyday Household Tasks, CoRL 2021 [Paper]; Li et al., BEHAVIOR-1K, CoRL 2022 (extended arXiv version, 2024) [Paper]. [GitHub]
5. AirSim — Shah et al., AirSim: High-Fidelity Visual and Physical Simulation for Autonomous Vehicles, FSR 2017. [GitHub] (see repository notes for maintenance and compatibility) / [Colosseum]
6. Isaac Sim / Isaac Lab — NVIDIA; Mittal et al., Orbit: A Unified Simulation Framework for Interactive Robot Learning Environments (predecessor of Isaac Lab), IEEE RA-L 2023 [Paper]. [Docs]
7. MuJoCo / MJX — Todorov et al., MuJoCo: A Physics Engine for Model-based Control, IROS 2012; maintained by Google DeepMind. [GitHub] / [Docs]
8. InternUtopia (GRUtopia) — Wang et al., GRUtopia: Dream General Robots in a City at Scale, arXiv 2024. [Paper] [GitHub]

10.4 Survey papers

1. Gu et al., Vision-and-Language Navigation: A Survey of Tasks, Methods, and Future Directions, ACL 2022. [Paper]
2. Zhang et al., Vision-and-Language Navigation Today and Tomorrow: A Survey in the Era of Foundation Models, arXiv 2024. [Paper] [GitHub]
